Mealstream Ovens Pt. No. 32Z3403 Issue 16
Page 42
You will need:
A Digital Multi-meter (D.M.M.)
1. The oven isolate from the electrical supply.
2. Remove the Logic Assembly from the Control Panel Housing.
3. Unplug the membrane “tail” from the Logic PCB Assembly.
4. Using a D.M.M., check for continuity between the correct terminals when the pads are
pressed.
5. When the panel has been tested, re-assemble and re-test the control circuit.
1 10

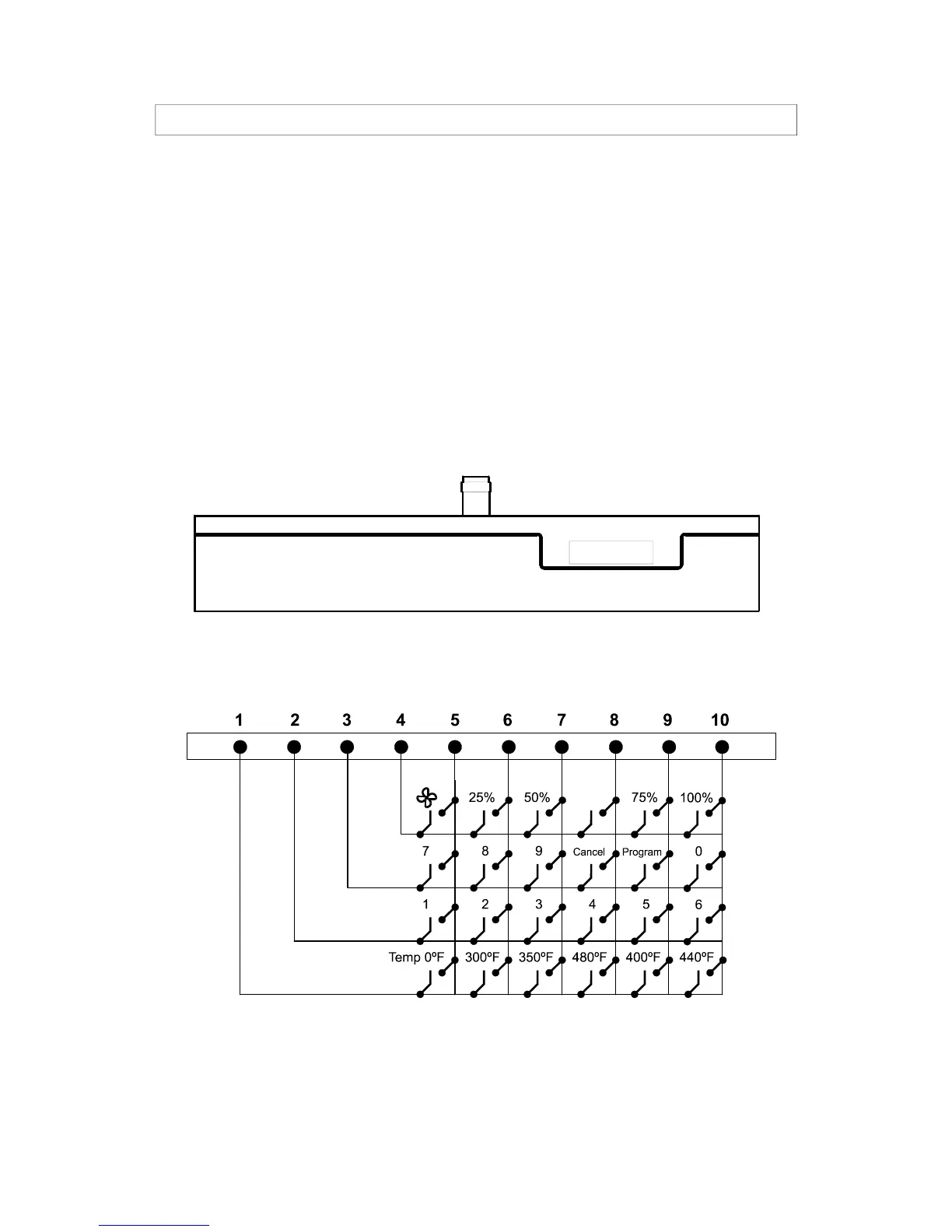

PROCEDURE FOR TESTING MEMBRANE PANEL CIRCUIT
Mealstream 501 US
