Mealstream Ovens Pt. No. 32Z3403 Issue 16
Page 12
No
Description
208V
240V
64
Hot air
moto
r a
ssembl
y
10C0192
10C0192
65
Capacitor (mot
or start ) 6μF
30Z1148
30Z1148
88
Overheat Sa
fety
Therm
osta
t
30Z1024
30Z1024
94
Hot Air motor Res
istor Assy
N/A
11C0341
104
Twin Blower Resistor Assy
N/A
11C0477

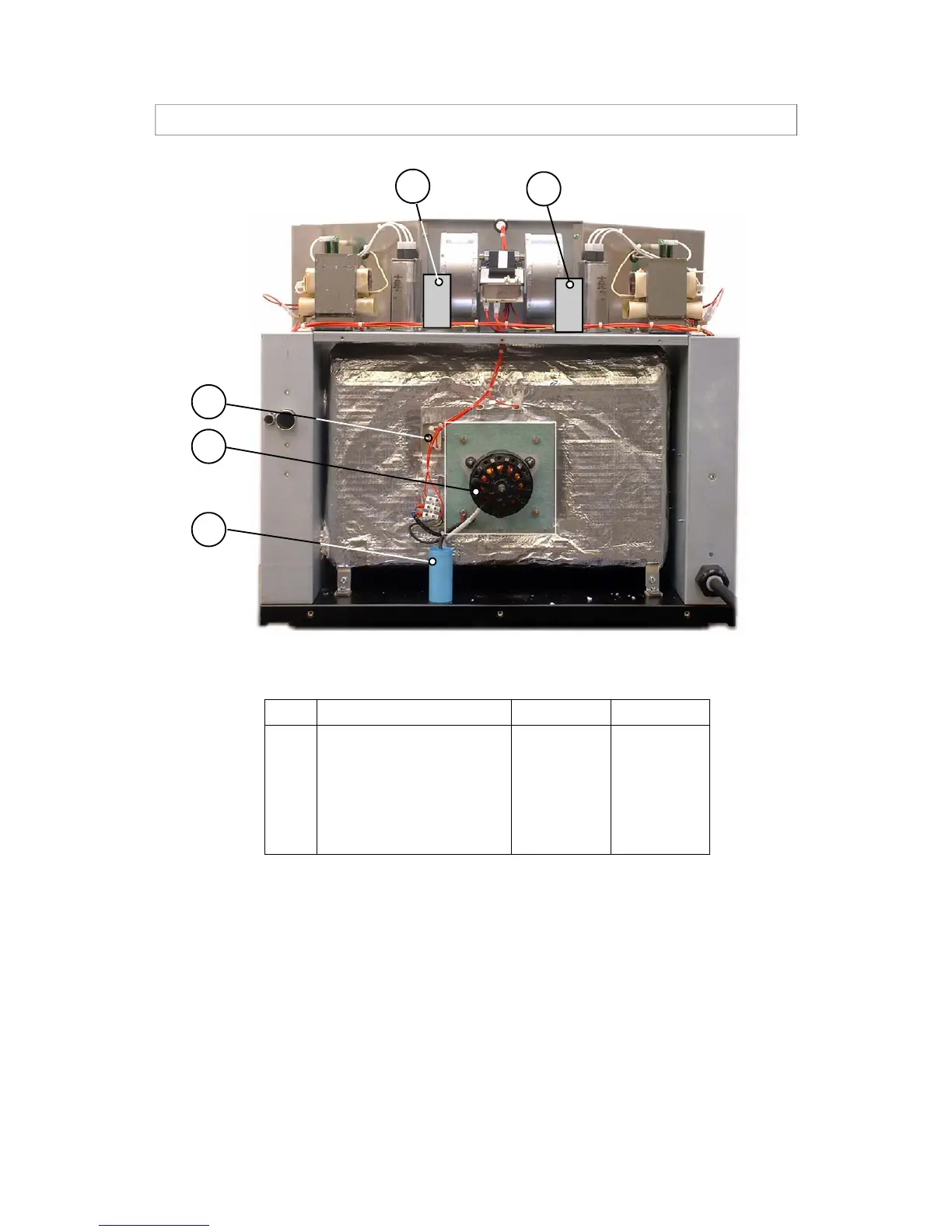

Back view
64
65
88
94
104
PRINCIPAL COMPONENTS
11
13
Table of Contents
Table of Contents
2
Microwave Safety Precautions
3
Safety Code
4
Product Specifications
5
Installation Instructions
6
Main Features
7
Main Features
8
Principal Components: LHS
9
Principal Components: RHS
10
Principal Components: Top
11
Principal Components: Back View
12
Principal Components: Door & Cavity Roof
13
Principal Components: External Parts & Accessories
14
Principal Components: Cavity Parts
15
Principal Components: Electronic Control Panel Assembly
15
Principal Components: Tim Hortons Control Panels
16
PRINCIPAL COMPONENTS ( Not Shown in Main Views )
17
Principal Components: Input Wiring Details
18
Principal Components: Part No. Identification Charts
19
Procedure for Microwave Leakage Test
22
Procedure for Power Output Measurement
24
Procedures for Principal Component Tests
25
Procedures for Principal Component Tests
26
Procedure for Door Interlock Adjustment and Test
27
Procedure for Building and Fitting the Door
30
Procedure for Replacing Door Seal Assembly
35
Procedure for Removing Shelf Runners & Element Cover
37
Procedure for Replacing Heater Element
38
Procedure for Replacing Hot Air Motor Assembly
39
Procedure for Replacing Magnetron Assembly
40
Procedure for Testing Membrane Panel Circuit
42
Procedure for Testing Membrane Panel Circuit
43
Circuit Diagrams
44
Error Codes and Diagnostics
45
Engineering Mode Programs
46
Appendix 1: Test Procedure for Tim Hortons
46
Appendix 2: Menukey® Download Procedure
47
Appendix 3: Temperature Sensor Resistance Data
48
Mealstream 501 Cleaning
49
Appendix 4: Cleaning Procedure
49
Appendix 5: Hot Air Motor Upgrade
50
Appendix 6: Recommended Spares List
51
Appendix 7: Door Stop & Adjustable Microswitch Bracket
52
Appendix 8: Door Arm Guide
53
Manual Corrections and Modifications
54
