Garland Mealstream CTM3 User Manual

Mealstream Ovens Pt. No. 32Z3403 Issue 16
Page 15
No Description 208V 240V
29 On/Off Switch 30Z0503 30Z0503
30 Control Panel Assy with Menukey
(except Tim Hortons)
11C0379 11C0379
31 Logic Board (except Tim Hortons) 11C0377 11C0377
32 Relay Board (except Tim Hortons) 11C0316 11C0212
33 AC Ribbon connector (6 way) 11M0116 11M0116
73 MenuKey Assembly 10C0148 10C0148
125 PCB standoff 2243033 2243033
34 DC Ribbon connector (10 way) 11M0360 11M0360

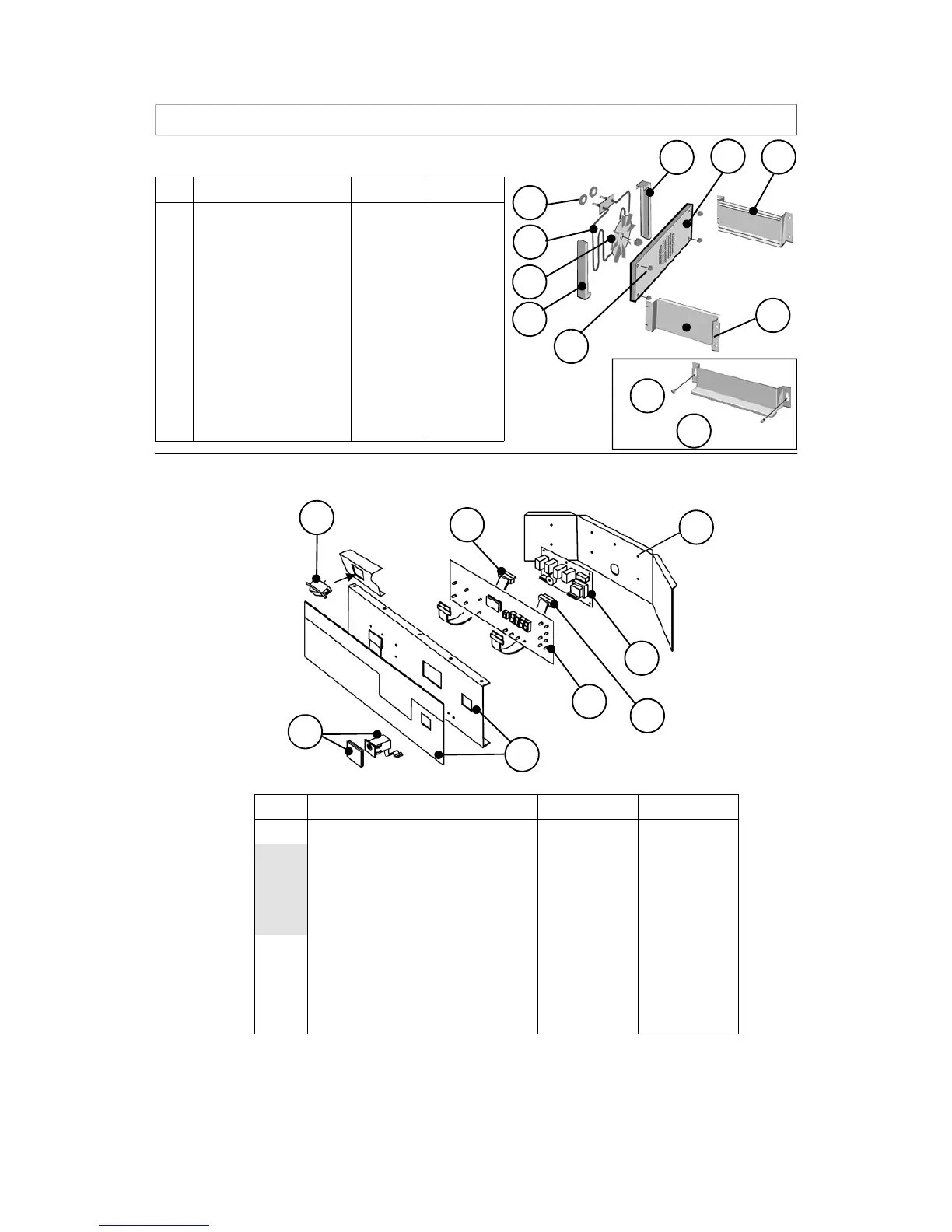

Electronic Control Panel Assembly
Tim Hortons
See page 16
PRINCIPAL COMPONENTS
Control Panel Assembly on ovens manufactured before February 2004
Control panels now supplied are for the new style casework and not compatible with older models.
When replacing the control panel assembly remove the top trim/On-Off switch metal panel from the
existing control panel and substitute this for the top trim on the replacement unit.
32
31
33
34
29
30
73
No Description 208V 240V
57 Mesh washer 31Z5044 31Z5044
68 Heater element 40C0949 40C0948
69 Heater element
cover plate
790047 790047
70 Baffle 11C0311 11C0311
85 Dome Nut 80X7025 80X7025
115 Shelf Support
Tim Hortons
10C0174 10C0174
124 Shelf support fixing bolt 80T7133 80T7133
92 Shelf Support (Garland) 40C0950 40C0950
102 Hot Air Impeller 10C0236 10C0236
Heater Element and Cavity parts
115
Tim Hortons
69
57
68
70
70
92
92
102
85
125
124
