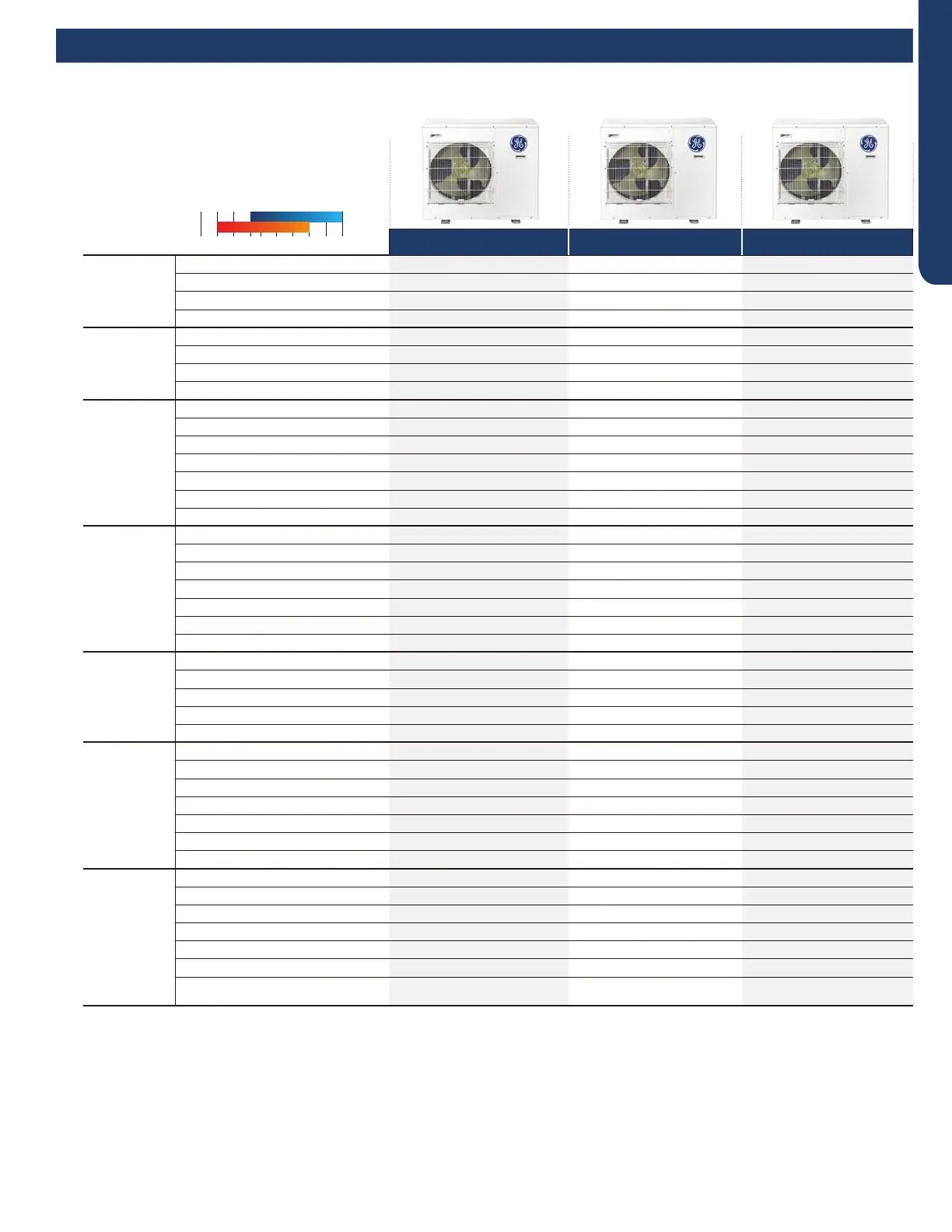

Specifications
ASH220NCDWA ASH324NCDWA ASH436NCDWA
Cooling
Non-Ducted
Rated Capacity Btu/hr 18,100 22,000 34,000
Capacity Range Btu/hr 7000-20000 6000-23600 6000-38000
Rated Power Input W 1448 1760 2,740
SEER/ EER 17/12.5 18.5/12.5 20 /12.5
Cooling Ducted
Rated Capacity Btu/hr 18,100 21,000 34,400
Capacity Range Btu/hr 6000-19000 6000-22300 6000-37000
Rated Power Input W 1724 2000 2,740
SEER/EER 15/10.5 15/10.5 17.00 /10.00
Heating
Non-Ducted
Rated Heating Capacity 47°F Btu/hr 20,000 24,000 36,000
Heating Capacity Range Btu/hr 8000-23000 8000-30600 8000-39000
Rated Power Input W 1504 1572 2,710
HSPF 10.5 10.5 10.5
COP @ 5°F 2.0 2.0 2.0
Max. Heating Capacity 5°F Btu/hr 23000 24000 36,000
Max. Heating Capacity -15°F Btu/hr 17000 18000 25,000
Heating Ducted
Rated Heating Capacity 47°F Btu/hr 20,000 22,000 35,000
Heating Capacity Range Btu/hr 8000-21000 8000-28600 8000-39000
Rated Power Input W 2255 2230 2710
COP/ COP @ 5°F 2.94/1.9 3/1.9 2.64/1.9
HSPF 9.6 9.3 10.5
Max. Heating Capacity 5°F Btu/hr 19000 20000 35,000
Max. Heating Capacity -15°F Btu/hr 15000 16000 25,200
Power Supply
Voltage, Cycle, Phase V/Hz/- 208-230/60/1 208-230/60/1 208-230/60/1
Wire Size between ID and OD 14/4AWGStranded 14/4AWGStranded 14/4AWGStranded
Compressor Type DC Inverter Driven Rotary DC Inverter Driven Rotary DC Inverter Driven Rotary
Maximum Fuse Size A 25 25 40
Minimum Circuit Amp A 15 16 30
Outdoor Unit
Outdoor Fan Speed RPM 300~900 300~900 300~900
OutdoorNoiseLeveldB 56 56 55
Dimension: Height in (mm) 33.1(840) 33.1(840) 38.0 (965)
Dimension: Width in (mm) 37.3(948) 37.3(948) 37.4(950)
Dimension: Depth in (mm) 13.4(340) 13.4(340) 14.6(370)
Weight(Ship/Net)-lbs(kg) 202.3/185.6 (91.7/84.2) 205.9/189.5 (93.4/85.9) 241/221 (109.7/100.6)
Connectible Indoor unit quantity 2 2 or 3 2 3 or 4
Refrigerant Lines
Connections Flare Flare Flare
Liquid O.D. in 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4
Suction O.D. in 3/8 3/8 3/8 3/8 1/2 3/8 3/8 3/8 1/2
Factory Charge Oz 99 99 113
Maximum Line Length Ft / m 164/50 196/60 230/70
Maximum Height Ft / m 50/15 50/15 50/15
Maximum Line Length for each individual
indoor unit Ft / m
82/25 82/25 82/25
2 Zones 3 Zones 4 Zones
Compressor Type:
DC Inverter Driven Rotary
Voltage/Cycle/Phase:
208-230/60/1
Operating Range (
O
F):
-22 1151450-4
-15
Cooling
Heating
75
Outdoor Units
