INTRODUCTION
ENGLISH
A-5

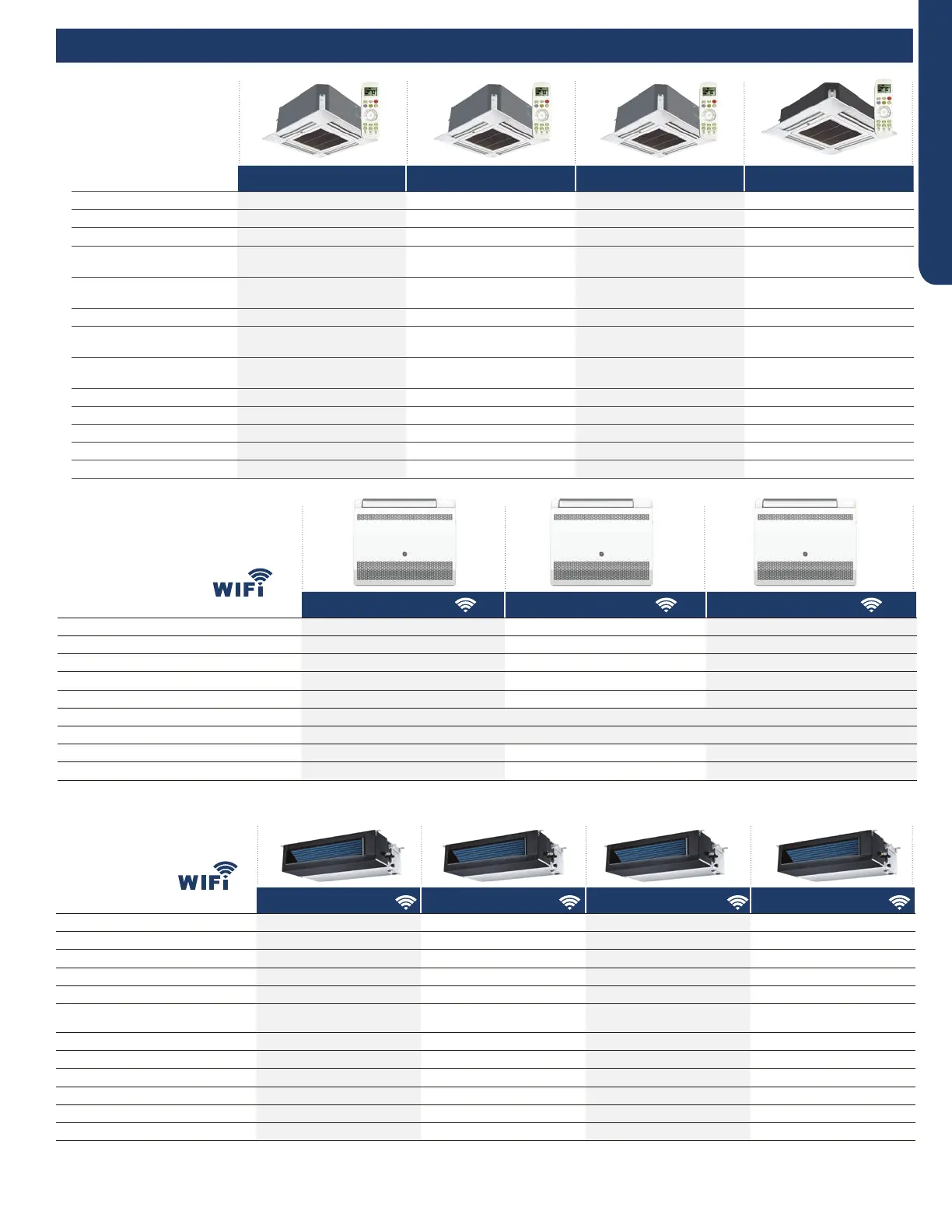

Specifications
AB09SC2VH(-) AB12SC2VH(-) AB18SC2VH(-) AL24LP2VH(-)
Rated Cooling Capacity Btu/hr 9,000 12,000 18,000 24200
Rated Heating Capacity Btu/hr 10,000 13,000 19,000 27300
Voltage, Cycle, Phase V/Hz/- 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1
AirowCFM
(Turbo/H/M/L/Quiet)
410/365/305/265/205 410/365/305/265/205 470/410/365/295/252 740/630/480/400
Indoor Sound dB
(Turbo/H/M/L/Quiet)
42/40/36/32/25 42/40/36/32/25 45/42/40/36/32 38/35/32/29
GrilleModel PB-700IB PB-700IB PB-700IB PB-950NB
Chassis Dimension:
HxWxD in (mm)
10 1/4 x 22 7/16 x 2 3/8
(260 x 570 x 570)
10 1/4 x 22 7/16 x 2 3/8
(260 x 570 x 570)
10 1/4 x 22 7/16 x 2 3/8
(260 x 570 x 570)
9 5/8 x 33 1/8 x 33 1/8 (246 x 840
x840)
GrilleDimension:HxWxDin(mm)
2 3/8 x 27 9/16 x 27 9/16
(60 x 700 x 700)
2 3/8 x 27 9/16 x 27 9/16
(60 x 700 x 700)
2 3/8 x 27 9/16 x 27 9/16
(60 x 700 x 700)
2 x 3 1/8 x 3 1/8
(50 x 950 x 950)
Weight(Ship/Net)-lbs(kg) 46.3/37.5 (21/17) 46.3/37.5 (21/17) 46.3/37.5 (21/17) 68.4/79.4 (31/36)
Liquid / Suction O.D. in 1/4 3/8 1/4 3/8 1/4 1/2 3/8 5/8
Drainpipe Size O.D. in 1 1/4 1 1/4 1 1/4 1
Condensate Pump Standard Standard Standard Standard
Max. Drain-Lift height in(mm) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700) 47 1/4(1200)
Cassette Indoor
USYF09UCDWA USYF12UCDWA USYF18UCDWA
Rated Cooling Capacity Btu/hr 9,000 12,000 15,000
Rated Heating Capacity Btu/hr 10,000 13,000 18,000
Voltage, Cycle, Phase V/Hz/- 208-230/60/1 208-230/60/1 208-230/60/1
Airow(Turbo/High/Med/Low/Quiet)CFM 264/235/205/176/147 294/264//205/176/147 341/311/282/252/223
Indoor Sound Level dB (Turbo/High/Med/Low/Quiet) 40/32/25/20 42/34/26/21 46/37/33/28
Chassis Dimension: HxWxD in (mm) 23.6/27.5/8.3 (600/700/210)
Weight(Ship/Net)-lbs(kg) 36/40 (16.5/18.5)
Liquid / Suction O.D. in 1/4 3/8 1/4 3/8 1/4 1/2
Drainpipe Size O.D. in 1 1/4 1 1/4 1 1/4
Built-in WiFi
Console Indoor
Mid-Static Ducted Indoor
USYM09UCDSA USYM12UCDSA USYM18UCDSA USYM24UCDSA
Rated Cooling Capacity Btu/hr 9,000 12,000 18,000 24000
Rated Heating Capacity Btu/hr 10,000 13,000 19,000 25000
Voltage, Cycle, Phase V/Hz/- 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1
Airow(Turbo/High/Med/Low/Quiet)CFM 494/423/352/264 494/423/352/264 635/529/458/388 845/670/530/470
Max.ExternalStaticPressurein.W.G(Pa) 0.6 (150) 0.6 (150) 0.6 (150) 0.6 (150)
Indoor Sound Level dB
(Turbo/High/Med/Low/Quiet)
35/32/29/26 35/32/29/26 37/34/32/29 39/36/33/30
Chassis Dimension: HxWxD in (mm) 27.5/27.5/9.7(700/700/248) 27.5/27.5/9.7(700/700/248) 43.3/27.5/9.7(1100/700/248) 43.3/27.5/9.7(1100/700/248)
Weight(Ship/Net)-lbs(kg) 57/66(26/30) 57/66(26/30) 70/77 (32/35) 70/77 (32/35)
Liquid / Suction O.D. in 1/4 3/8 1/4 3/8 1/4 1/2 3/8 5/8
Drainpipe Size O.D. in 1 1/4 1 1/4 1 1/4 1 1/4
Condensate Pump Standard Standard Standard Standard
Max. Drain-Lift height in(mm) 39(1000) 39(1000) 39(1000) 39(1000)
Built-in WiFi
