GE HEALTHCARE
DIRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
Section 7-7 - Troubleshooting Trees, Instructions and Tech Tips 7 - 79
7-7-16 FibroScan Module (FSIM) Trouble Shooting
Fault symptom Check these items
Green LED on FibroScan Module is OFF Call GE service
BLue LED on FibroScan Module is OFF
1. Make sure Green LED on FibroScan Module is ON.
2. Reboot the system. If blue LED is still OFF after 90 seconds, call GE
service.
White LED on FibroScan Module is OFF
1. Make sure Green LED on FibroScan Module is ON.
2. Make sure Blue LED on FibroScan Module is ON.
3. Reboot the system. If the White LED is still OFF, call GE service.

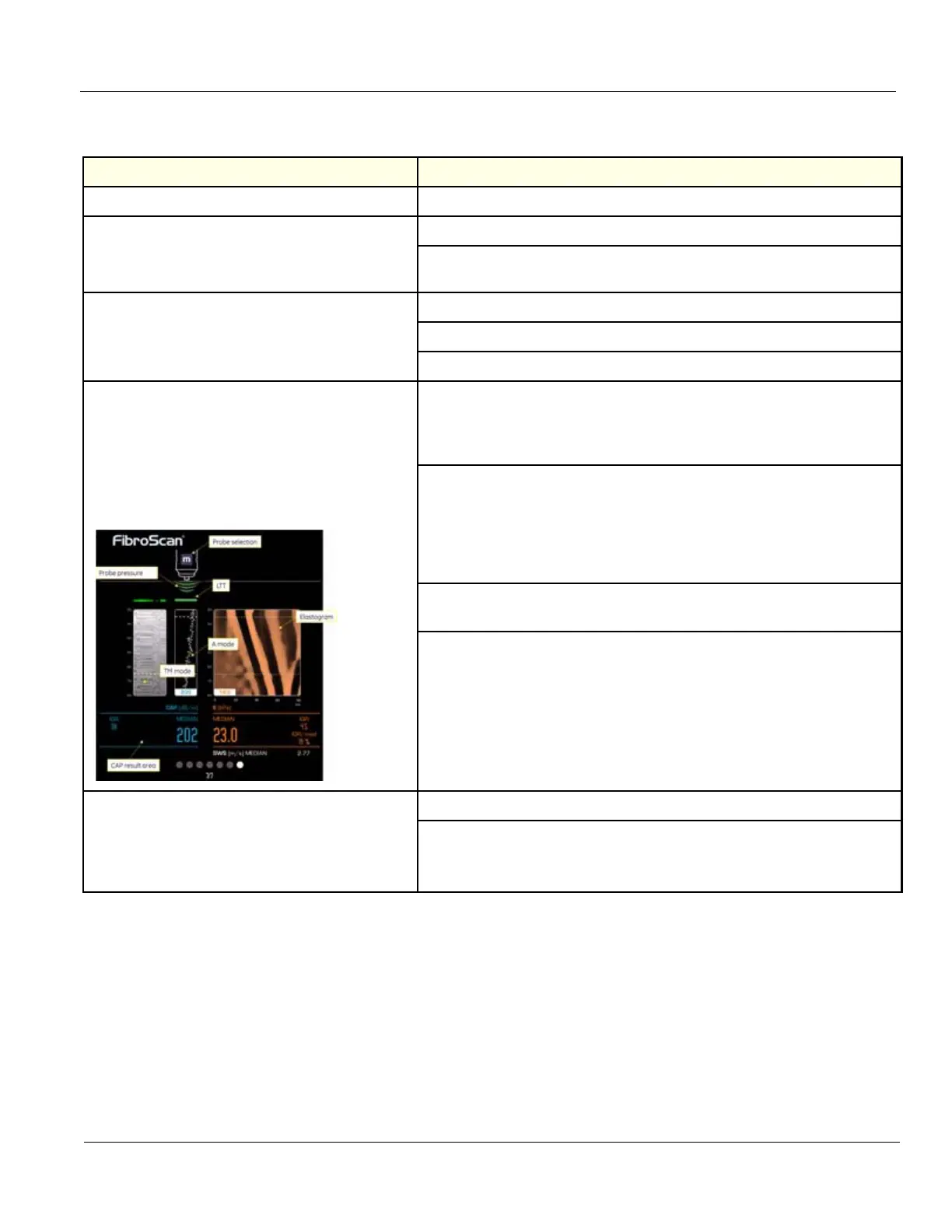

Below function is not showed on FibroScan view:
- Amplitude mode (A mode)
- Time Motion mode (TM mode)
- Elastogram image
- Probe selection
- Probe pressure indicator
- Liver targeting tool (LTT)
1. Make sure FibroScan probe is connected to FibroScan module.
Pull off the connected FibroScan probe from FibroScan module and
reconnect it again. Apply pressure to FibroScan probe with your finger tip.
If still not successful, go to step2.
2. Make sure FibroScan probe (M/XL) is selected in the examination.
Select the desired FibroScan probe on FibroScan tab on touch panel. Note
that probe selection is successful only if the corresponding probe is
connected to FibroScan module. The LED on probe will blink on a successful
connection. Apply pressure to FibroScan probe with your finger tip.
If still not successful, go to step3.
3. Exit FibroScan mode, re-enter FibroScan mode, and Repeat step2.
If still not successful, go to step4.
4. Reboot the system. If A mode is not showed, call GE service.
CAP option is not available:
- CAP result area is not showed on FibroScan
view
- CAP button is not showed on FibroScan tab on
touch panel
1. Make sure CAP option is installed on the system.
2. Reboot the system. If CAP option is still not available, call GE service.
