M-PACT Plus

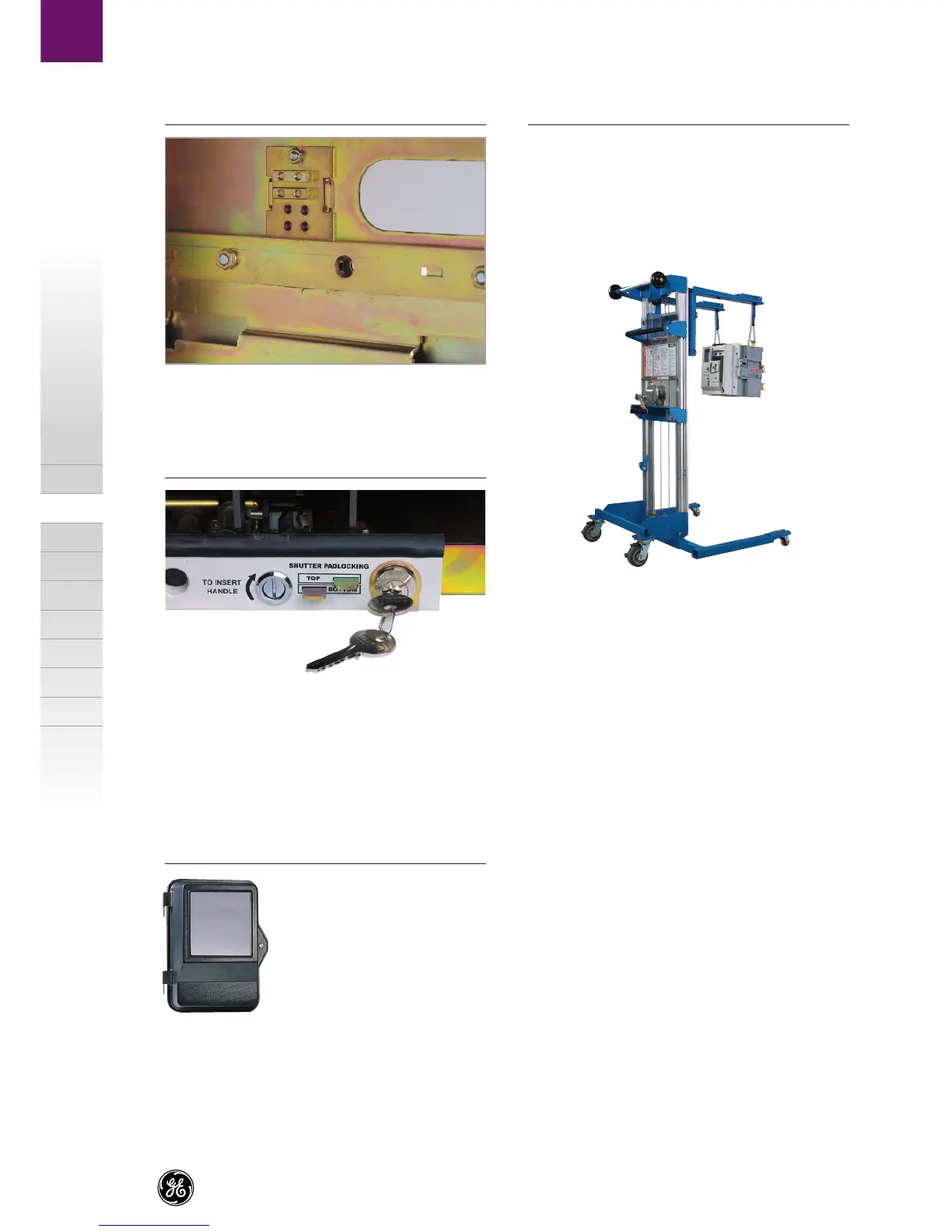

Circuit breaker insertion interlock
By incorporating this optional security interlock device into a
system, it prevents the inadvertent insertion of an incorrectly
rated withdrawable circuit breaker into a cassette.
Cassette interlock
Available for withdrawable circuit breakers only, this
sophisticated interlock system secures the circuit breaker in
the disconnected position by means of a Ronis key.
When the key is removed, the safety shutters are
automatically locked in position, thus preventing access to
the contacts and also ensuring that the racking mechanism
is not operable. For lock and key details refer to key interlock
facility section (p. A.21)
Sealed door panel escutcheon
An optional IP54 complete front door
panel is available should a higher
degree of protection be necessary.
Circuit breaker handling truck
Specifi cally designed for use with the M-PACT Plus range, this
dedicated handling truck is a useful accessory when faced
with the task of inserting or removing the circuit breaker from
its panel, or when transporting the unit should it be outside
its cassette. Installers will also fi nd it particularly valuable for
top-tier mounted circuit breakers.
