GE M-Pact Plus User Manual

C.7
M-PACT Plus

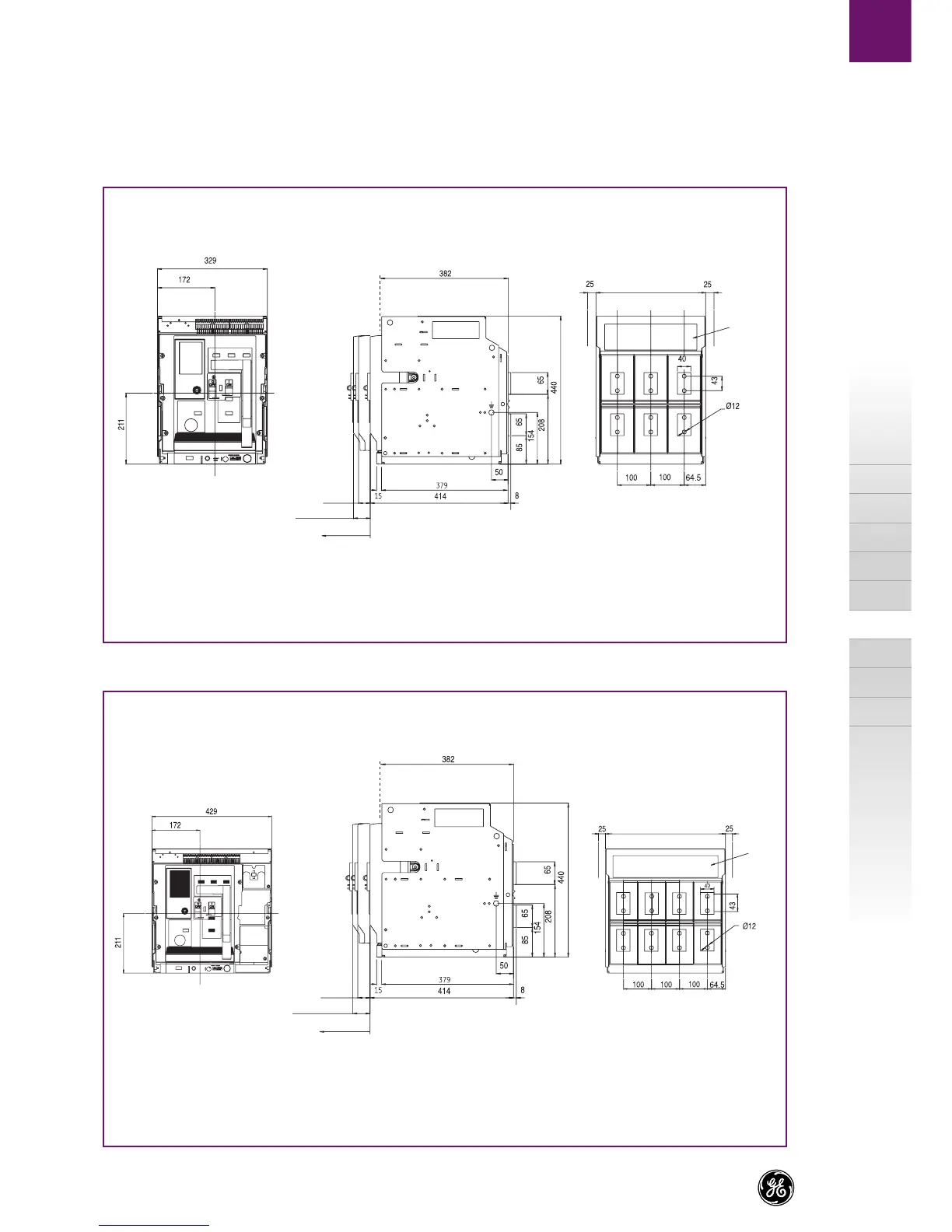

Dimensional drawings
A
B
C
X
Rear access connection
Withdrawable pattern
Type S - 3 pole - Frame size 1, In=400A to 1600A
Type S - 4 pole - Frame size 1, In=400A to 1600A
Copperwork must be supported within 200 mm of breaker
connections-busbars or cables. All connections to be tightened to 50Nm.
Centre line of operating panel
Centre line of
operating panel
35 Test
50 Disconnected
275 Fully withdrawn
Connected
Ventilation
Minimum clearance
to cassette side
to door
Copperwork must be supported within 200 mm of breaker
connections-busbars or cables. All connections to be tightened to 50Nm.
Centre line of operating panel
Centre line of
operating panel
35 Test
50 Disconnected
275 Fully withdrawn
Connected
Ventilation
Minimum clearance
to cassette side
to door
