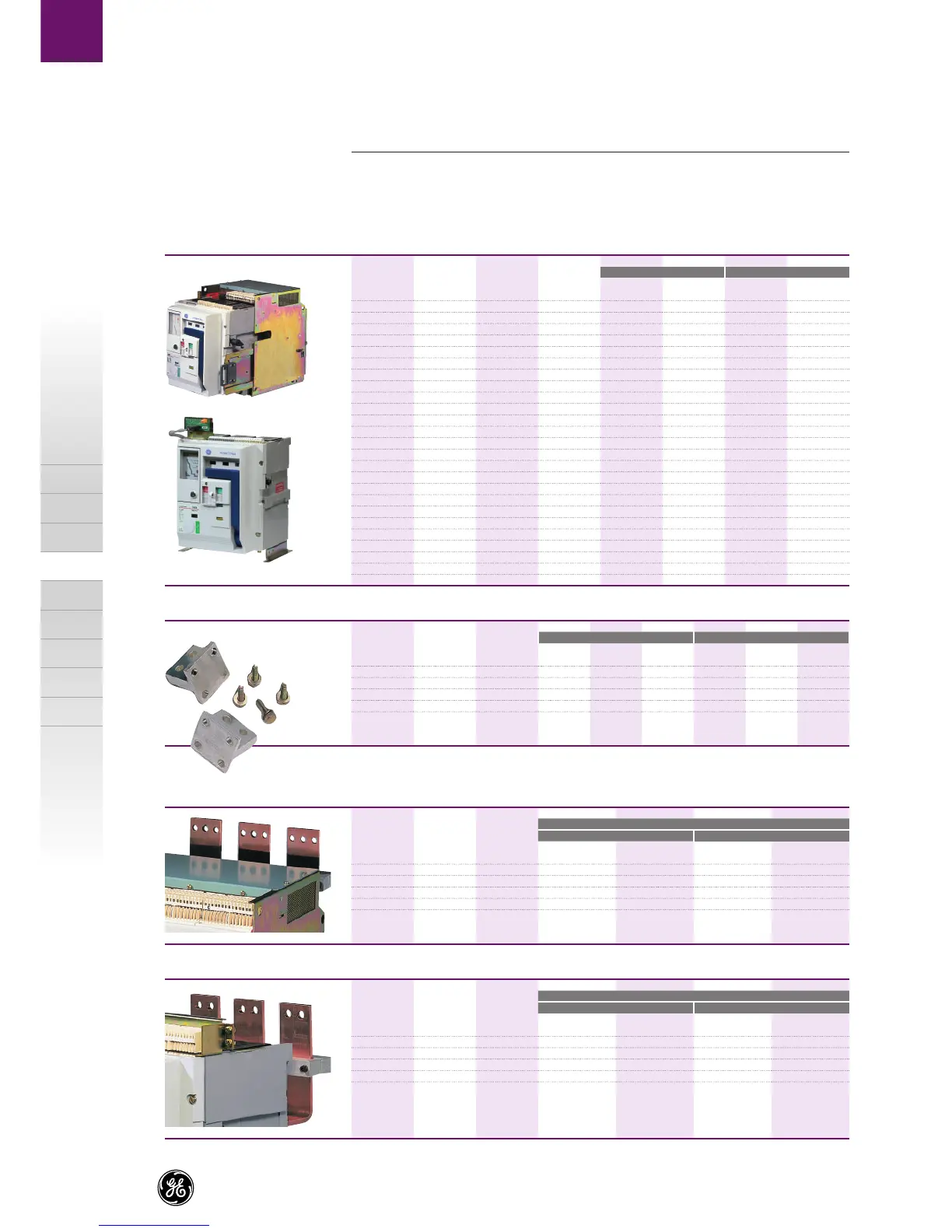

GE M-Pact Plus User Manual

B.14
Order codes
A
B
C
X
M-PACT Plus
Withdrawable and fi xed pattern
Position Withdrawable Fixed Pattern
Frame size Rating (A) Poles of the neutral Cat. no. Ref. No. Cat. no. Ref. No.
2 800 3
MH32W08-A
405797
MH32F08-A
405881
4 Left MH4L2W08-A
405796
MH4L2F08-A
405880
4 Right
MH4R2W08-A
406130
MH4R2F08-A
406146
2 1000 3
MH32W10-A
405799
MH32F10-A
405889
4 Left
MH4L2W10-A
405802
MH4L2F10-A
405888
4 Right MH4R2W10-A
406134
MH4R2F10-A
406148
2 1250 3
MH32W12-A
405801
MH32F12-A
405891
4 Left
MH4L2W12-A
405798
MH4L2F12-A
405890
4 Right
MH4R2W12-A
406132
MH4R2F12-A
406150
2 1600 3
MH32W16-A
405829
MH32F16-A
405893
4 Left
MH4L2W16-A
405828
MH4L2F16-A
405892
4 Right
MH4R2W16-A
406136
MH4R2F16-A
406152
2 2000 3 MH32W20-A
405831
MH32F20-A
405895
4 Left
MH4L2W20-A
405830
MH4L2F20-A
405894
4 Right
MH4R2W20-A
406138
MH4R2F20-A
406154
2 2500 3
MH32W25-A
405859
MH32F25-A
405897
4 Left
MH4L2W25-A
405858
MH4L2F25-A
405896
4 Right
MH4R2W25-A
406140
MH4R2F25-A
406156
2 3200 3
MH32W32-A
405861
MH32F32-A
405899
4 Left MH4L2W32-A
405860
MH4L2F32-A
405898
4 Right
MH4R2W32-A
406142
MH4R2F32-A
406158
2 4000 3
MH32W40-A
405863
MH32F40-A
405901
4 Left
MH4L2W40-A
405862
MH4L2F40-A
405900
4 Right
MH4R2W40-A
406144
MH4R2F40-A
406160
Air circuit breaker - type H - 80kA - Automatic
Frame 2
(Please select trip unit type in page B.16)
Basic circuit breaker manually operated, automatic (must be fitted with an MPRO Protection
Unit as listed on page B.16), 5 NO and 3 NC auxiliary switches. Withdrawable pattern - basic
circuit breaker and cassette with flat copper terminals, rear connected.
Fixed Pattern - basic circuit breaker with rear horizontal terminals.
Rear connections
Withdrawable or cassettes Fixed Pattern
Frame size Rating (A) Poles Cat. no. Ref. No. Type Cat. no. Ref. No. Type
2 800 to 3200 3 RT2UNI
405601
Universal
RT2SNHVFIX
405621
Vertical
4 RT2UNI
405601
Universal
RT2SNHVFIX
405621
Vertical
2 4000 3 N/A
N/A
Vertical
RT2SNHVFIX
405621
Vertical
4 N/A
N/A
Vertical
RT2SNHVFIX
405621
Vertical
Rear Connections specified in multiples of 3, 4, 6 or 8 dependant on 3 or 4 pole configuration - top and / or
bottom connections.
Front access connections
Withdrawable
TOP connections BOTTOM connections
Frame size Rating (A) Poles Cat. no. Ref. No. Cat. no. Ref. No.
2 800 to 3200 3 FA32WH32T
405973
FA32WH32B
405553
4 FA42WH32T
405974
FA42WH32B
405554
2 4000 3 FA32WH40T
405975
FA32WH40B
405555
4 FA42WH40T
405976
FA42WH40B
405556
Front access connections
Fixed pattern
TOP connections BOTTOM connections
Frame size Rating (A) Poles Cat. no. Ref. No. Cat. no. Ref. No.
2 800 to 3200 3 FA32FH32T
405985
FA32FH32B
405565
4 FA42FH32T
405986
FA42FH32B
405566
2 4000 3 FA32FH40T
405987
FA32FH40B
405567
4 FA42FH40T
405988
FA42FH40B
405568
