8. Lock the VCB in the DISCONNECTED/TEST position
using the spring-loaded locking handles, Figure 5-18.
The tabs on the VCB will engage slots in the switchgear
compartment rails
6. Engage the compartment interlock onto the switchgear
compartment. This operation requires a combination of
steps shown on Figures 5-14 through Figure 5-16.
a. Push the operation handle until it is fully engaged in the
switchgear compartment slot.

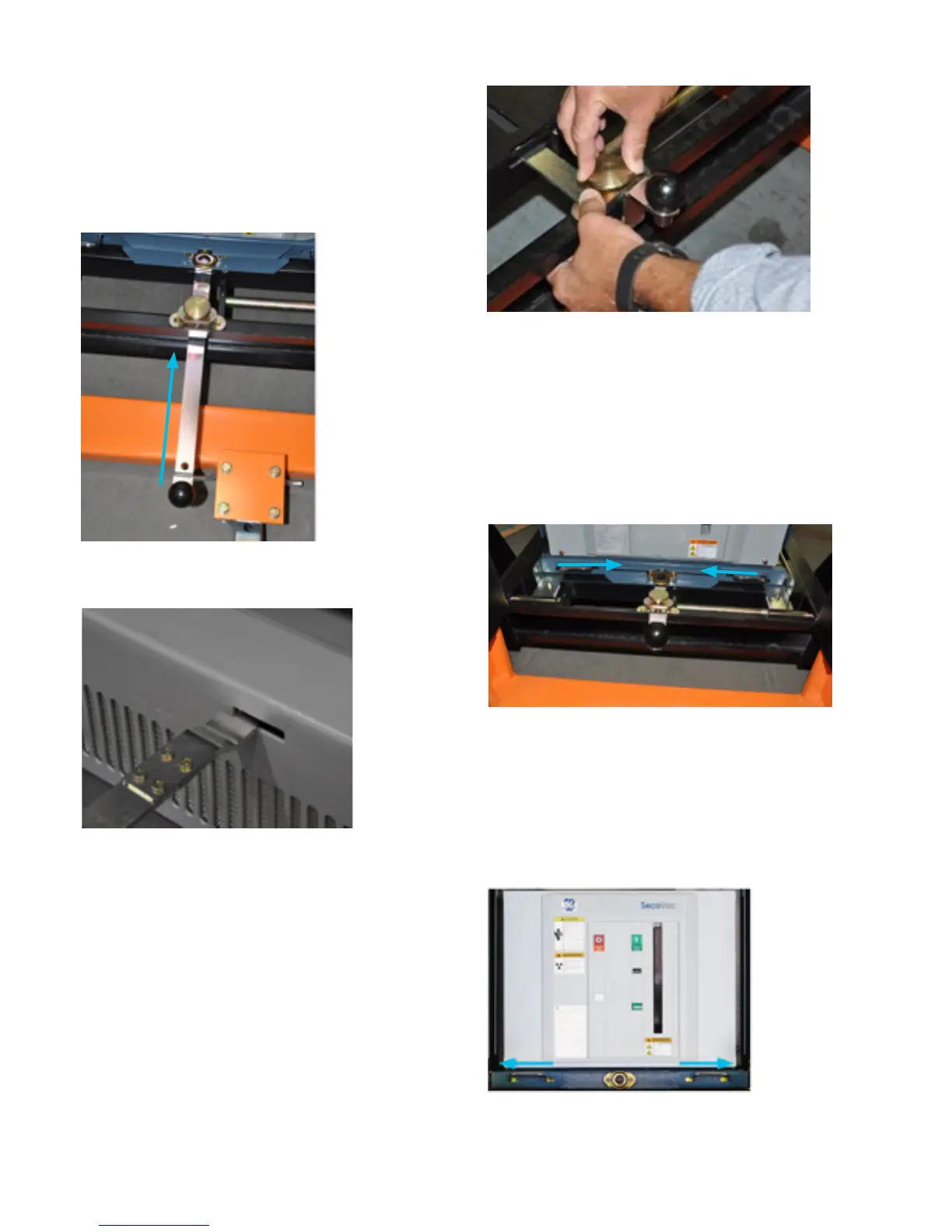

Figure 5-14. Operation Handle
Figure 5-15. Operation Handle Fully Engaged into Switchgear Compartment
b. Lock the operation handle into place by pressing
down and rotating the interlock pin clockwise until it
is fully engaged.
Figure 5-16. Press Down on the Interlock Pin and Rotate Clockwise to Lock
the Latch Handle
7. To insert the VCB into the switchgear compartment,
push the two locking handles on the front of the VCB
inward (toward the center) to release from the lift truck
and push the VCB onto the rails and into the switchgear
compartment, Figure 5-17.
Figure 5-18. Lock VCB into Switchgear
Figure 5-17. Unlock VCB from Lift Truck
