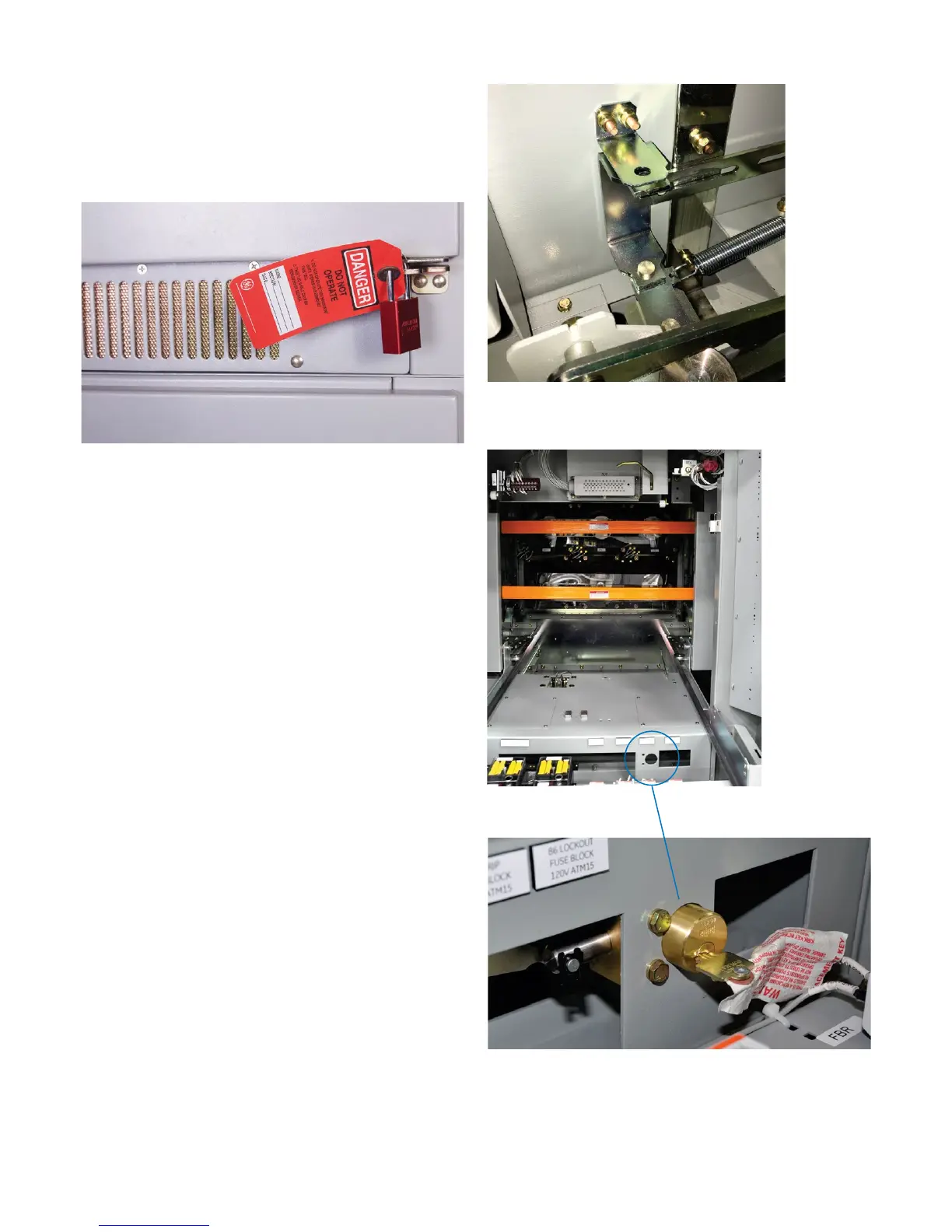

Figure 9-9: Compartment Door Padlock
Door Padlock Provision
The compartment door has a padlock provision located in
the lower right corner (Figure 9-9) to prevent opening the
door to access the cubicle or install a circuit breaker.
If a circuit breaker is already in the compartment, it can still
be tracked into the connected position through the closed
door unless the racking access port is locked out, as shown
in Figure 9-8.
Shutter Padlock Provision
Shutter padlocking is available if you need to work in the
cubicle but want to prevent the shutters from opening, and
thus prevent racking a circuit breaker in.
There are two brackets to install padlocks (one on the left
[Figure 9-10] side and one on the right) just beyond the barrier
in the “high voltage” compartment of the cubicle.
In order for the shutters to open, both sides need to actuate,
so you need to lock out only one side.
Figure 9-10: Shutter Padlock
Figure 9-11: Kirk Lock Location in SecoGear
