GEM-P9600 Installation Instructions
L
NAPCO Security Systems
WI742D 5/03
!
Page 18

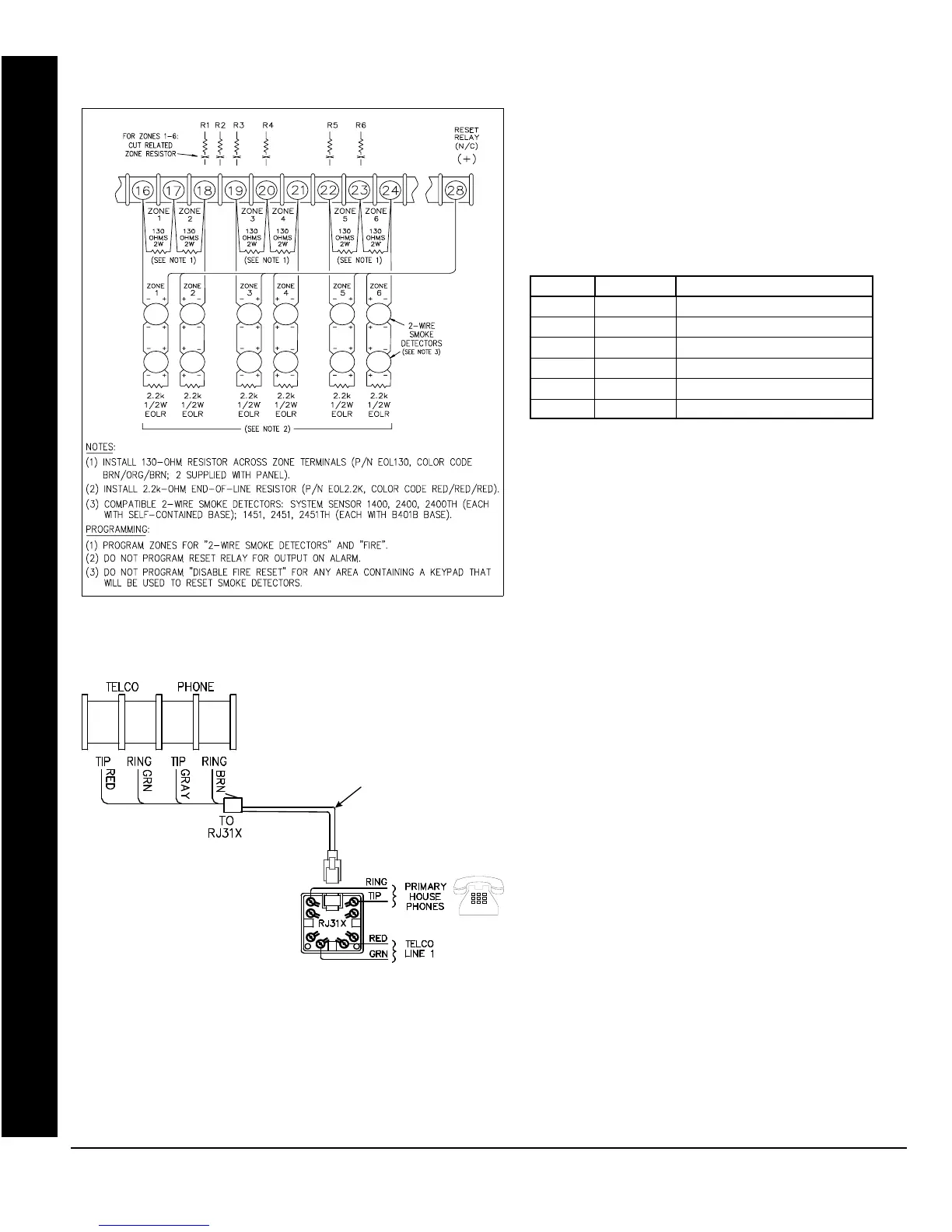

Connect the Model 368 Cord as follows: 30 (RED = Telco Tip), 31 (GREEN = Telco Ring), 32 (GRAY = Home Tip)
and 33 (BROWN = Home Ring). Insert the modular plug into an approved USOCRJ31X jack (or a CA31A jack for
Canadian installations). The Telco Line is used by the control panel to dial the central station and for downloading.
This line should not be connected to party lines or coin operated telephones. If connected to a line with call waiting,
then call waiting interrupt numbers must be programmed into the CS Telephone Numbers (refer to the GEM-P9600
Programming Instructions).
Model 368 Cord
TELEPHONE LINES
30 31 32 33
2-WIRE SMOKE DETECTORS
Where more than two 2-wire smoke detector zones
are required, select any of Zones 1–6 for 2-wire fire
as follows:
1. Program the selected zone(s) (1–6) for 2-Wire
Smoke Detectors and Fire.
2. Cut the lead of the 2700W resistor (color code:
red/violet/red) associated with the selected zone
(s). See following table.
3. Install a 130W resistor (Napco Part No. EOL130;
color code: brown/orange/ brown), 3 watts,
across the two terminals of each selected zone.
4. Wire the positive (+) terminal of the smoke de-
tector to Terminal 28. Wire the negative (–) ter-
minal of the smoke detector to the positive termi-
nal (+) of the zone.
ZONE RESISTOR LOCATION ON BOARD
1 R1 ABOVE TERMINAL 18
2 R2 ABOVE TERMINAL 18/19
3 R3 ABOVE TERMINAL 19
4 R4 ABOVE TERMINAL 20
5 R5 ABOVE TERMINAL 22
6 R6 ABOVE TERMINAL 23
WIRING CONNECTIONS
Connecting 2-wire smoke detectors to zones 1-6
To Next Page
