System Hardware Installation - 28 -
3-5 Removing the CPU Heat Sink
Follow these instructions to remove the heat sink:
1. Loosen the captive screws securing the heatsink in place in reverse order (4
g
3
g
2
g
1).
2. Lift and remove the heat sink from the system.
3. To reinstall the heat sink reverse steps 1-2 while ensuring that you tighten the captive screws in
sequential order (1
g
2
g
3
g

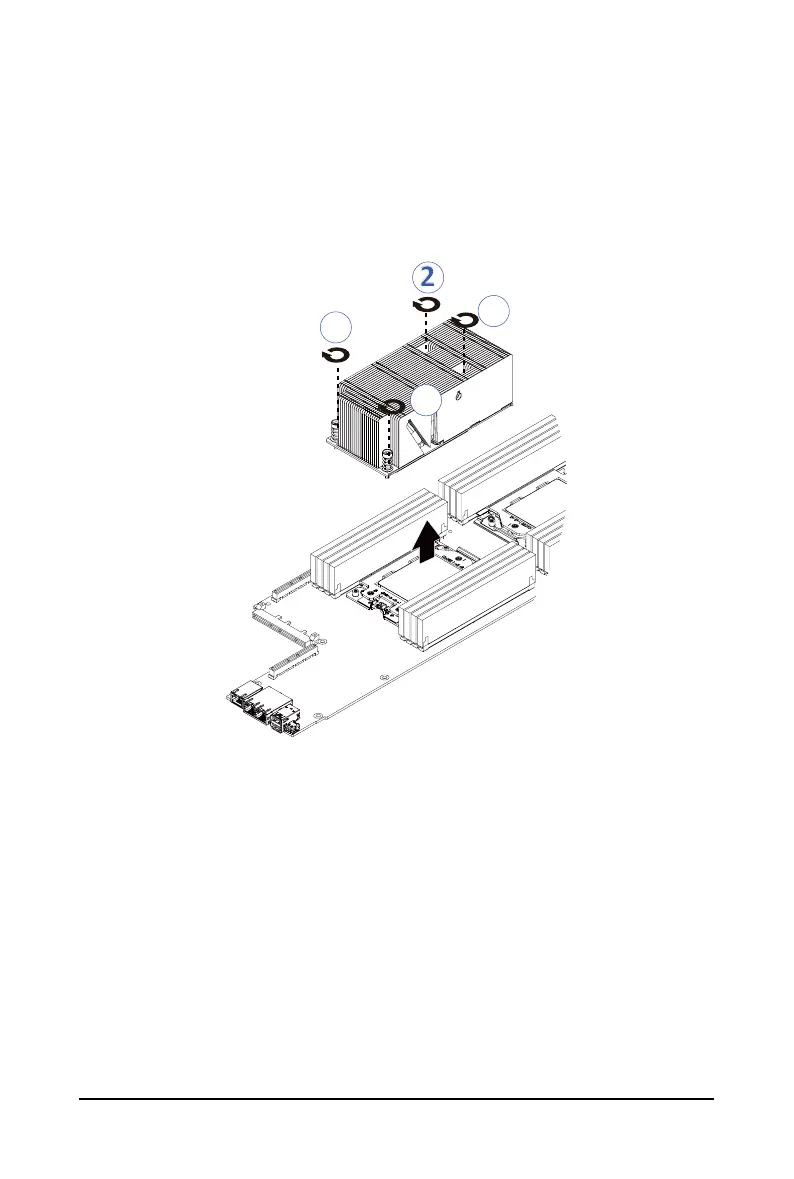

4) as seen in the image below.
4
1
3
