- 31 - System Hardware Installation
3-7-2 Installing the Memory
3-7-3 Processor and Memory Module Matrix Table
Processor and Memory Module Matrix Table
8 DIMMs
CPU#
CPU0 A1 B1 C1 D1 E1 F0 G0 H0
16 DIMMs
CPU0 A0 B0 C0 D0 E0 F0 G0 H0
CPU1 I0 J0 K0 L0 M0 N0 O1 P0
Channel A/I Channel B/J Channel C/K Channel D/L Channel E/M Channel F/N Channel G/O Channel H/P
Before installing a memory module, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the memory module.
Be sure to install DDR4 DIMMs on this motherboard.

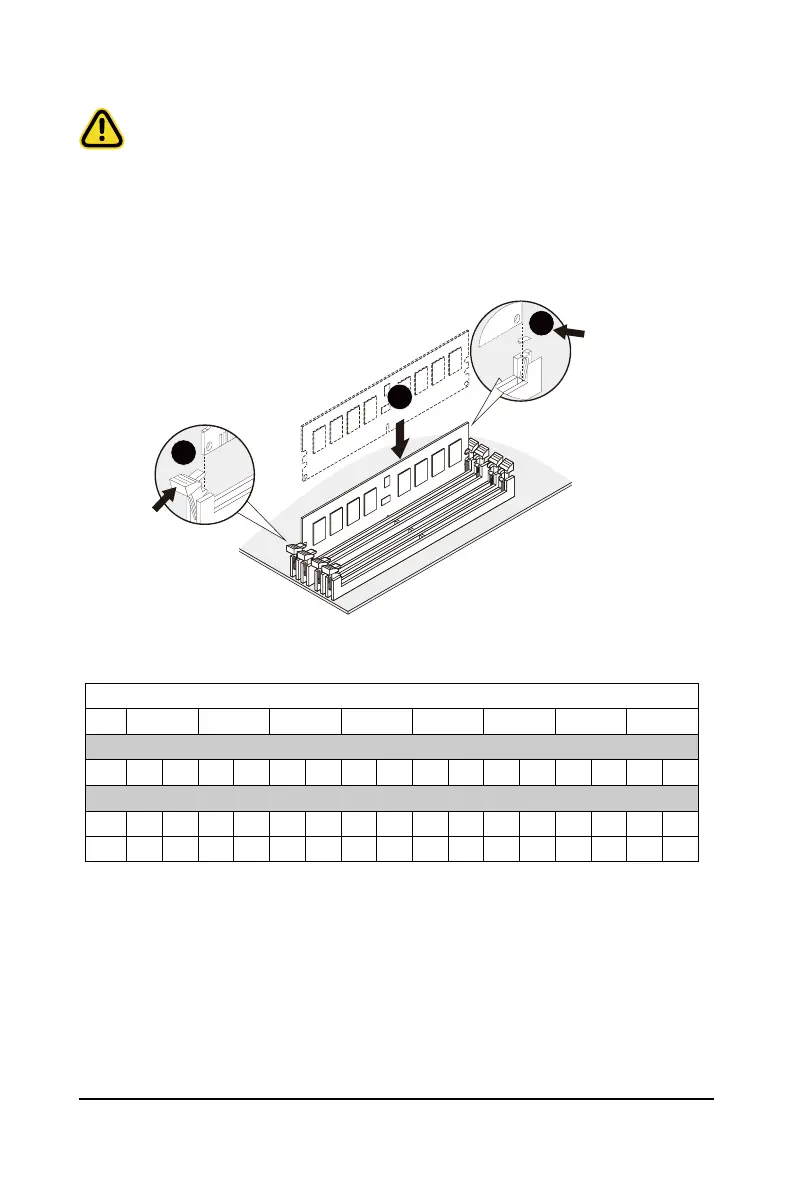

Follow these instructions to install the Memory:
1. Insert the DIMM memory module vertically into the DIMM slot, and push it down.
2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
3. Reverse the installation steps when you want to remove the DIMM module.
1
2
2
