Gigabyte G262-ZO0 User Manual

- 51 - Motherboard Components
Chapter 4 Motherboard Components

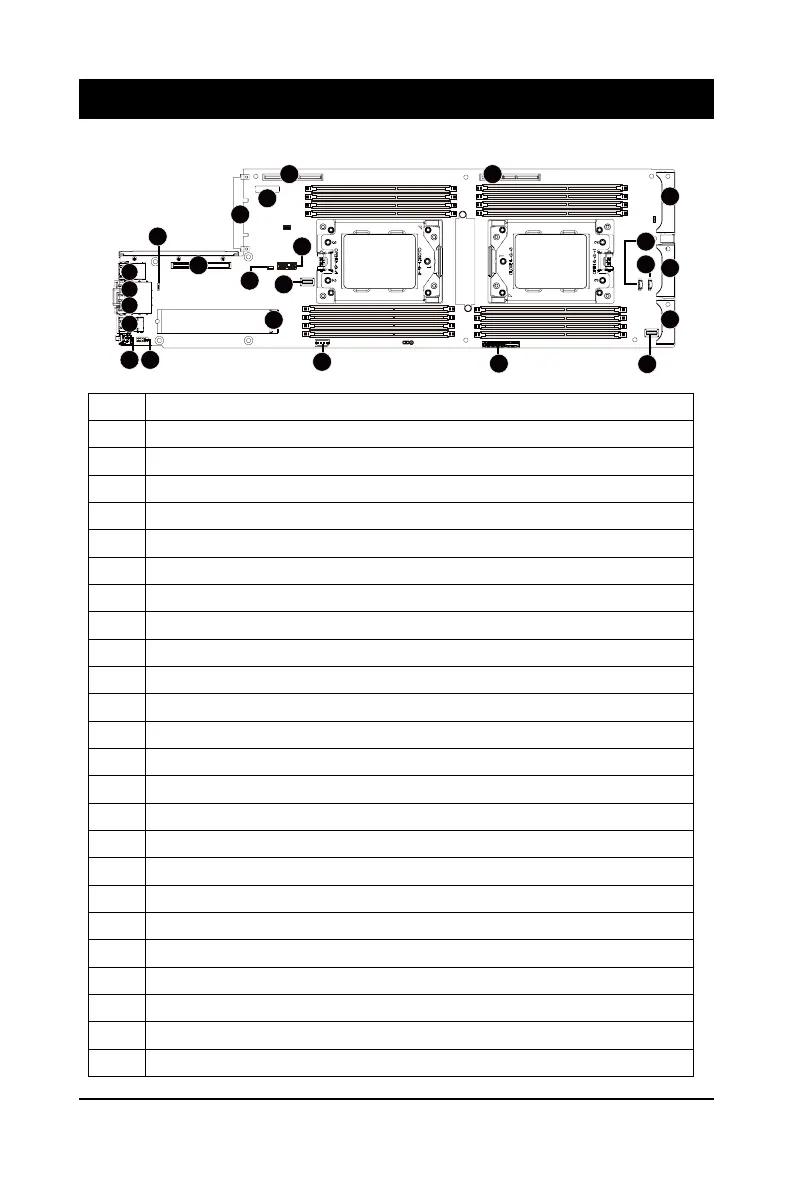

4-1 Motherboard Components
21
21
CPU0 CPU1
1
2
4
5
6
7
8 9
14
15
16
1920
21
24
11
10
17
18
22
12
13
3
23
Item Description
1 OCP Mezzanine 3.0 Connector
2 Proprietary PCIe Slot #2 (Gen 4/x16 slot/GENZ_2)
3 NCSI Switch
4 Server Management LAN Port
5 GbE LAN Port #2
6 GbE LAN Port #1
7 USB 3.0 Port x 2
8 Mini DP Port
9 Serial Port Cable Connector
10 M.2 Connector (PCIe x4, Supports NGFF-22110)
11 IPMB Connector
12 Proprietary PCIe Slot #L (Gen 4/x8 slot/GENZ_L)
13 SlimLine SAS Connector (SL4_SATA0/PCIe/SATA)
14 Power & PCIe/SATA Connector
15 Power & PCIe/SATA Connector
16 Power & PCIe/SATA Connector
17 SGPIO Connector #B
18 SGPIO Connector #A
19 Proprietary PCIe Slot #R (Gen 4/x16 slot/GENZ_R)
20 Proprietary PCIe Slot #1 (Gen 4/x16 slot/GENZ_1)
21 System Battery Socket
22 TPM Connector
23 Function Jumper Switch
24 SlimLine SAS Connector (SATA0)
