10-1
PRESSURE MODE
In this mode, the instrument can be used as a manometer to measure
appliance and regulator pressure and to check the system for leaks.
Note 1: It is important to zero the pressure mode in ambient
atmosphere before taking measurements.
Note 2: Pump is OFF in pressure mode.
10.1 PRESSURE RANGES
Pressure mode will have either of the following congurable ranges
available:
• 0 to 60in Water Gauge (Resolution 0.1in)
• 0 to 150mBar (Resolution 1mBar)
Note: EEE (Over-range) is displayed if the pressure exceeds
60in. / 150mBar.
10.2 PRESSURE FEATURES
Pressure mode will have the following features available:
• Backlight
• Display Invert
10.3 PRESSURE DISPLAYS
10

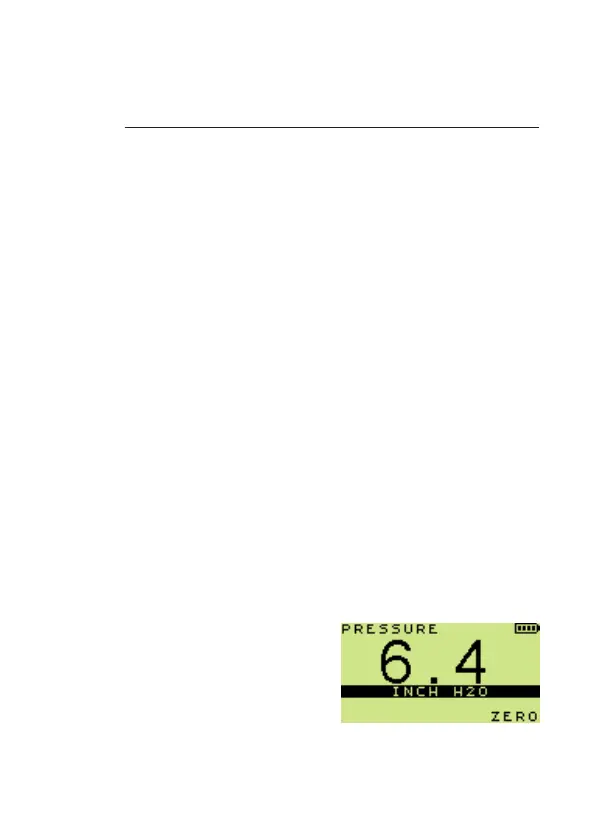

When pressure test mode is
selected from the menu, the
normal operating display is
shown. See Fig. 10.1.
Fig. 10.1 Normal Display
