PRESSURE MODEUSER HANDBOOK
Note: A congurable option is
available to measure in mBar
as shown in Fig. 10.2.
10.4 PREPARE INSTRUMENT (PRESSURE MODE)
Zero the instrument before tubing is attached.
To zero the instrument:
• Press and hold ZERO .
Connect the required length of tubing from the appliance to the
pressure port on the rear of the instrument, as shown in Fig. 10.3.

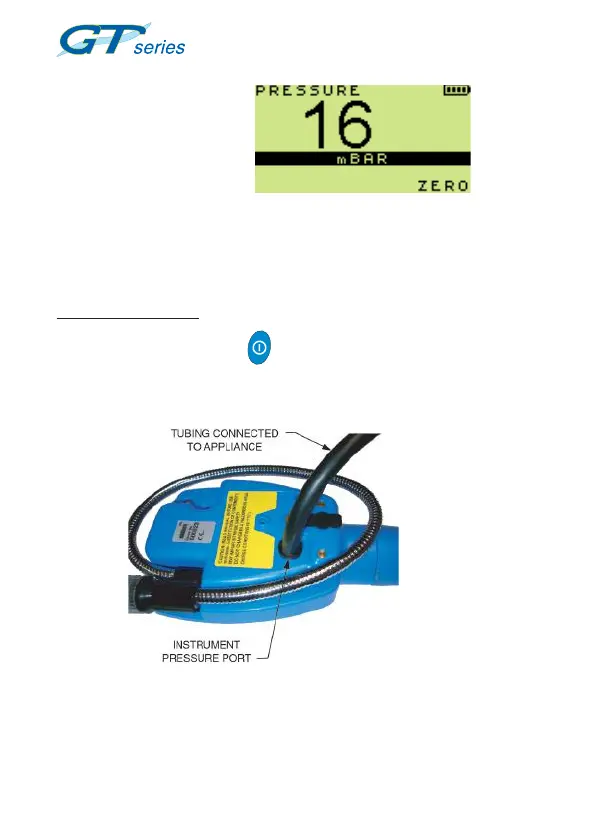

Fig. 10.3 Tubing Connected to Pressure Port
You can now utilise the instrument as a manometer in accordance
with your company practice.
Fig. 10.2 mBar Display
