WORK STATION

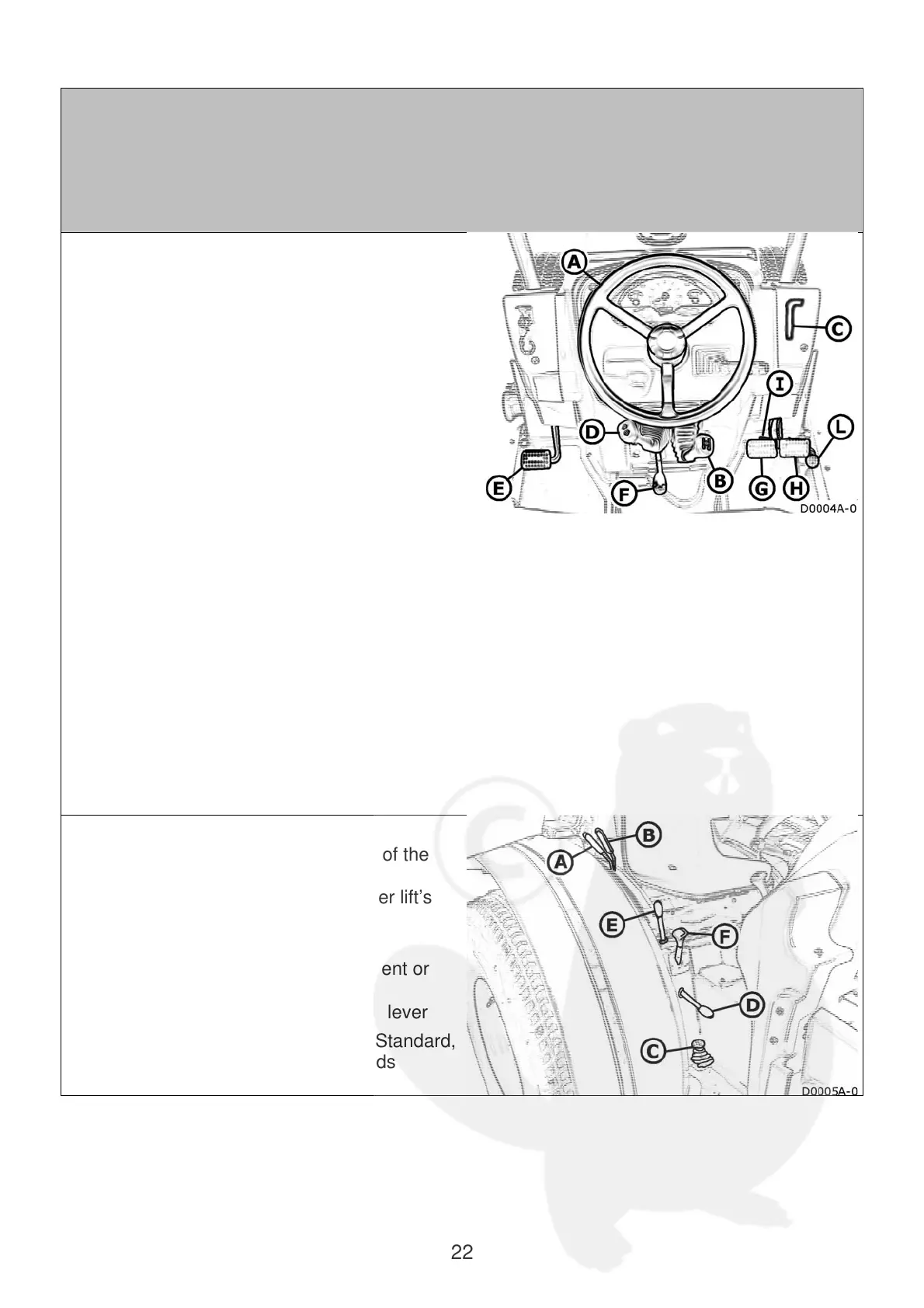

Controls
Controls in front part
A Steering wheel
B Gearshift lever:
speed selection (1-2-N-3-4)
C
Hand throttle
D Reverse shuttle lever:
for selecting forward, reverse speeds
E Clutch pedal
F Rear PTO clutch lever
G LH brake pedal
H RH brake pedal
I Brake pedal latch
L Accelerator pedal
Controls on RH side
A
Lever for regulating the position of the
rear power lift
B
Lever for adjusting the rear power lift’s
draft
C
Diff lock pedal
D
Lever for selecting the independent or
synchronized rear PTO
E
Rear supplementary spool valve lever
F
Final drive lever: selects Low, Standard,
High speeds and Reverse speeds
