68
Fuses
The electrical system is protected by fuses against short circuits
or abnormal power draw.
The tractor has a main fuse. This fuse protects the entire
electrical system.
Replace
Replace burnt-out fuses with others possessing identical technical specifications (the
relative indications are given on the fuses themselves).
Consult specialized personnel if in doubt.

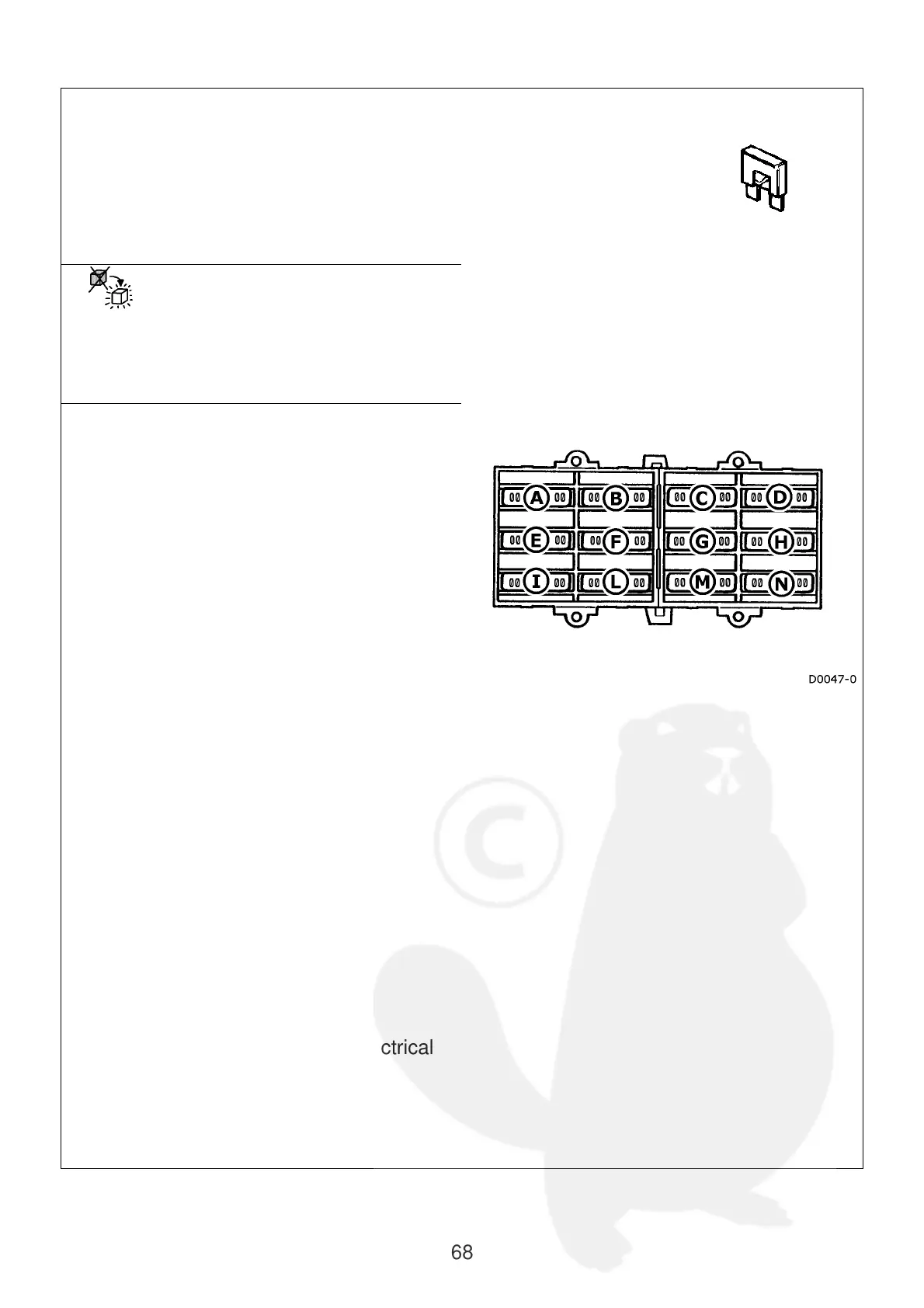

Fuse functions:
N°
A
Function
A
20A Power socket power supply
B
15A Horn power supply
C
5A
Rh front side light
Lh rear side light
7-pin socket
D
5A
Lh front side light
License plate light
Rh rear side light
7-pin socket
E
5A
Brake light power supply
Four-wheel drive switch
PTO switch
F
10A
Multi-function dashboard
Fuel pump motor
Motor stop coil
G
7.5A
Lh dipped beam
H
7.5A
Rh dipped beam
I
10A 7-pin socket power supply
L
10A
+15 power supply
Hazard light switch
M
10A
+30 power supply
Hazard light switch
N
15A
Rh driving beam
Lh driving beam
Main fuse
50
A
General protection of electrical
system
