Three-point hitch
The tractor is equipped with a three-point hitch. To ensure that this system operates
correctly, make sure that the size and weight of the implement used correspond to the
specifications of the power lift and hitch itself.
Consult the technical specifications section for further details.

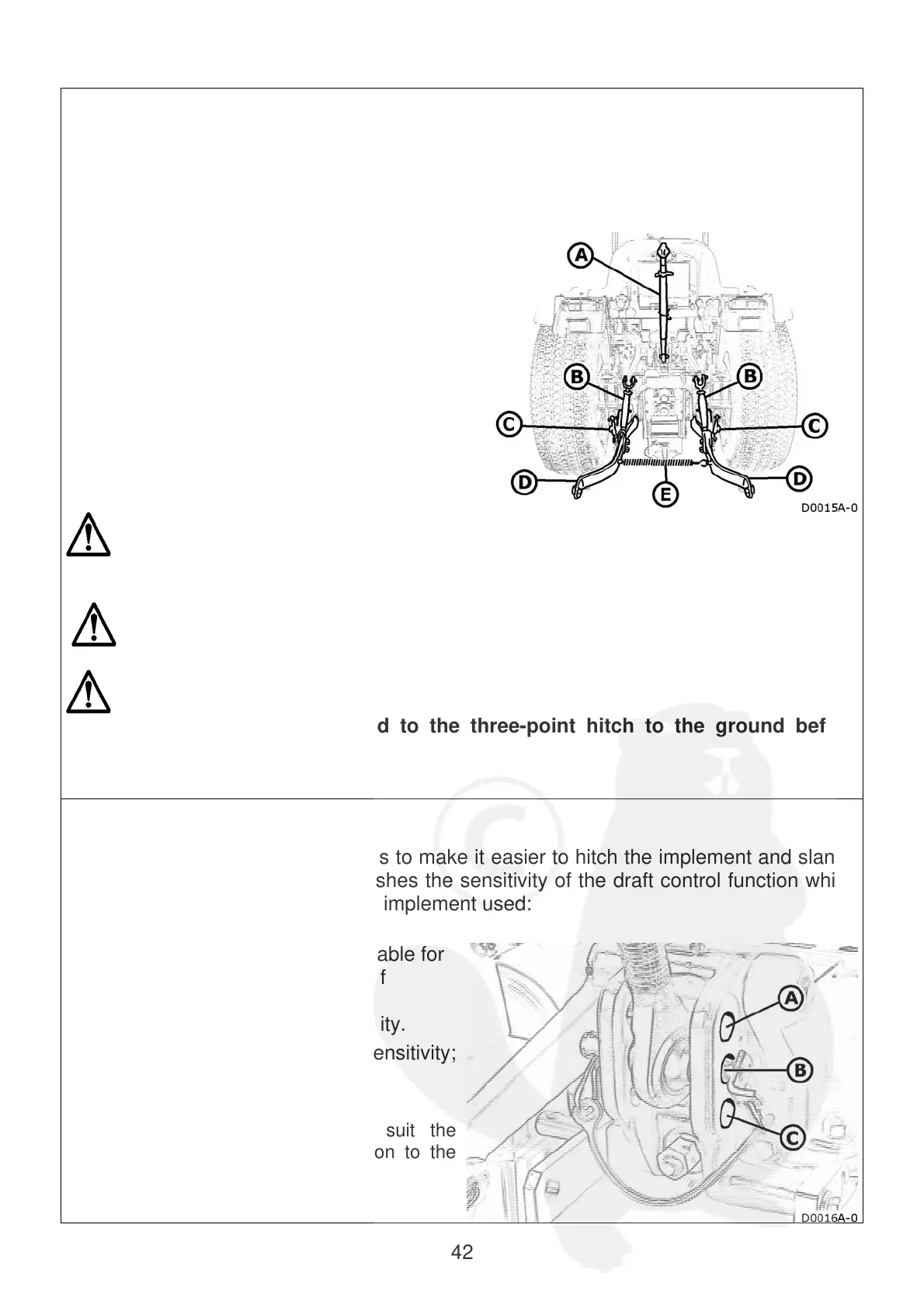

Components:
A Third point link
B Adjustable rod (pair)
C Side stabilizer (pair)
D Power lift’s lower link (pair)
E Spring
ALWAYS switch off the engine before hitching or adjusting the three-point hitch in
any way.
The third point coupling must NOT be used for towing implements.
Lower the implement connected to the three-point hitch to the ground before
getting off the tractor.
Third point link
Coupling
The third point coupling has 3 holes to make it easier to hitch the implement and slant it
at the correct angle. It also establishes the sensitivity of the draft control function which
must be selected to suit the type of implement used:
A
Top hole: less sensitivity; suitable for
implements that create a lot of
tractive effort.
B Central hole: medium sensitivity.
C
Bottom hole: greater sensitivity;
suitable for light implements.
Adjustment
djust the length of the link to suit the
implement’s coupling angle in relation to the
ground.
