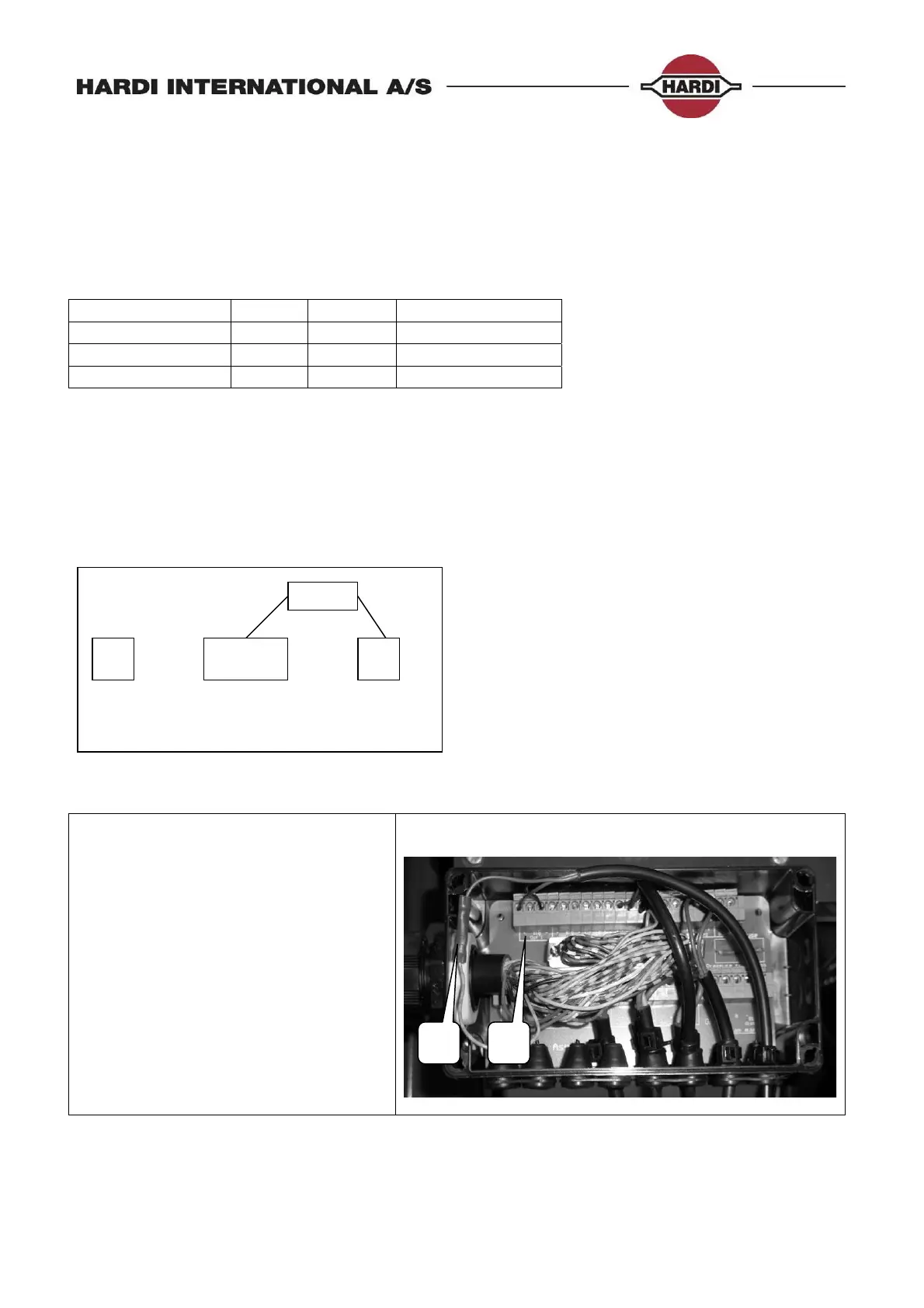

TankGauge
The TankGauge (digital contents sensor) is a sensor that can measure how much liquid is in
the tank. It has no automatic function. It can give a warning when the tank is about to run
dry.
Connecting TankGauge
Wire between JobCom and 26007300
Figure 1 Wire for connection between JobCom and TankGauge
The cable is fitted with an AMP plug and three lose wires at the other end. It is attached to
the JobCom at J1, “Tank gauge”.
For JobCom with hardware version before 2.0, a 10Kohm resistor is fitted between
connector 2 & 3 on the JobCom.
Figure 2 shows the resistor location.
Figure 2 Mounting of the 10 K ohm resistance in the JobCom
Models without JobCom:
A. TankGauge is mounted on PCB in
distribution valves junction box.
Green/Grey wire is connected to the
blue wire from TankGauge.
B. Is mounted in OPT 1 as shown.
Brown wire +
Black wire –
If a speed sensor is present, connect
it in parallel.
Distribution Valves Junction Box
The cable from the Spray box has two lose wires which are not connected in the JobCom.
These much be attached to the plug as shown on Picture 7
AMP Super Seal PCB Wire Wire (old version)
2 + Brown Green
3 Sig Blue White
1 - Black Brown
-
Signal
+
Blue
wire
Black
wire
Brown
wire
A B
