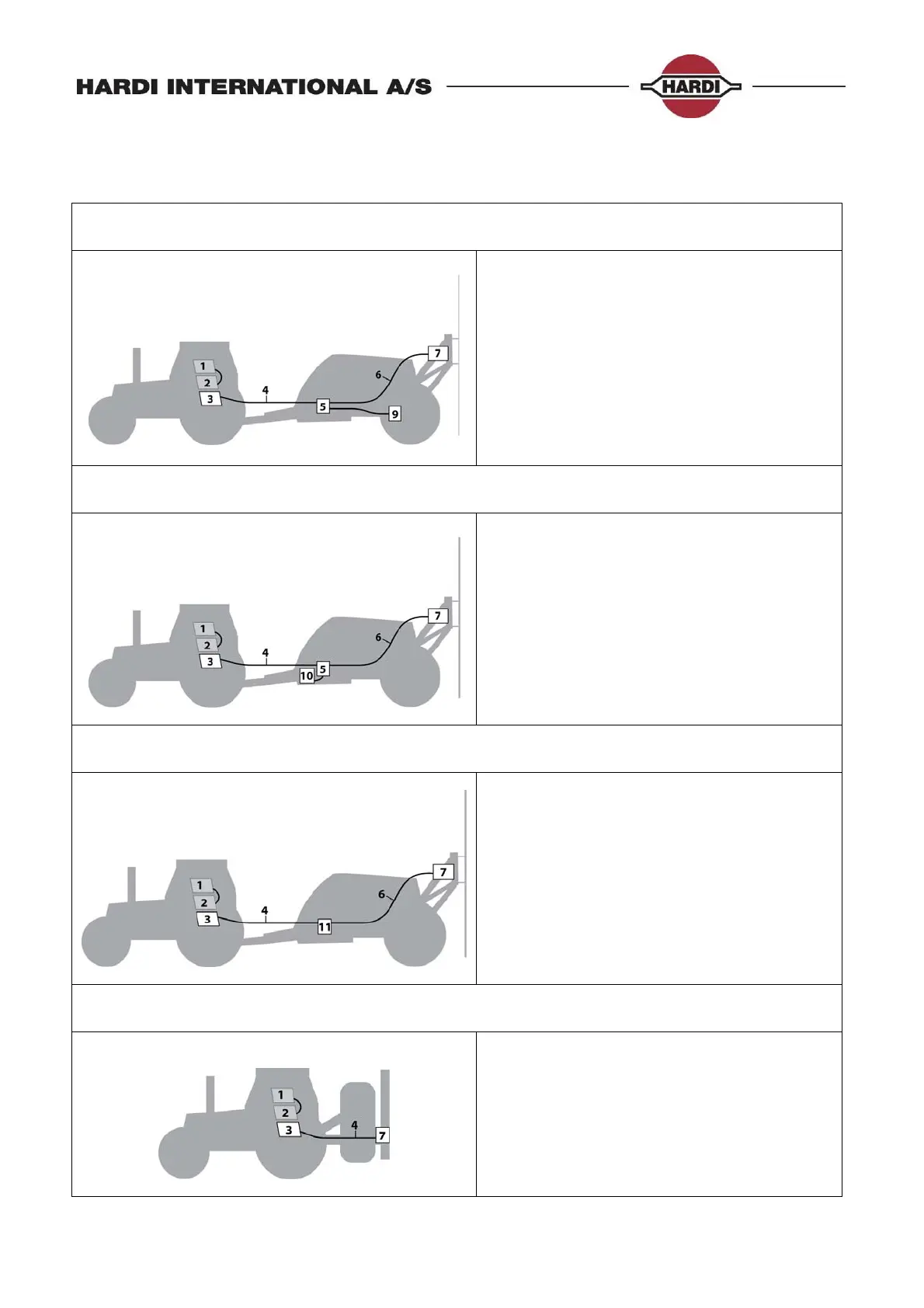

Hydraulic cables
Cables details can be found in the cables configuration chapter.
Commander with JobCom:
1. HC5500
2. Spray II Box
3. Hydraulic Box
4. Cable P/N: 72236600, L=5m
72236400, L=8m
5. JobCom with DAH Interface
6. Cable P/N 26016900
7. Hydraulic junction box
9. SafeTrack and lock cable P/N26024000
Navigator with JobCom:
1. HC5500
2. Spray II Box
3. Hydraulic Box
4. Cable P/N: 72236600, L=5m
72236400, L=8m
5. JobCom DAH Interface
6. Cable P/N 26016900
7. Hydraulic junction box
10. IntelliTrack cable P/N26024100
Commander, Navigator and Ranger without JobCom:
1. HC5500
2. Spray II Box
3. Hydraulic Box
4. Cable P/N: 26008400, L=8m
6. Cable P/N 26016900
7. Hydraulic junction box
11. Breakout PCB
Master
1. HC5500
2. Spray II Box
3. Hydraulic Box
4. Cable P/N: 72168100, L=8m
72278300, L=12m
7. Hydraulic junction box
