Specifications

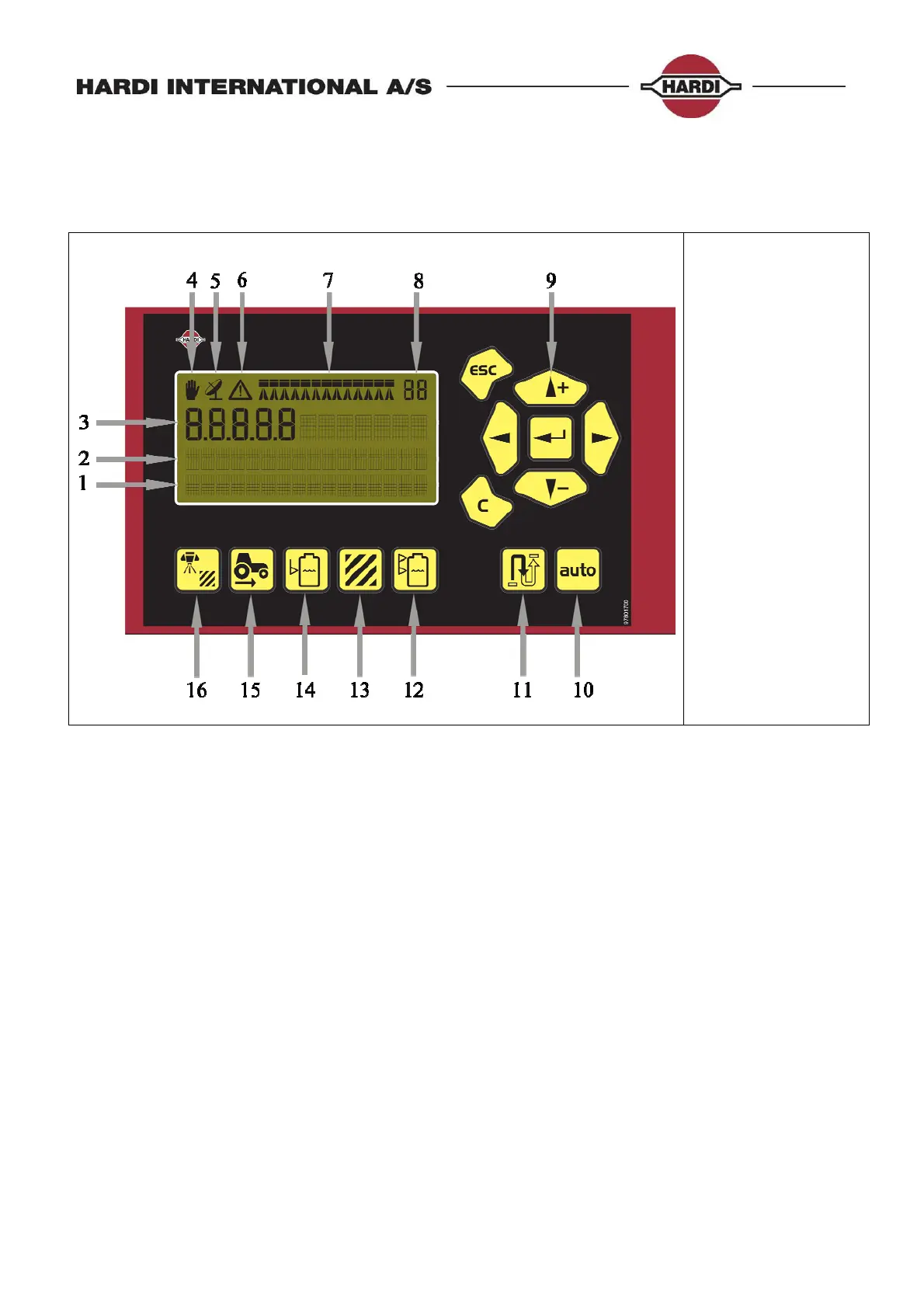

HARDI HC5500 Controller:
Display:
1. 4
th
line
2. 3
rd
line
3. Main Readout
4. Manual
5. External rate
6. Warning
7. Boom line status
8. Register no.
Navigation keys:
9. Multi function keys
Readout presets &
Short cuts:
10. Auto On
11. Remaining Distance
or Area
12. Volume used
13. Area covered
14. Tank volume
15. Speed
16. Volume rate
HC5500, Spray box and JobCom power supply and protection
Power supply:
Operating range: 9-16V DC
Controlled processor shut down: < 9 VDC
Protected against over voltage: 28 VDC
The electronics are protected against reverse polarisation of the power input.
Ambient temperature: – 5°C to + 70°C
Memory: Flash PROM non-volatile
Analog transducers typ. press. (Option 1):
Supply: 12 V
Input: 4 to 20 mA
Minimum speed for volume regulation: 0.5 km/h
Digital transducers type fan speed (option 2): Square signal
Frequency: 0.5 Hz to 2 kHz
Trigger high: 4.0 to 12.0 Volt DC
Trigger low: 0.0 to 2.0 Volt DC
