4 - Sprayer setup
39
Mechanical connections

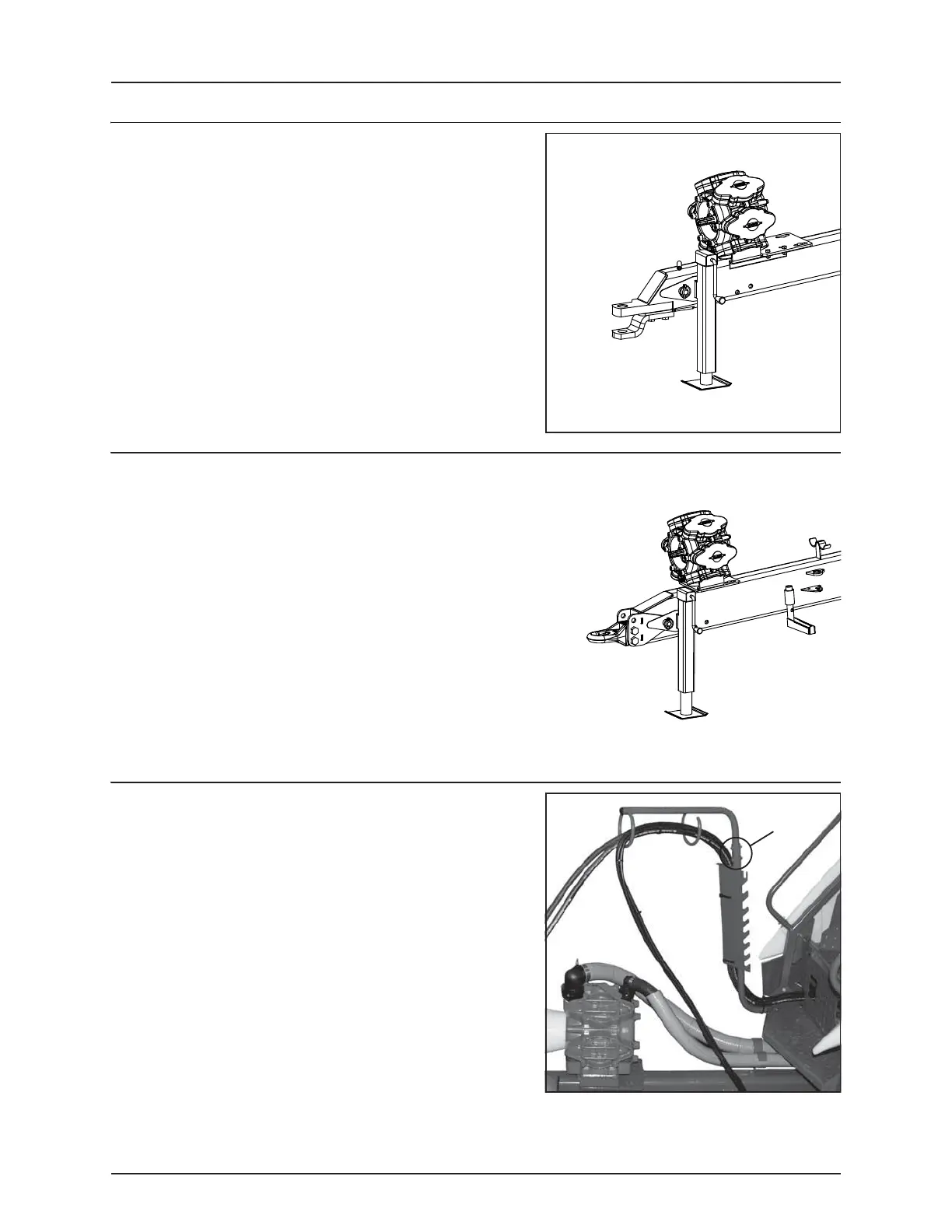

Hitch - adjustment
The Navigator is equipped with a clevis hitch. The lower plate is attached
with two bolts and may be removed if needed. No other adjustment is
possible.
Hitch - adjustment (Navigator 6000)
The Navigator 6000 is equipped with a category 3 hitch. The height of
the hitch may be adjusted by removing two bolts and moving the hitch.
Swivel hose support
To prevent hoses and wiring from being damaged by the tractor wheels,
P.T.O. shaft etc. all hoses, cables and wires are held by the hose bracket
fitted to the sprayer platform. Check that the length of the hoses and
cables are sufficient by tight turns.
There are two bolts (A) that can be changed to adjust the swivel hose
support. By removing the bottom bolt, the hose support is free to swivel
as the sprayer turns. The top bolt can be placed in one of three holes to
vary the height of the support.
