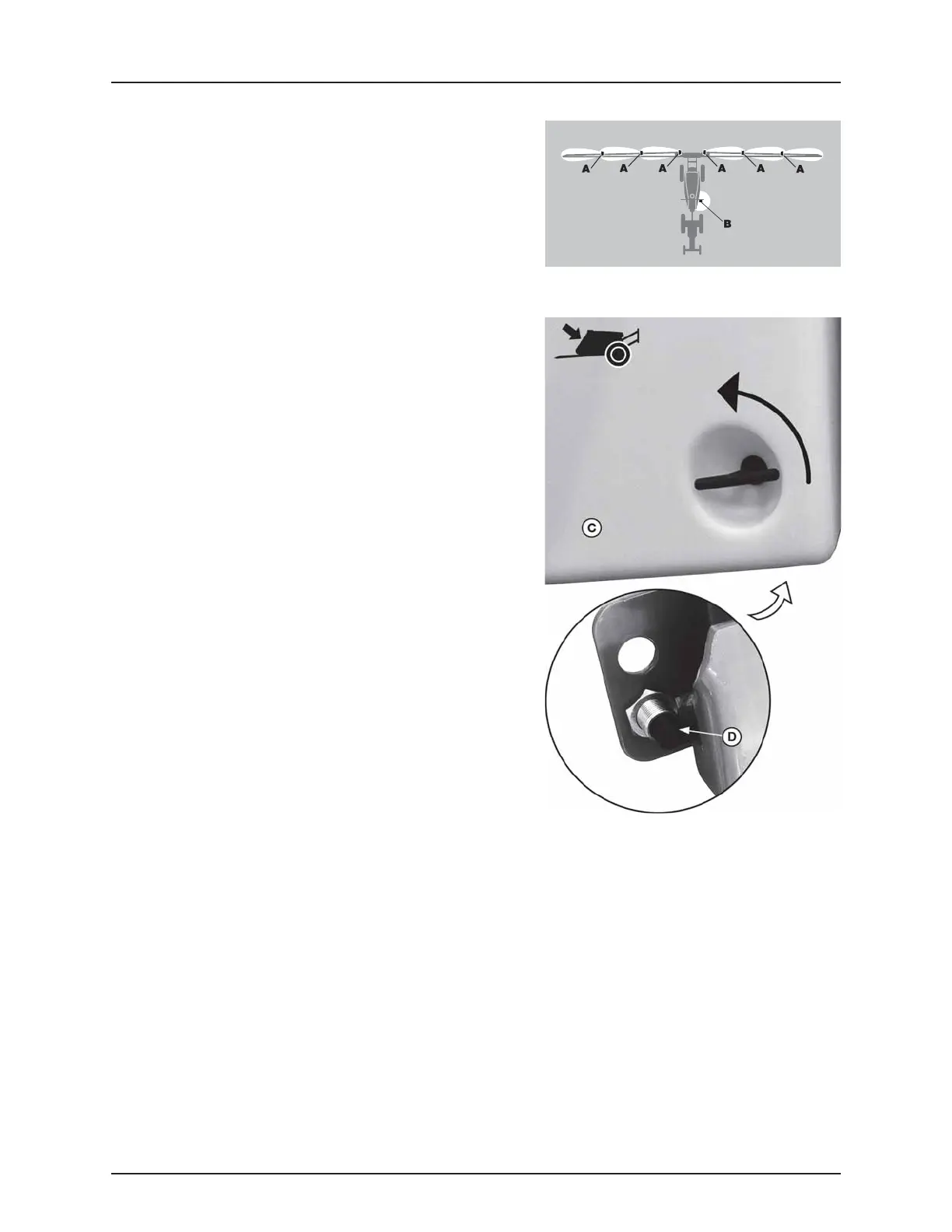

Night Spraying Light (Boom mounted lights)
Floodlights (A) are mounted on the spray boom, and they are positioned
to illuminate both boom wings for spraying at night.
The work light lamp (B) is also mounted to the railing of the platform
above the valves. This lamp is positioned to light up the HARDI®
TurboFiller and the valve system.
The boom lights (A) are turned on/off from the tractor:
• SPB/SPC booms - Hydraulic box optional function.
• DTZ booms - SetBox A/B optional function.
The work area light (B) is turned on/off by opening the left side cover (C).
Switch (D) inside the left side cover activates the light when the side
cover is open.
ATTENTION! Turn OFF all boom and work lights when driving on
public roads!
ATTENTION! If the lights do not function, check the cable
connections and check if the fuses are blown. See “Electrical
Schematic for Boom and Work Lights (DTZ Booms)” on page 110.
ATTENTION! Check frequently that the lights are clean and
without damage. Clean with a dry cloth if needed. Replace if
broken.
