6 - Maintenance
Lubrication
General Info
Always store lubricants clean, dry and cool - preferably at a constant temperature - to avoid contamination from dirt and
condensed water. Keep oil filling jugs, hoppers and grease guns clean, and clean the lubricating points thoroughly before
lubricating. Avoid skin contact with oil products for longer periods.
Always follow the quality and quantity recommendations. If no quantity is recommended, feed the lubricator until new
grease becomes visible.

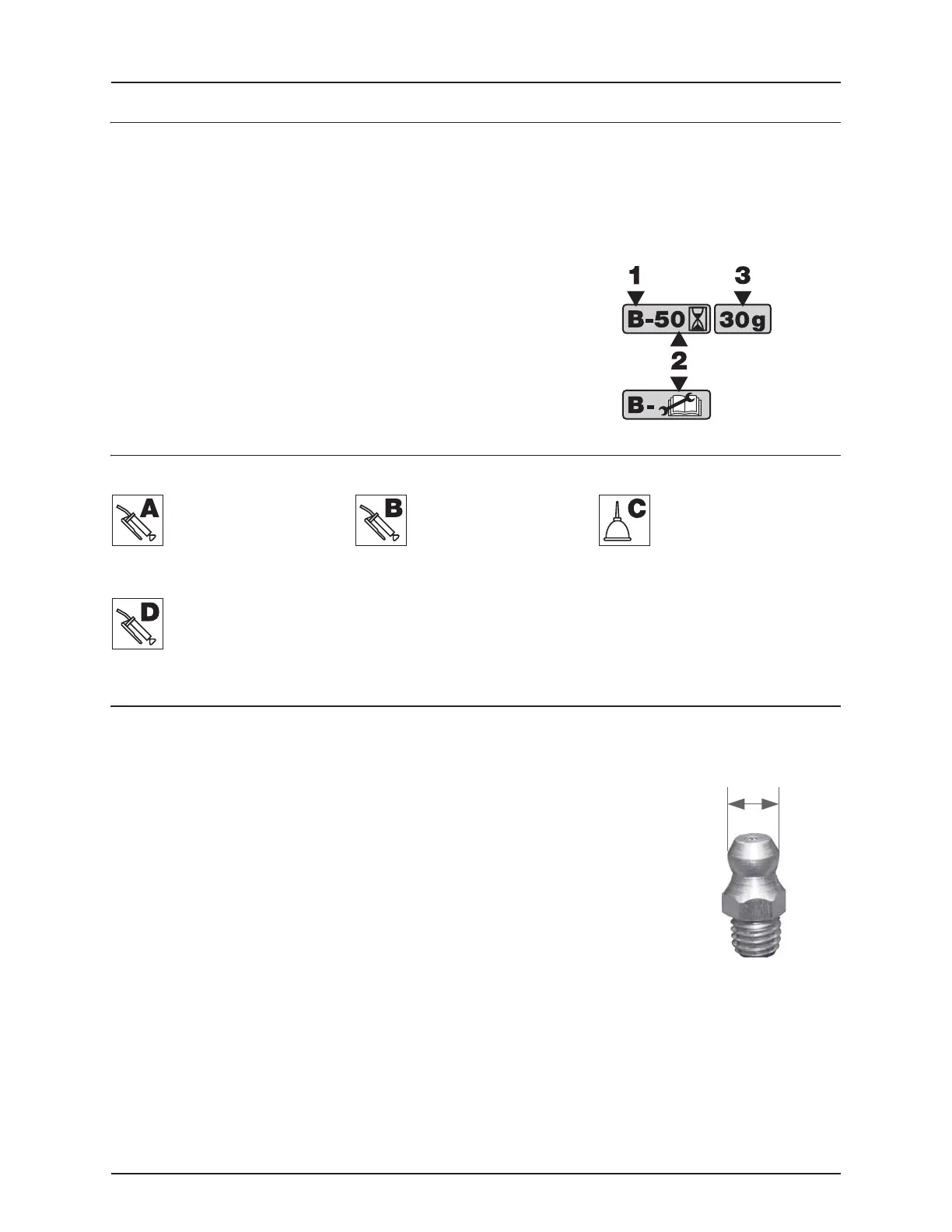

Pictograms in lubrication & oiling plans designate:
1. Lubricant to be used (see “Recommended lubricants” below).
2. Recommended intervals. Shown in hours or with a symbol for
occasional maintenance.
3. Amount to be used. Only shown if an amount is specified.
ATTENTION! If the sprayer has been cleaned with a high pressure
washer, lubrication of the entire machine is recommended.
Recommended lubricants
Grease Nipple
When lubricating the sprayer, please use a greasing gun which fits the
dimensions of the grease nipple.
ATTENTION! If grease is leaking from the nipple near its threaded
part, when grease is being applied, please tighten the nipple by
using a wrench or socket. Replace the nipple if it is damaged or
bent out of shape.
ATTENTION! If applying grease into the nipple seems difficult,
unscrew the nipple. Check if the nipple is blocked inside, or if the
spring-loaded ball is stuck. Clean or repair as needed.
BALL BEARINGS:
Universal Lithium grease, NLGI No. 2
CHEVRON Multifak EP 2
SHELL RETINAX EP2
CASTROL LMX GREASE
SLIDE BEARINGS:
Lithium grease with
Molybdenumdisulphide or graphite
SHELL RETINAX HDM2
CASTROL MOLYMAX
OIL LUB. POINTS:
TOTAL Transmission TM
SAE 80W/90
Castrol EPX 80W/90
SHELL Spirax 80W/90
Mobil Mobilube 80W/90
PUMPS:
Complex Lithium grease, NLGI No. 1
Viscosity @104°F (40° C) > 460 cSt
SHELL Gadus S3 V550L 1
Mobilgrease XHP 462
TOTAL Multis Complex SHD 460
Nipple head type: DIN 71412
Nipple head size (A): 6.5 mm
