5 - Operation
52

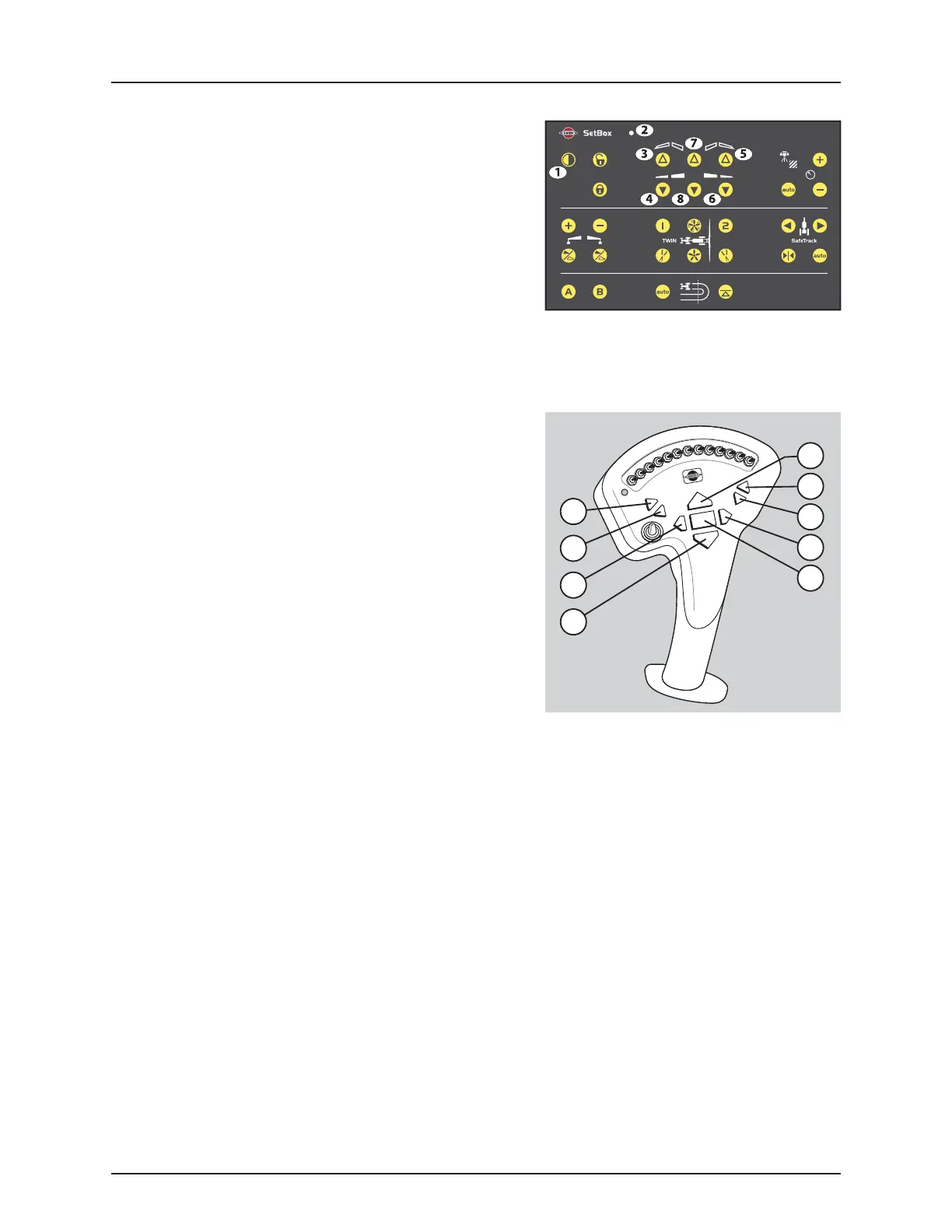

Maneuvering of the SPB, 80’-100’ SPC booms - (ISOBUS / HC 8600 / HC9600)
To unfold the boom, do the following:
1. Press switch (H) to raise the boom clear of the transport brackets.
2. Press switches (B) and (D) to lower individual tilt rams.
3. Press switches (4) and (6) to unfold the boom. Rear transport hooks
disengage automatically.
4. If only one side of the boom is to be used for spraying, first unfold
the boom completely. Then press switch (3) or (5) to fold the
desired side back in. Turn off the spray sections for the folded side
on the spray control unit.
5. Press switch (I) to lower the boom to correct height above crop or
ground level.
6. If equipped with Dual Fold boom, push switch (7) to fold 2nd outer sections in to reduced working width.
To fold the boom, do the following:
1. If equipped with Dual Fold boom, start with boom at maximum
working width. If necessary, unfold 2nd outer sections using
switch (8).
2. Press switch (H) to raise the boom to highest possible position.
3. Press switches (3) and (5) to fold the boom. Make sure to fold the
boom against the vertical slide pads.
4. Press switches (A) and (C) to raise the individual tilt rams.
5. Press switch (I) to lower the boom until the rear transport hooks are
firmly engaged.
6. Press switches (B) and (D) to lower the individual tilt rams until they
rest on the transport brackets.
€
DANGER! Be careful to avoid electrical lines when folding/unfolding Dual Fold boom. Outer sections fold/unfold
vertically.
±
WARNING! Ensure that the boom is clear from the transport brackets before unfolding.
±
WARNING! The folding functions (switches 3 - 8) must only be operated when the sprayer is stationary! Failure to do
so will damage the boom.
ATTENTION! There are stop switches located in the hydraulic lines of Dual Fold booms to prevent accidental damage
by folding/unfolding the 2nd outer sections while in transport position. Switches (7) & (8) (vertical fold) will only
function when the inner wings (horizontal fold) are completely unfolded in the operating position.
ATTENTION! The SPB, SPC & Dual Fold SPC HZ booms cannot be operated with the tractor’s hydraulic levers.
ATTENTION! It is not advisable to go directly from transport position to spray position with one side only. Both wings
must first be completely unfolded and then one side folded back in.
A
B
E
I
H
C
F
G
D
