Easily distinguishable
green/red
Position Indicator
Steel Cut Gearing
Inside the actuator
Heavy Duty
Drive Motor
Easily accessible switch &
cam stacks
Modular Control Cards including
internal heater, 2 position,
3 position, proportional control,
custom interfaces.
Worm Override Shaft
Aluminum Casting
NEMA 4X Protection
Aluminum Casting
NEMA 4X Protection
NEMA 4X
Cover Seal
Captured
Cover Screws
UV / Impact resistant
protective Indicator Cover
NEMA 4X
Sealed Conduit Entry
(2) - 3/4”
Removable Wiring Block
Changeable ISO5211
Mounting System
Power and
End of Travel
Indicators
Torque Switch
Control PCB
Control knobs, keys,
or levers
Cast Aluminum
Control Housing
ISO5211 Double Square
Female Drive Socket
External
Mechanical Stop
Adjustments
Main Shaft Ball Bearings
Manual Override
Handwheel

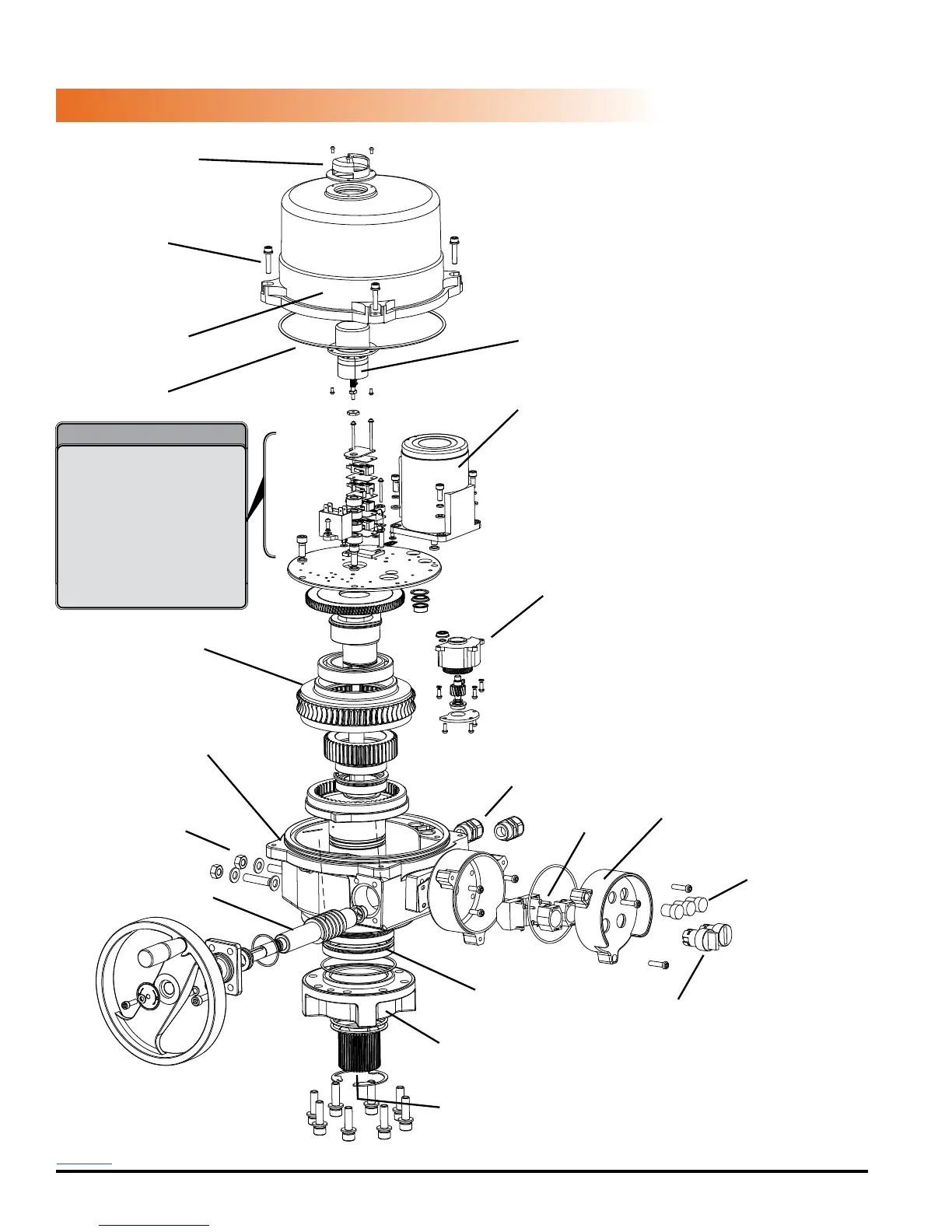

EXPLODED VIEW
