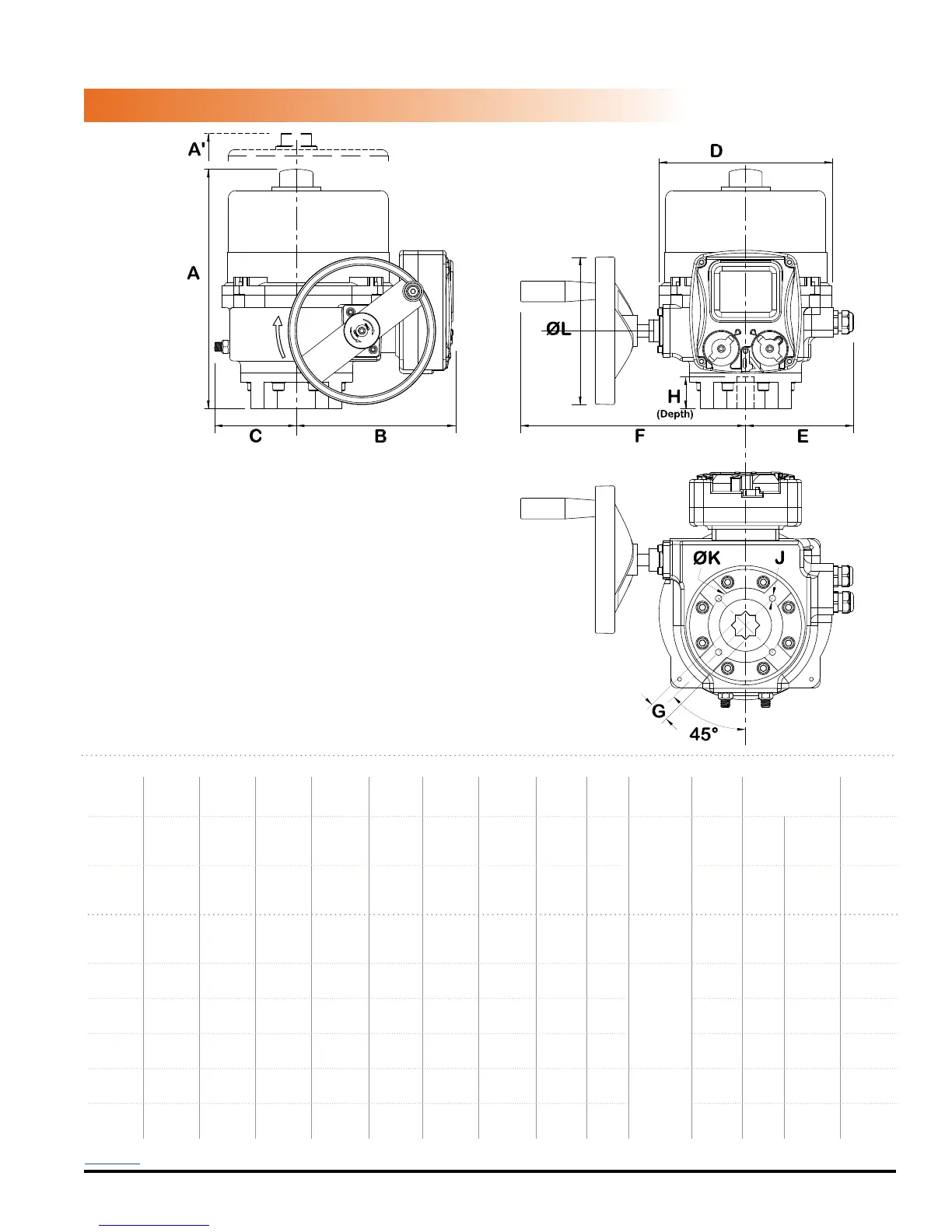

COVER REMOVAL
CLEARANCE
OUTPUT
SHAFT CW
MODEL A
in/mm
A'
in/mm
B
in/mm
C
in/mm
D
in/mm
E
in/mm
F
in/mm
G*
in/mm
H
in/mm
J*
in/mm
K*
in/mm
L
WEIGHT
lbs/kg
HRSN3A 10.45/265 6/150 7.35/187 3.11/79 8.50/216 4.73/120 9.45/240 0.669/17 1.38/35
(4) M8
X 20mm
Deep
F07
2.756/70
4.7/ 20
12.5
turns
90°
26.5/12
HRSN3B 10.45/265 6/150 7.35/187 3.11/79 8.50/216 4.73/120 9.45/240 0.669/17 1.38/35
F07
2.756/70
4.7/120
12.5
turns
90°
26.5/12
HRSN4A 12.64/321 7.87/200 8.78/223 4.06/103 10.31/262 5.91/150 11.69/297 0.866/22 2.17/55
(4) M10
-1.5 X
20mm D
F10
4.02/102
7.76 /
197
14.5 turns
90°
51/23
HRSN4B 12.64/321 7.87/200 8.78/223 4.06/103 10.31/262 5.91/150 11.69/297 1.063/27 2.17/55
(4) M12
-1.75 X
25mm D
F12
4.92/125
7.76 /
197
14.5 turns
90°
51/23
HRSN4C 12.64/321 7.87/200 8.78/223 4.06/103 10.31/262 5.91/150 11.69/297 1.063/27 2.17/55
F12
4.92/125
7.76 /
197
14.5 turns
90°
51/23
HRSN4D 12.64/321 7.87/200 8.78/223 4.06/103 10.31/262 5.91/150 11.69/297 1.063/27 2.17/55
F12
4.92/125
7.76 /
197
14.5 turns
90°
51/23
HRSN4E 14.88/378 9.84/250 9.49/241 4.69/119 11.54/293 6.34/161 13.62/346 1.063/27 2.56/65
(4) M16
-2.0 X
25mm D
F14
5.51/140
11.42 /
290
16 turns
90°
82/38
HRSN4F 14.88/378 9.84/250 9.49/241 4.69/119 11.54/293 6.34/161 13.62/346 1.417/36 2.56/65
F14
5.51/140
11.42 /
290
16 turns
90°
82/38
*Consult Hayward Flow Control for optional ISO patterns
DIMENSIONS
MECHANICAL DATA
DIMENSIONAL DATA
HRCL, HRCD 3A~4F
