Hayward HRSN2 series User Manual

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
HRSLCSSPLMNTIOM Rev A
Page 40 of 42
Hayward Flow Control
1-888-HAY-INDL (1-888-429-4635)
www.haywardowcontrol.com
External
Mechanical Stop
Adjustments
Easily distinguishable
green/red
Position Indicator
Steel Cut Gearing
Steel Cut
Gearing
Inside the actuator
Heavy Duty
Drive Motor
Easily accessible switch &
cam stacks
Modular Control Cards including
internal heater, 2 position,
3 position, proportional control,
custom interfaces.
Worm Override Shaft
Torque
Switches
Aluminum Casting
NEMA 4X Protection
Aluminum Casting
NEMA 4X Protection
Aluminum Casting
NEMA 4X Protection
NEMA 4X
Cover Seal
Captured
Cover Screws
UV / Impact resistant
protective Indicator Cover
Removable Wiring Block
Position Indicator
ISO5211 Double
Square Female
Drive Socket
Main Shaft
Ball Bearings
Manual Override
Handwheel
NEMA 4X
Sealed Conduit Entry
(2) - 3/4”
Status, Position and
Fault Display
Control PCB
Non-Intrusive
Magnetic Switches
Cast Aluminum
Control Housing
Lower casting has
been rotated for clarity
ISO5211
Mounting System

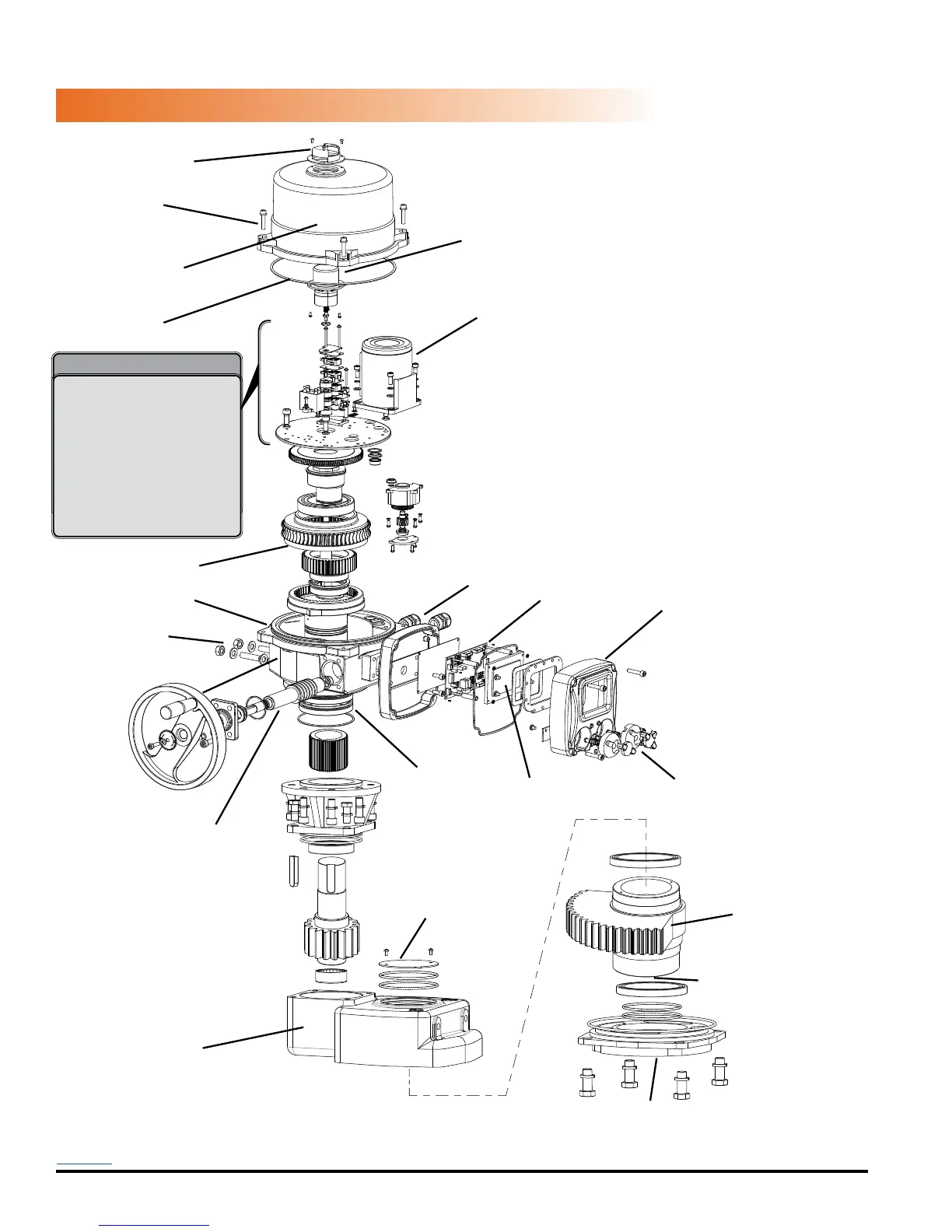

EXPLODED VIEW
HRCL, HRCD 5A~6A
MECHANICAL DATA
Back to TOC
