CP : control panel, FC : frequency converter, SB : supply board, CB : cooling board, CC : control cable, LL : lid locking, BC : braking chopper,
BR : brake resistor, MR : mains reset, EC : error cause, ES : error consequence, ER : error remedy, M : measurements, ECR : error-code reset
23/51
5. Factory setting

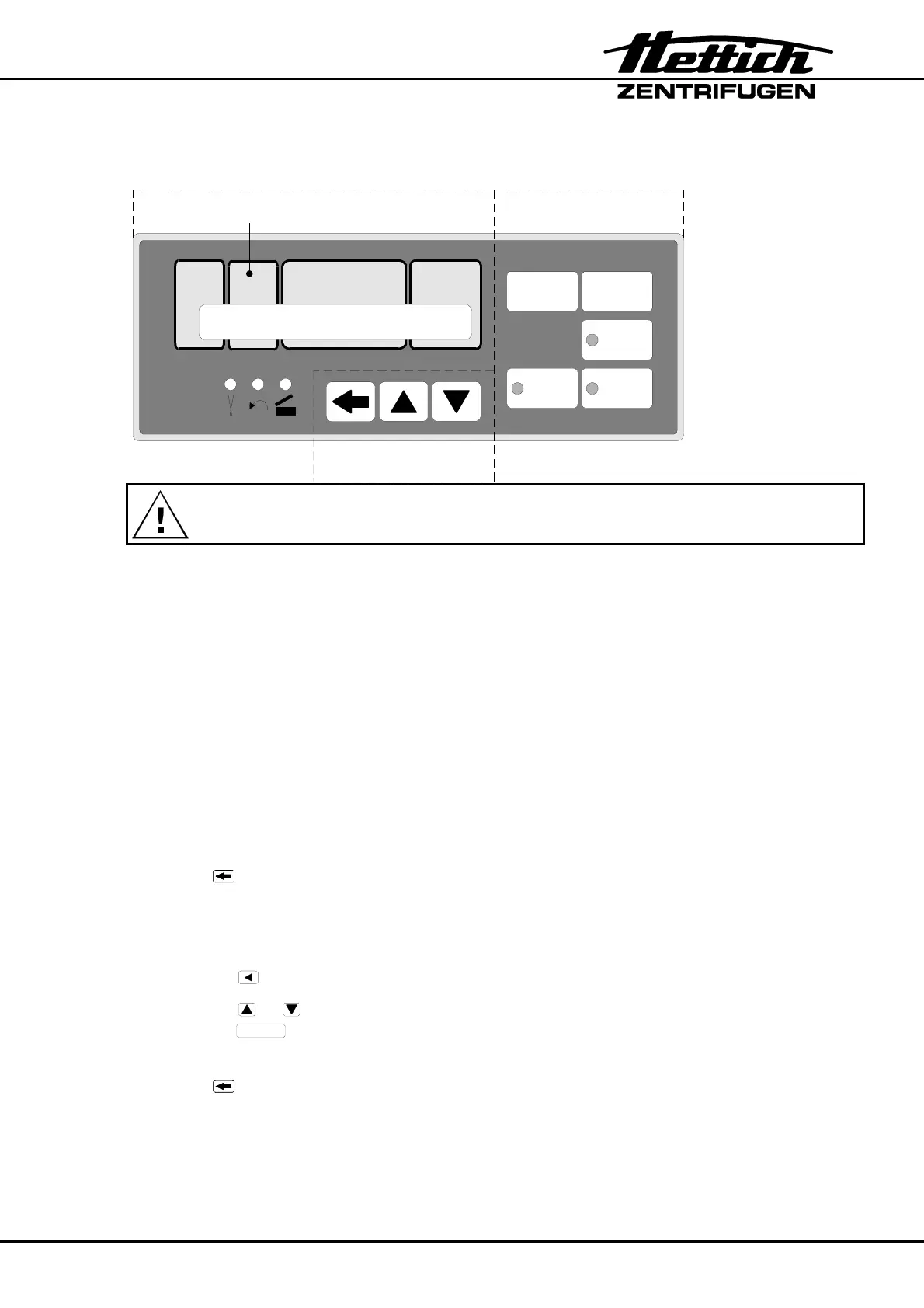

5.1. Control panel
START
RCF
IMPULS
STOP
T / °C
>RCF<
RPM
t / min:s
PROG
T / °CT / °CT / °CPROG
(Only in a cooled
centrifuge)
Display field
Control field
Entry field
.
The EPROM of the CP must, in all circumstances, correspond to the machine
version and the cooling version.
5.2. Procedure for initialisation
An initialization must be carried out:
• after replacing the FC.
The frequency converter must be adjusted to the centrifuge.
Requirement: 1. Rotor has stopped.
2. LL is open.
3. Mains switch is OFF.
4. Plug on coding strip X3 on the CP has a jumper in slot 3 and
in slot 4 (initialisation position).
• Mains switch is ON →
Display:
INIT - MODE
• Press
key
→
Display:
VERS 12 °C / * 01
↑ ↑
machine version
Cooling version (01 = with cooling, 00 = without cooling)
• Press the
key →
Display:
IMBALANCE MODE 2
• Press the or key to set IMBALANCE MODE 1 or IMBALANCE MODE 2. Now
press the
START
key to save this setting. Information about IMBALANCE MODE see
chapter "Imbalance Mode".
• Press key
→
Display:
PARAM - INIT 0000
↑ ↑
machine version
Number of initialisations
