9.12.2. Short the mains choke coil
In countries, in which the European standard EN 61000-3-2 applies it is not
allowed to short the mains choke coil.
The mains choke coil reduces the mains input current below the limit values
stated in the above mentioned European standard.
If the centrifuge is run with undervoltage, that is mains frequency 50 Hz with a voltage
< 205 V or mains frequency 60 Hz with a voltage < 210 V the voltage drop of the mains
choke coil can cause the error FU / CCI - ERROR 62.
The short of the mains choke coil will increase the supply voltage of the frequency
converter.
• Pull both plugs (A) and remove the cable, see Figure 1.
• Pull the plug (B) from the mains choke coil (see Figure 1) and plug it onto the free
connector from the radio interference suppression filter (C), see Figure 2.

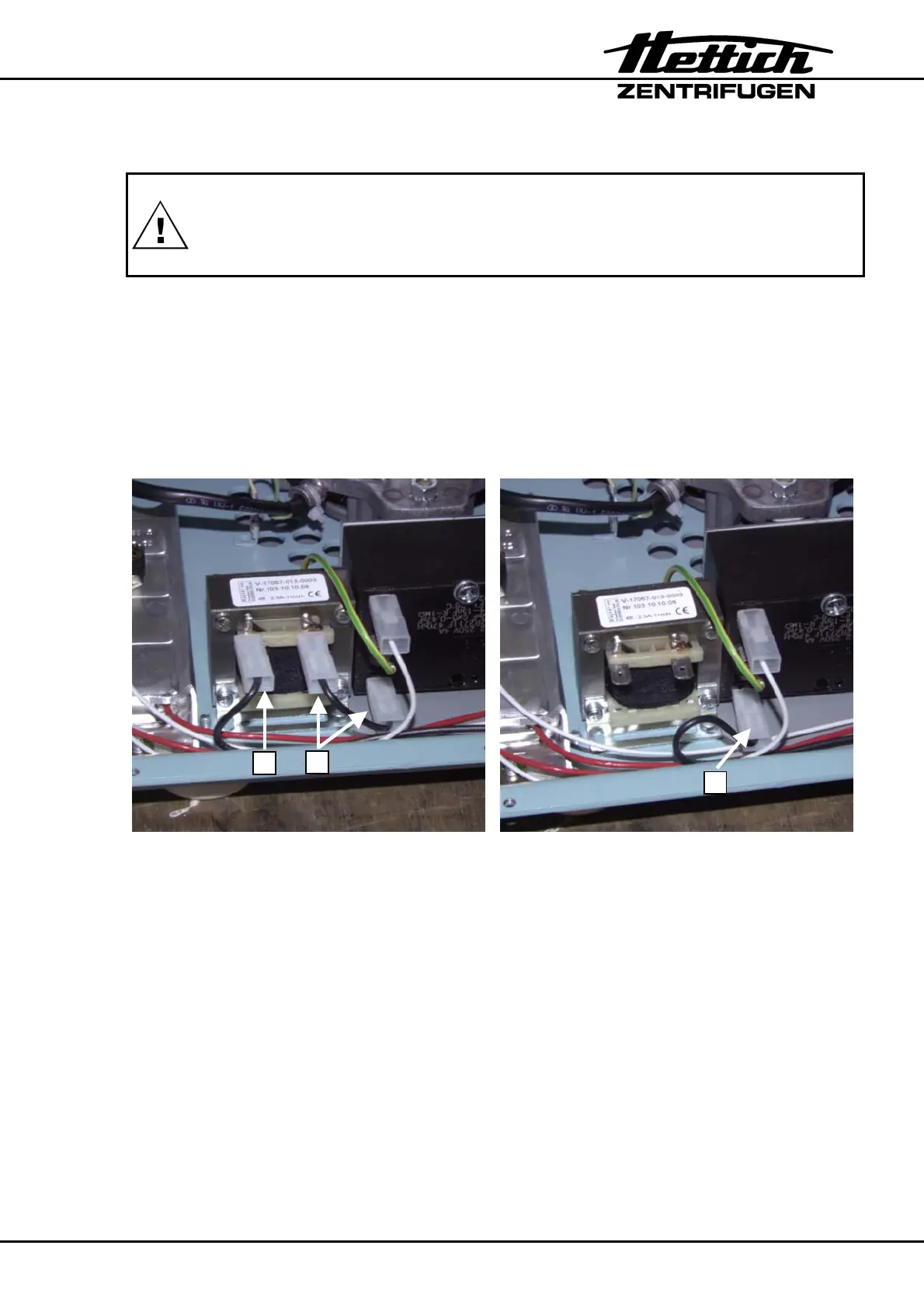

Figure 1 Figure 2
9.13. Mains switch Q1
• Press mains switch out of lower part of housing.
• Remove all plugs at mains switch.
• Replace mains switch.
