Digital Video Recorder User Manual
125

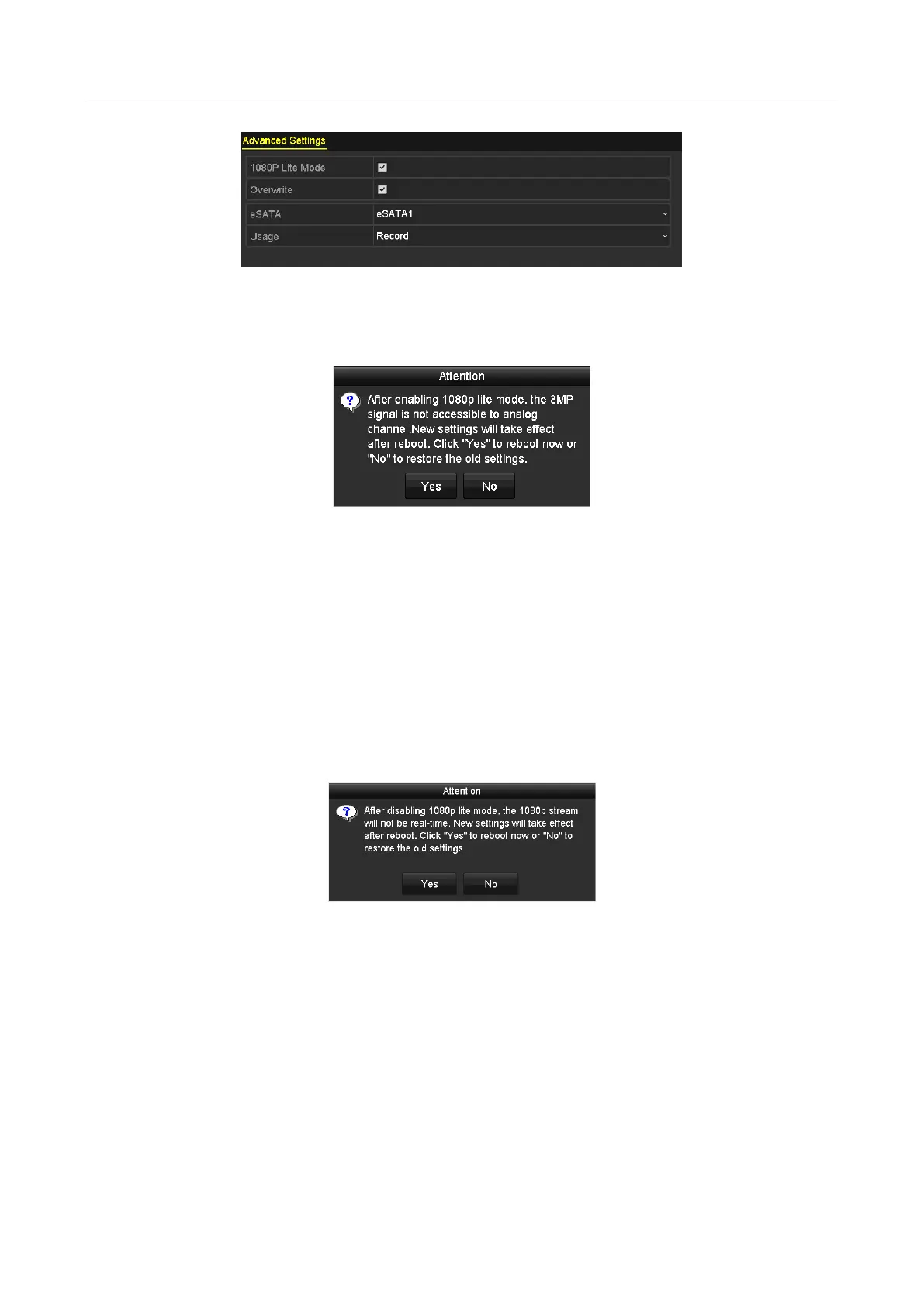

Figure 5-44 Advanced Interface (for DS-7300/8100HQHI-F/N)
Step 3 Check the checkbox of 1080P Lite Mode and click Apply to pop up the attention box. After
enabling 1080p lite mode, the 3 MP signal is not accessible to analog channel.
Figure 5-45 Attention
Step 4 Click Yes to reboot the device to have new settings taken effect.
Task2: Disabling the 1080P Lite Mode
Step 1 Enter the Record menu
Menu > Record
Step 2 Click Advanced to enter the advanced interface.
Step 3 Uncheck the checkbox of 1080P Lite Mode and click Apply. The following attention box
pops up:
Figure 5-46 Attention
Step 4 Click Yes to reboot the device to activate the new settings or No to restore the old settings.
 For HGHI-F series DVR:
Task1: Enabling the 1080P Lite Mode
Step 1 Enter the Record menu
Menu > Record
Step 2 Click Advanced to enter the advanced interface.

HIKVISION DS-7108HGHI-F1 Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	8
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (typical)	12 W

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
