HIKVISION DS-7108HGHI-F1 User Manual

Digital Video Recorder User Manual
231

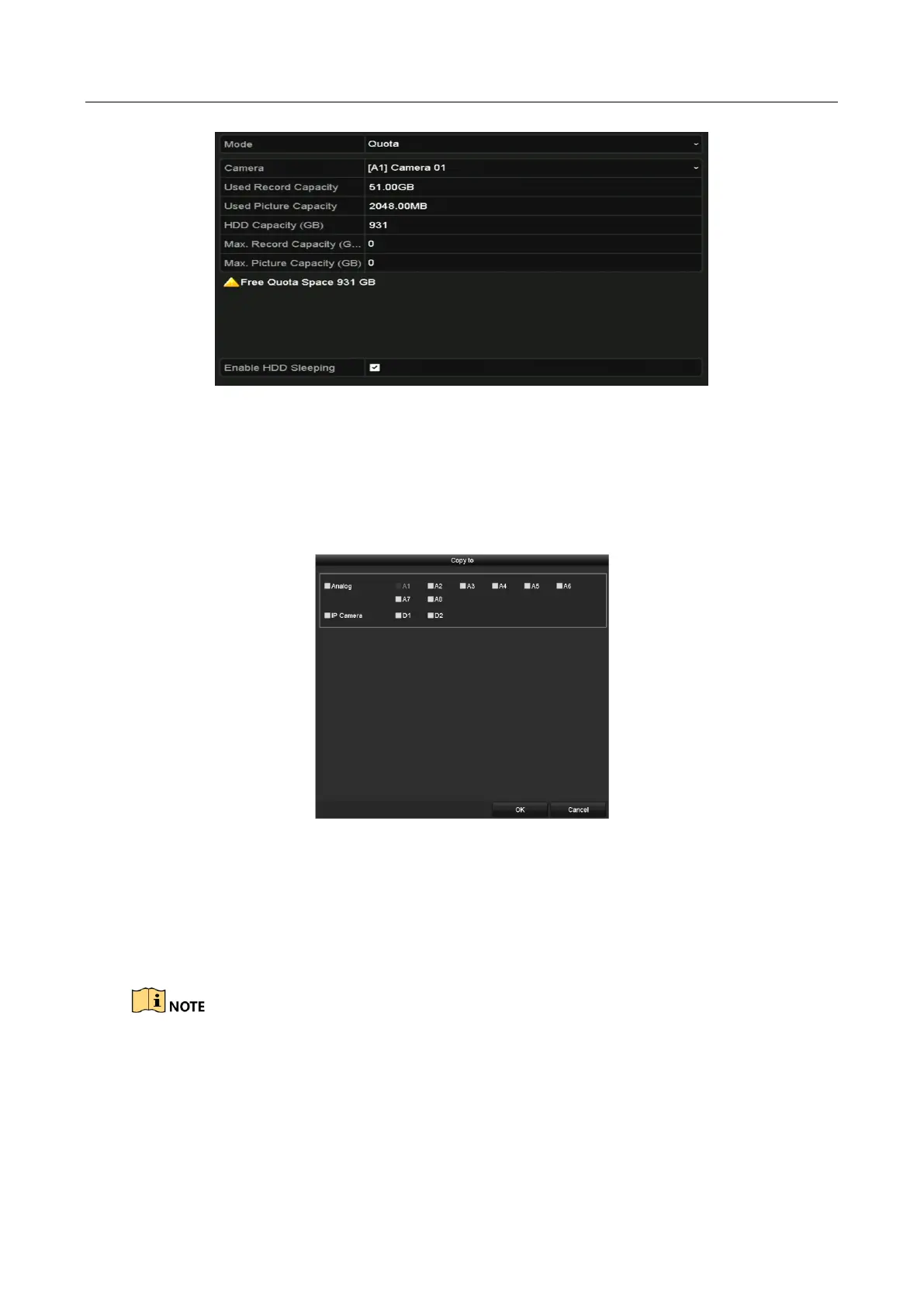

Figure 14-16 Storage Mode Settings Interface
Step 4 Select a camera for which you want to configure quota.
Step 5 Enter the storage capacity in the text field of Max. Record Capacity (GB).
Step 6 You can copy the quota settings of the current camera to other cameras if required. Click
the Copy button to enter the Copy Camera interface, as shown in Figure 14-17.
Figure 14-17 Copy Settings to Other Camera(s)
Step 7 Select the camera (s) to be configured with the same quota settings. You can also click the
checkbox of Analog to select all cameras.
Step 8 Click the OK button to finish the Copy settings and back to the Storage Mode interface.
Step 9 Click the Apply button to apply the settings.
If the quota capacity is set to 0, then all cameras will use the total capacity of HDD for record.
14.5 Configuring Cloud Storage
Purpose

HIKVISION DS-7108HGHI-F1 Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	8
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (typical)	12 W

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
