HIKVISION DS-7108HGHI-F1 User Manual

Digital Video Recorder User Manual
222

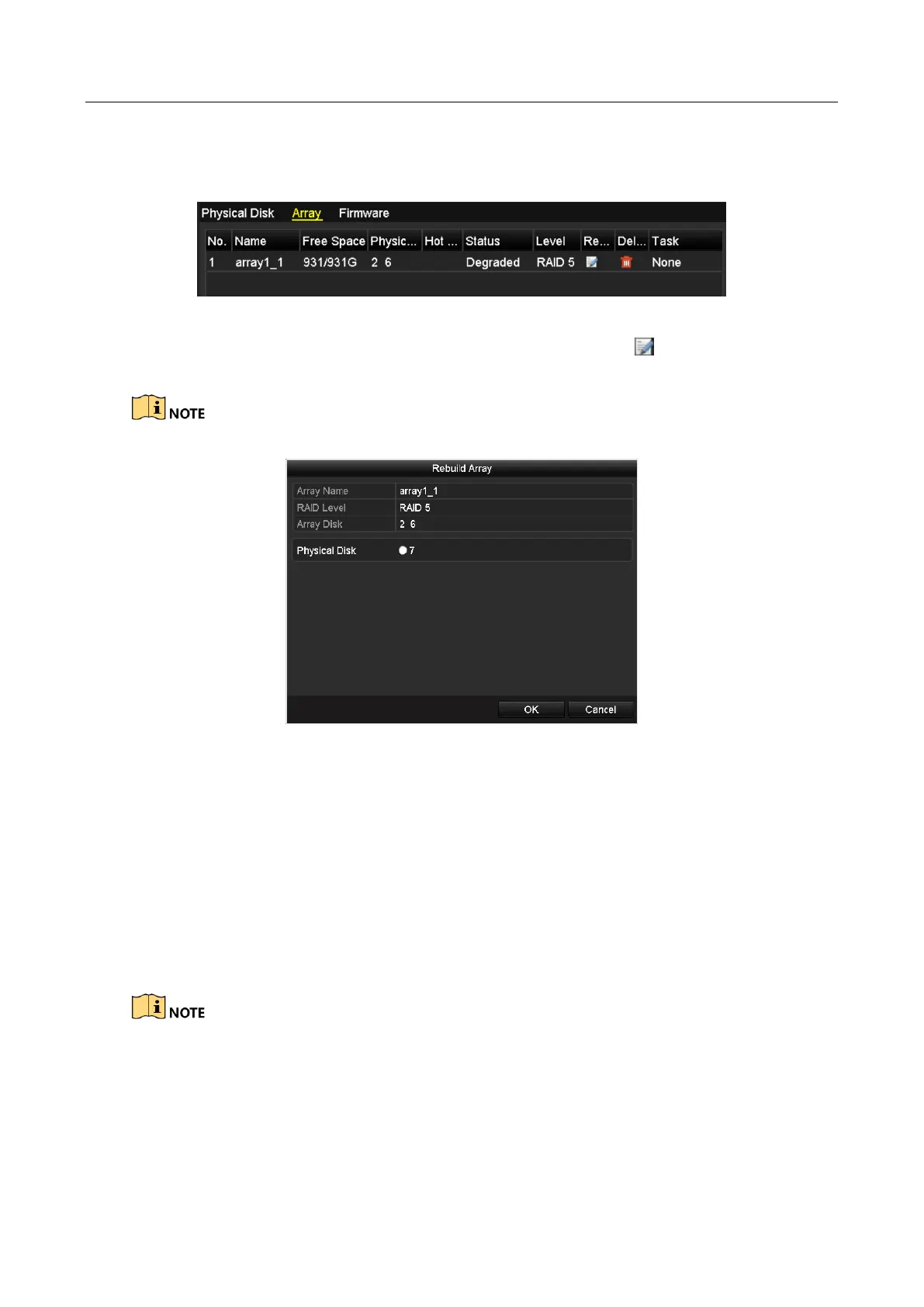

Step 1 Enter the Array Settings interface. The disk 3 is lost.
Menu > HDD > RAID > Array
Figure 13-13 Array Settings Interface
Step 2 Click Array tab to return to the Array Settings interface and click to configure the array
rebuild.
At least one available physical disk should exist for rebuilding the array.
Figure 13-14 Rebuild Array Interface
Step 3 Select the available physical disk and click OK button to confirm to rebuild the array.
Step 4 The “Do not unplug the physical disk when it is under rebuilding” message box pops up.
Click OK button to start rebuilding.
Step 5 You can enter the Array Settings interface to view the rebuilding status.
Step 6 After rebuilding successfully, the array and virtual disk will restore to Functional.
13.3 Deleting Array
Deleting array will cause to delete all the data saved in the disk.
Step 1 Enter the Array Settings interface.
Menu>HDD>RAID>Array

HIKVISION DS-7108HGHI-F1 Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	8
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (typical)	12 W

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
