Digital Video Recorder User Manual
172

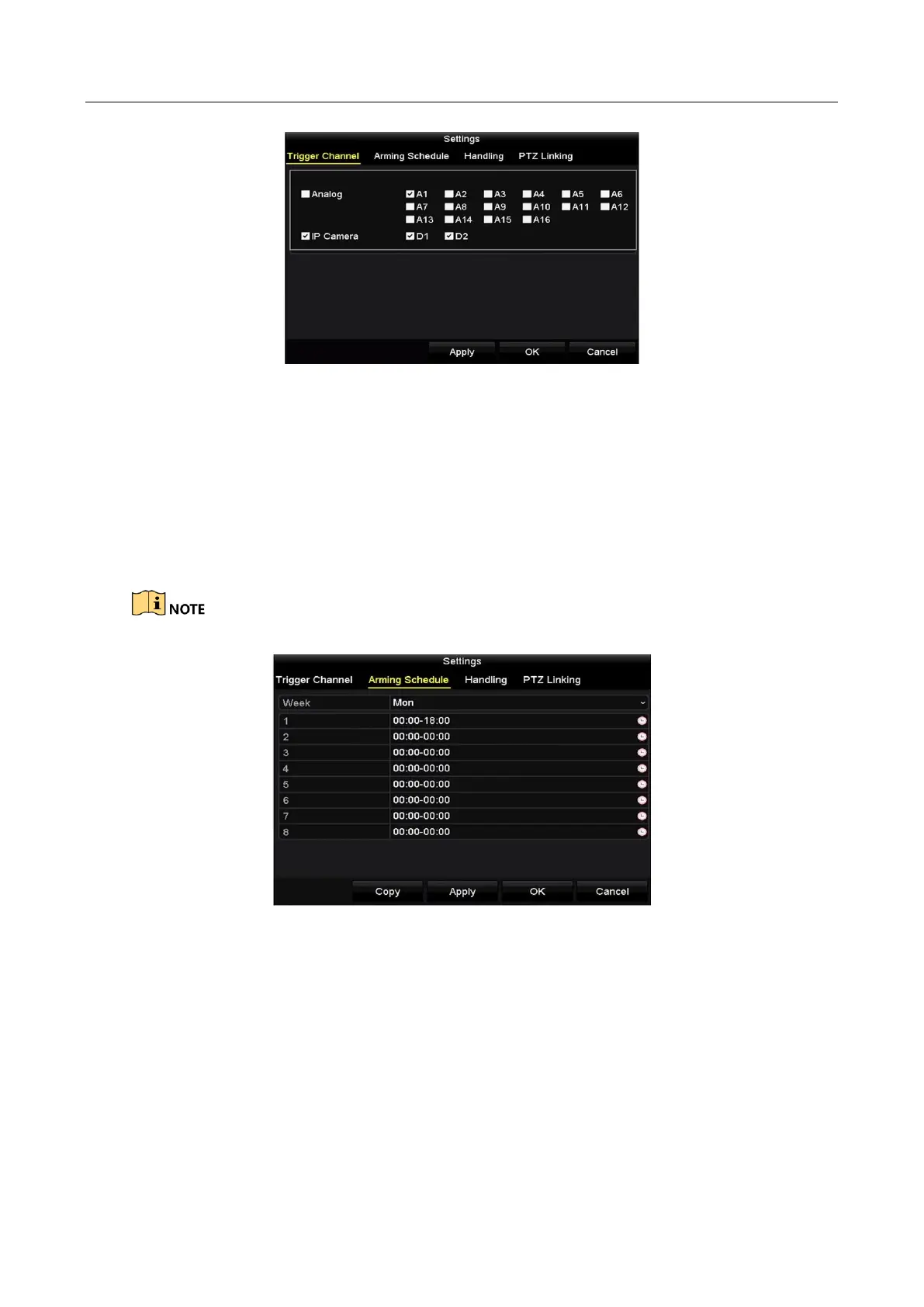

Figure 9-15 Set Trigger Cameras of POS
Step 4 Click Trigger Channel tab and select one or more channels to record or become full-screen
monitoring when POS alarm is triggered.
Step 5 Set arming schedule of the channel.
Select Arming Schedule tab to set the channel’s arming schedule.
Choose one day of a week and up to eight time periods can be set within each day. Or you
can click the Copy button to copy the time period settings to other day(s).
Time periods shall not be repeated or overlapped.
Figure 9-16 Set Arming Schedule
Step 6 Click the Handling tab to set up alarm response actions of POS alarm (Refer to Chapter 8.7
Setting Alarm Response Actions).
Repeat the above steps to set up arming schedule of other days of a week.
Click the OK button to complete the POS settings of the channel.
Step 7 Select PTZ Linking tab and set PTZ linkage of the POS alarm.
To Next Page
