Digital Video Recorder User Manual
123
8.2 Setting Sensor Alarms
Purpose
Set up handling method of an external sensor alarm.
Step 1 Go to Menu > Configuration > Alarm > Alarm Input.

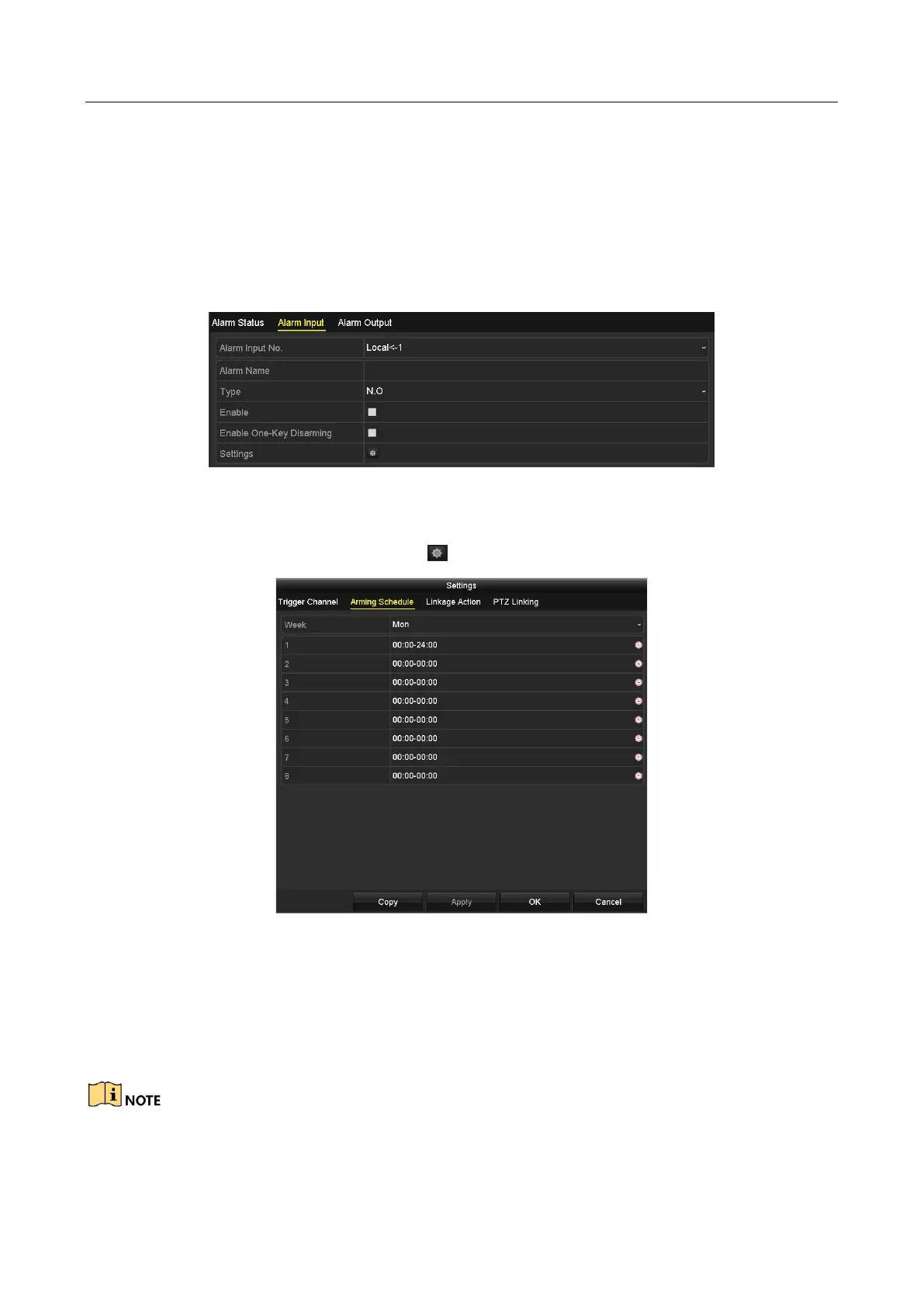

Figure 8-5 Alarm Input Settings Interface
Step 2 Set the handling method of the selected alarm input.
Check the Enable checkbox and click button to set its alarm response actions.
Figure 8-6 Set Arming Schedule of Alarm Input
Step 3 Select Trigger Channel tab and select one or more channels which will start to record or
become full-screen monitoring when an external alarm input is triggered.
Step 4 Select Arming Schedule tab to set the channel’s arming schedule.
Select one day of a week and maximum eight time periods can be set within each day.
Time periods shall not be repeated or overlapped.
