Digital Video Recorder User Manual
125
Step 8 (Optional) Enable the one-key disarming for local alarm input 1 (Local<-1).
1) Check the checkbox of Enable One-Key Disarming.
2) Click the Settings button to enter the linkage action settings interface.
3) Select the alarm linkage action (s) you want to disarm for the local alarm input 1. The
selected linkage actions include the Full Screen Monitoring, Audible Warning, Notify
Surveillance Center, Send Email, Upload Captured Pictures to Cloud and Trigger Alarm
Output.

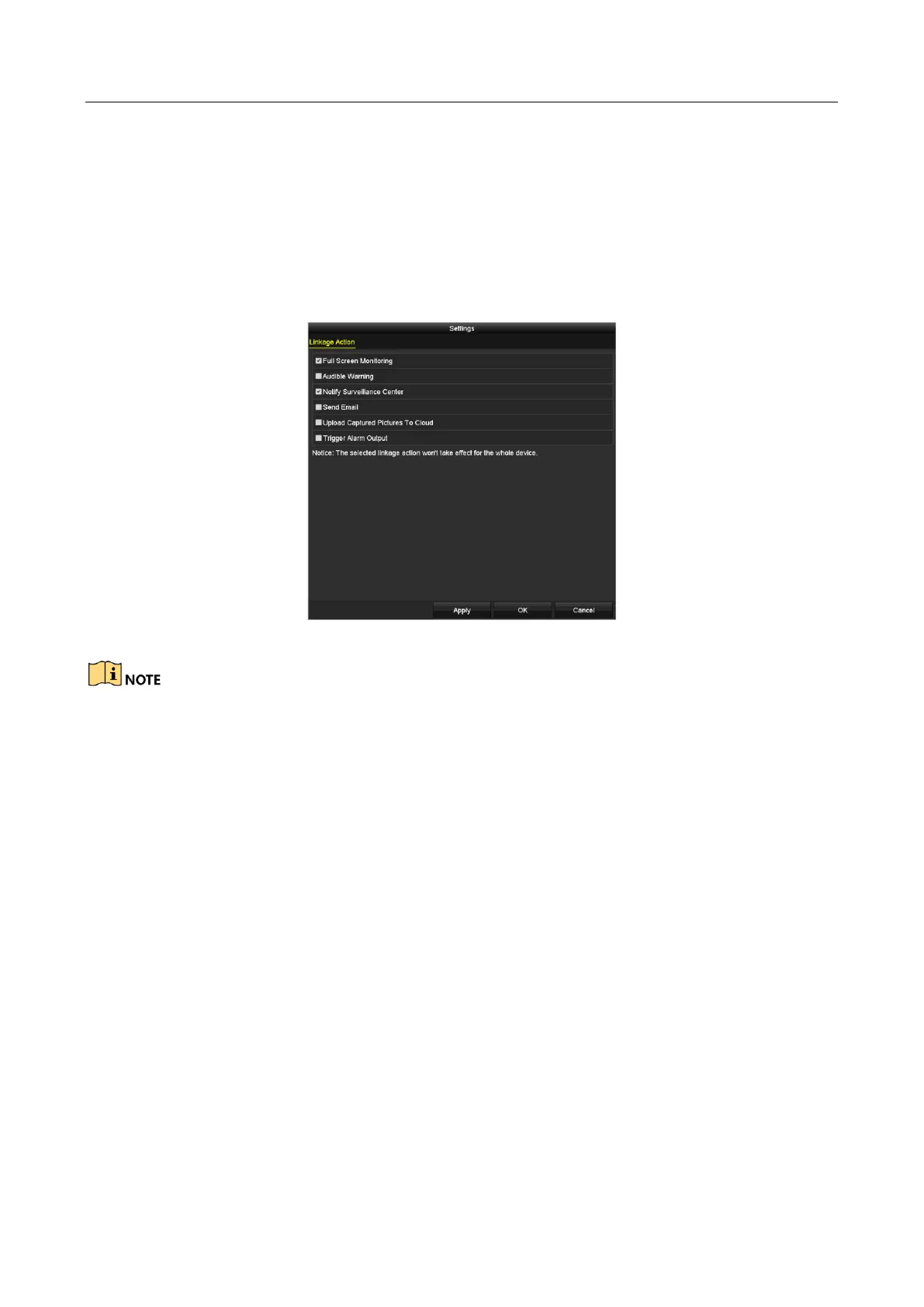

Figure 8-9 Disarm Linkage Actions
When the alarm input 1 (Local<-1) is enabled with one-key disarming, the other alarm input
settings are not configurable.
8.3 Detecting Video Loss
Purpose
Detect video loss of a channel and take alarm response action(s).
Step 1 Go to Menu > Camera > Video Loss.
To Next Page
