Digital Video Recorder User Manual
86

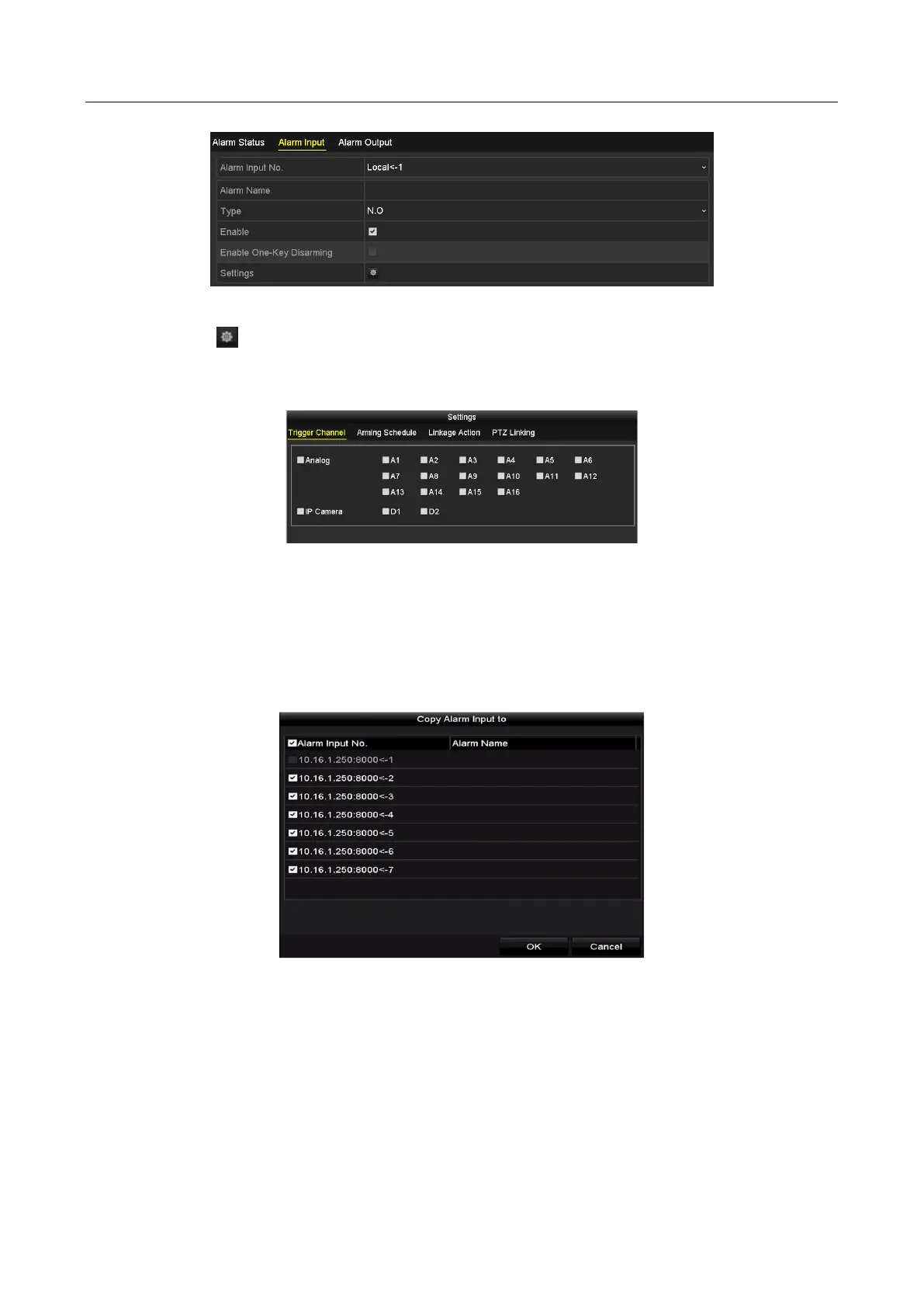

Figure 5-16 Enable Alarm
Step 6 Click the button after Settings to set the triggered channels, arming schedule, linkage
actions and PTZ linking. Refer to step 4 of Chapter 5.2 Configuring Recording Schedule for
detailed operations.
Figure 5-17 Alarm Handling
Step 7 Click Apply to save the settings.
Repeat the steps from 1 to 8 to configure other alarm input parameters.
If the settings can also be applied to other alarm inputs, click Copy and choose the alarm
input number.
Figure 5-18 Copy Alarm Input
5.5 Configuring Event Recording
Purpose
The event triggered recording can be configured through the menu. Then events include the
motion detection, alarm and VCA events (face detection/face capture, line crossing detection,
