Digital Video Recorder User Manual
192
13.9 Configuring HDD Error Alarms
Purpose
You can configure the HDD error alarms when the HDD status is Uninitialized or Abnormal.
Step 1 Go to Menu > Configuration > Exceptions.
Step 2 Select the Exception Type to HDD Error from the drop-down list.
Step 3 Check the checkbox(s) below to select the linkage action(s) for HDD error, as shown in
Figure 12-26.
The linkage actions can be selected to: Audible Warning, Notify Surveillance Center, Send
Email and Trigger Alarm Output.

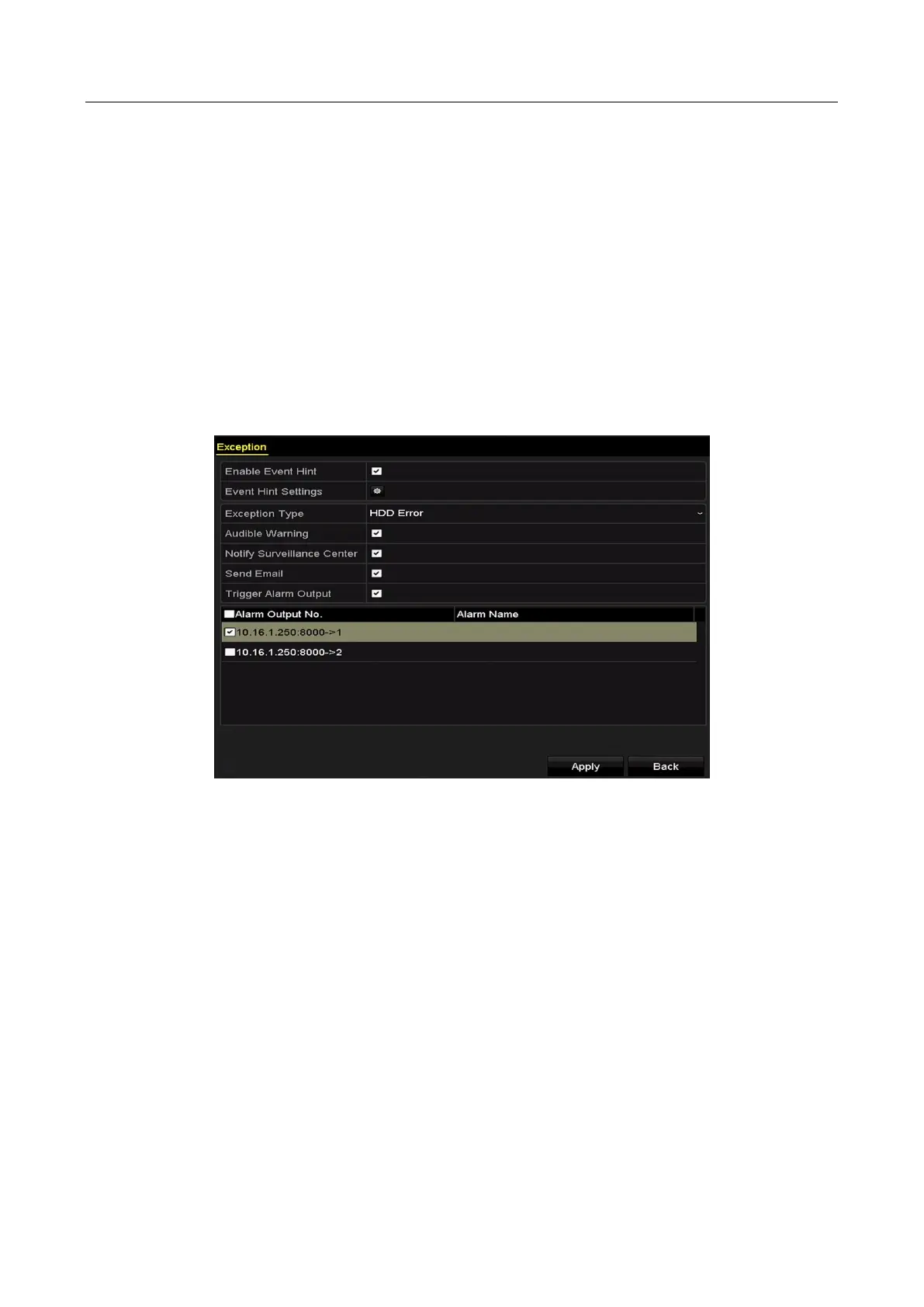

Figure 13-26 Configure HDD Error Alarm
Step 4 When the Trigger Alarm Output is selected, you can also select the alarm output to be
triggered from the list below.
Step 5 Click the Apply button to save the settings.
