HIKVISION DS-K1T673M User Manual

3.4.2 Mount Bracket
Steps
1.
Pass the bracket
boom through the turnsle, and x it into the turnsle with self-contained
nut. Adjust the bracket to the suitable angle, and x the nut ghtly by the wrench.

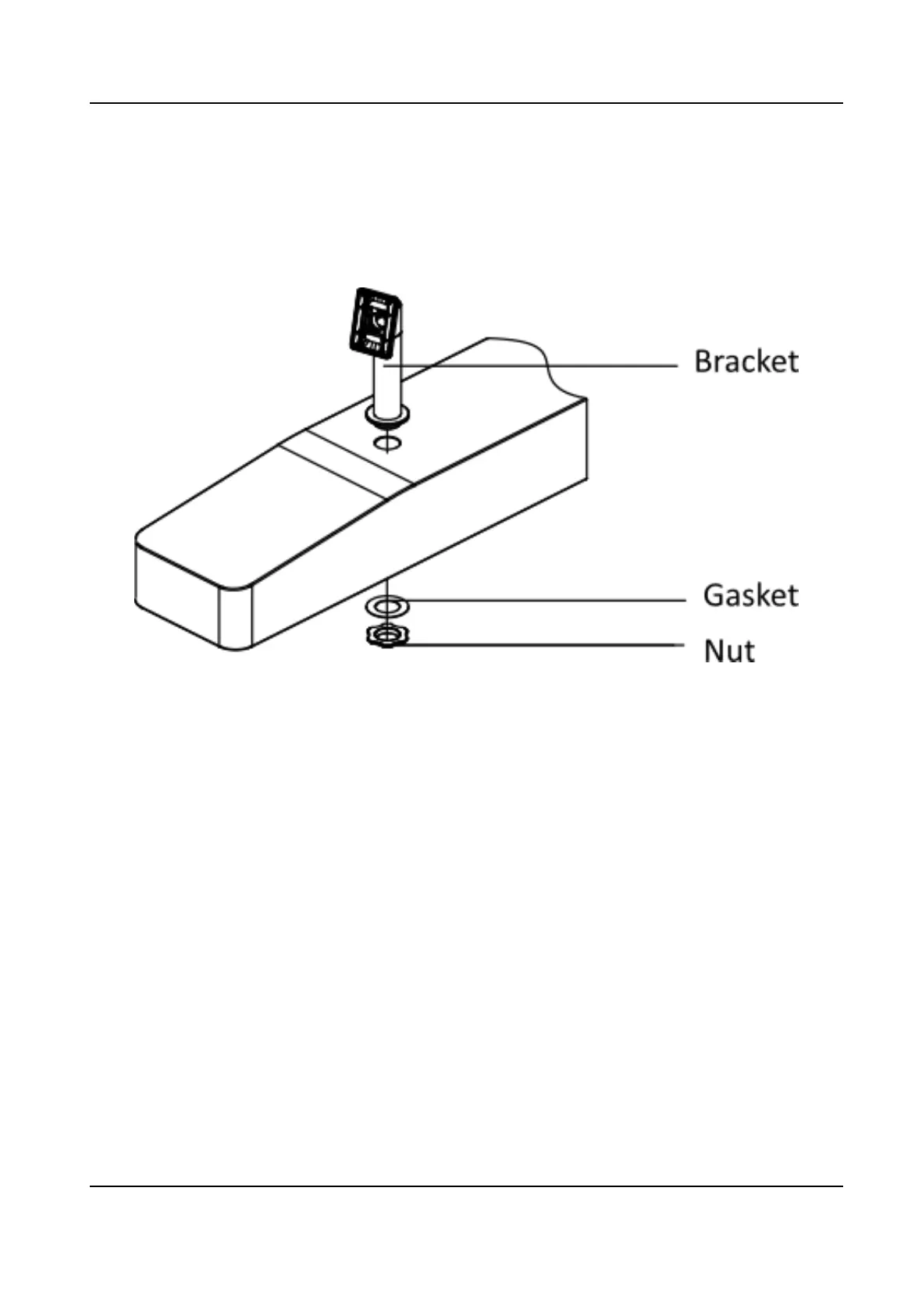

Figure 3-13 Fix Bracket
2.
Fix the mounng plate into the bracket by 4 K1M4×8-SUS screws.
DS-K1T673 Series Face Recognion Terminal User Manual
16
