HIKVISION DS-K1T673M User Manual

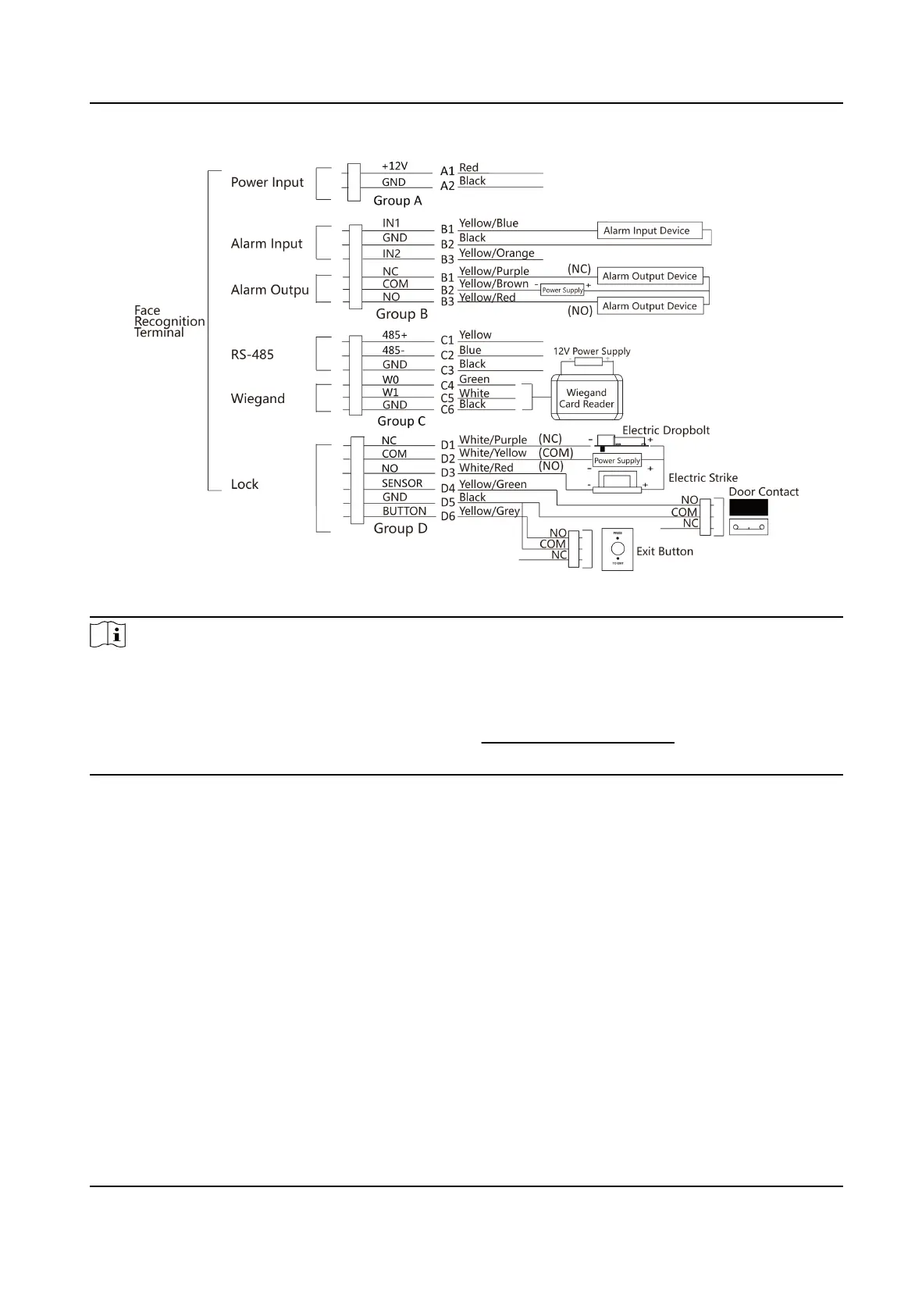

Figure 4-2 Device Wiring
Note
●
You should set the face recognion terminal's Wiegand direcon as Input to connect to a
Wiegand card reader. If connects to an access controller, you should set the Wiegand direcon as
Output to transmit authencaon informaon to the access controller.
●
For details about Wiegand
direcon sengs, see Set Wiegand Parameters .
●
Do not wire the device to the electric supply directly.
4.3 Wire Secure Door Control Unit
You can connect the terminal with the secure door control unit.
The wiring diagram is as follows.
DS-K1T673 Series Face Recognion Terminal User Manual
22
