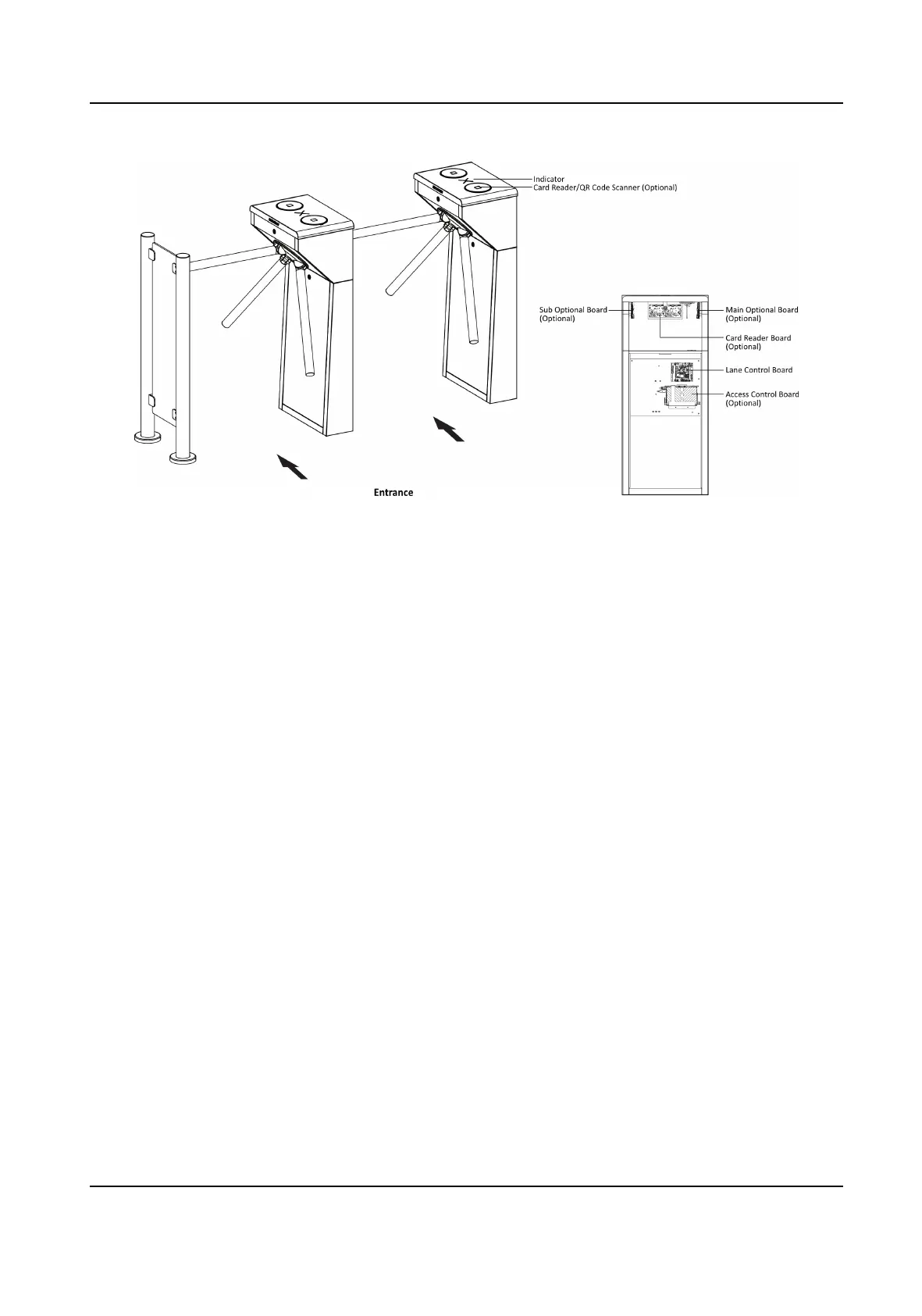

Figure 4-2 Components Diagram 1

4.2 Wiring Electric Supply

Wire electric supply with the power switch or power adapter in the pedestal. Terminal L (brown)

and terminal N (Blue) are on the switch, while terminal PE should connect to a ground wire (yellow

and green wire).

For product with power switch, the wiring diagram is as follows:

DS-K3G200(L)X Series Tripod Turnsle
