HIKVISION DS-K3G200LX-R/Dm55 User Manual

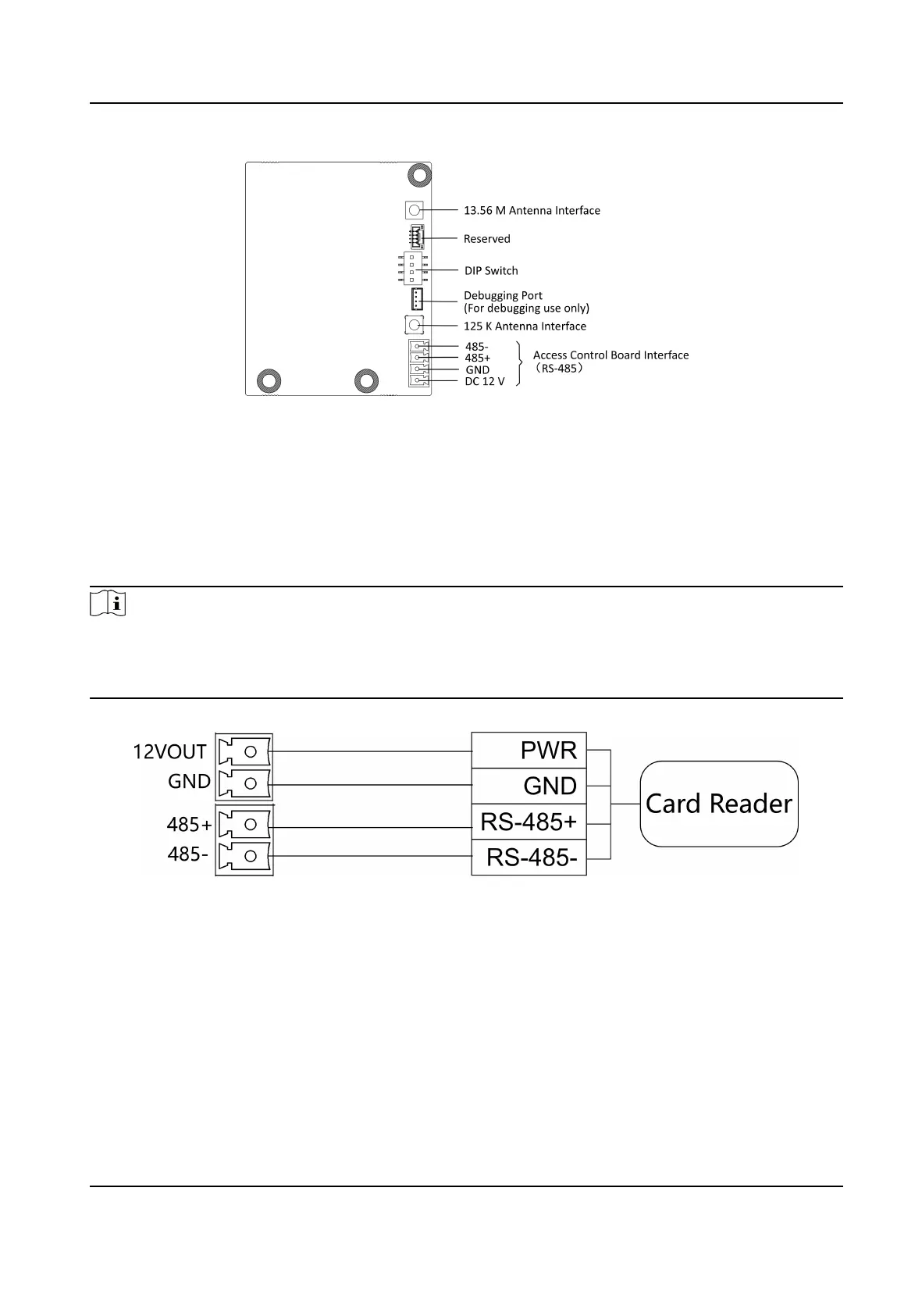

Figure 4-6 Card Reader Board
4.4.6 RS-485 Wiring
The RS-485 interfaces on the access control board and sub oponal board are suggested to
connect with the face
recognion module or the card reader. Here takes connecng with a card
reader as an example.
Note
●
If there are other RS-485 devices connecng, the ID of the RS-485 cannot be conicted.
●
The connected 12 V power interface for the face recognion terminal cannot be connected with
other 12 V devices.
Figure 4-7 Wiring RS-485
DS-K3G200(L)X Series Tripod Turnsle
15
