Figure 4-10 Remaining Closed
4.4.9 Exit Buon Wiring
The main and sub lane control board each has 1 buon interface, which can be connected to exit
buon or face recognion device.

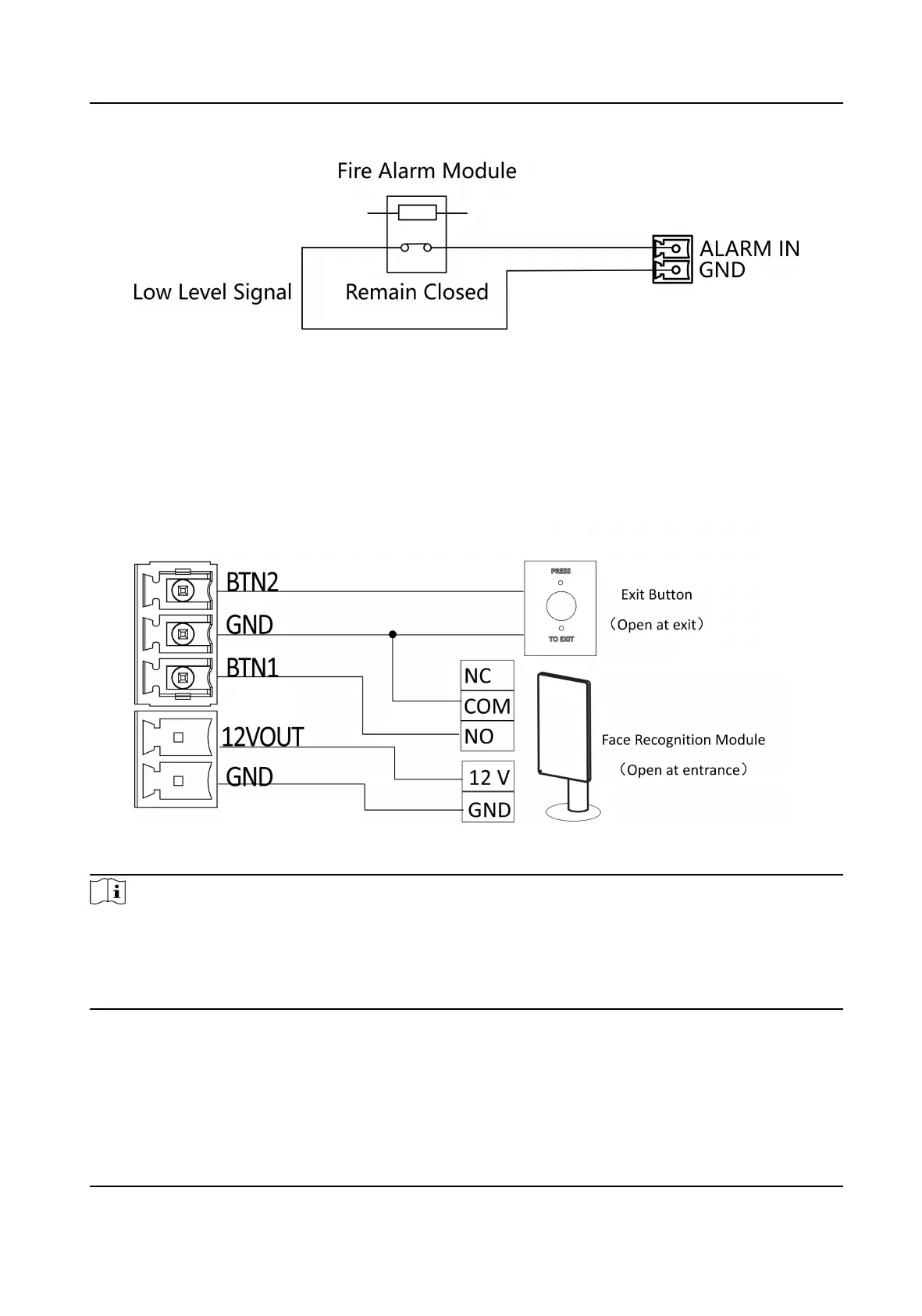

Figure 4-11 Exit Buon Wiring
Note
●
The face recognion devices are powered via 12 VDC power output interface of the main and
sub lane control board.
●
Barrier open at the entrance: connect to BTN1 and GND.
●
Barrier open at the exit: connect to BTN2 and GND.
4.5 Device Sengs via Buon
You can congure the device via buon on the lane control board.
DS-K3G200(L)X Series Tripod Turnsle
17
