Hill-Rom VersaCare Bed - Siderail Indicators and Adjustment; Line-of-Site Angle Indicators; Raising and Lowering Siderails

14 VersaCare® Bed User Manual (161956 REV 2)

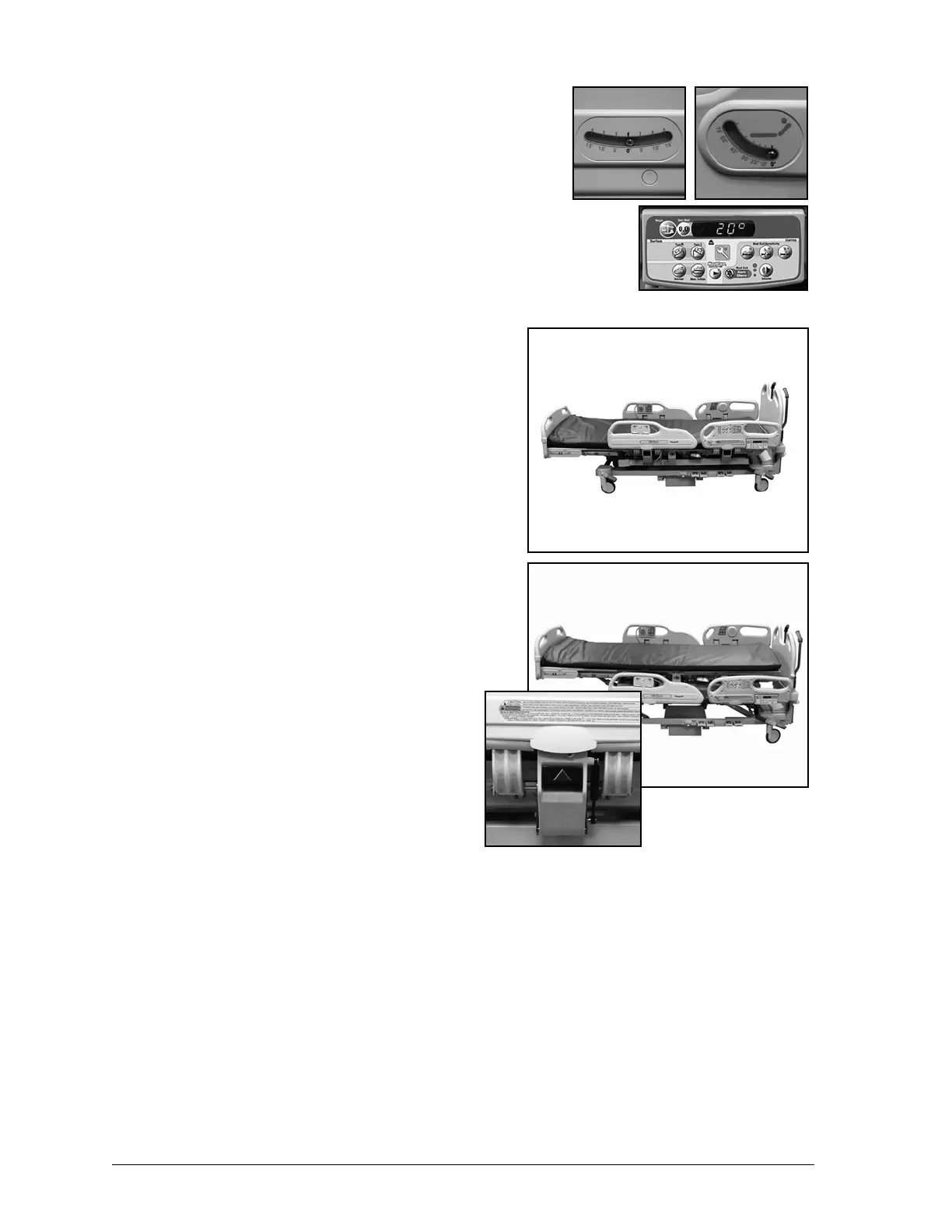

The head-end siderails contain the Line-of-Site® Head
Angle Indicators. The intermediate siderails contain the
Line-of-Site® Trendelenburg/Reverse Trendelenburg
Angle Indicators.
NOTE:
Some bed models with the caregiver pod do not have the
Line-of-Site® Head Angle Indicators. For those beds,
the head angle continuously shows on the digital display.
To Raise a Siderail
1. Pull the siderail up, and push it in until it
latches into the locked position. A click
will be heard when it latches into the
locked position.
2. Once the click is heard, gently pull on the
siderail to make sure it is latched properly.
To Lower a Siderail
Grasp the release handle and pull out.
The siderail automatically lowers
below the sleep surface perimeter.
