Installation MACH 1000
Release
04
12/2015
21

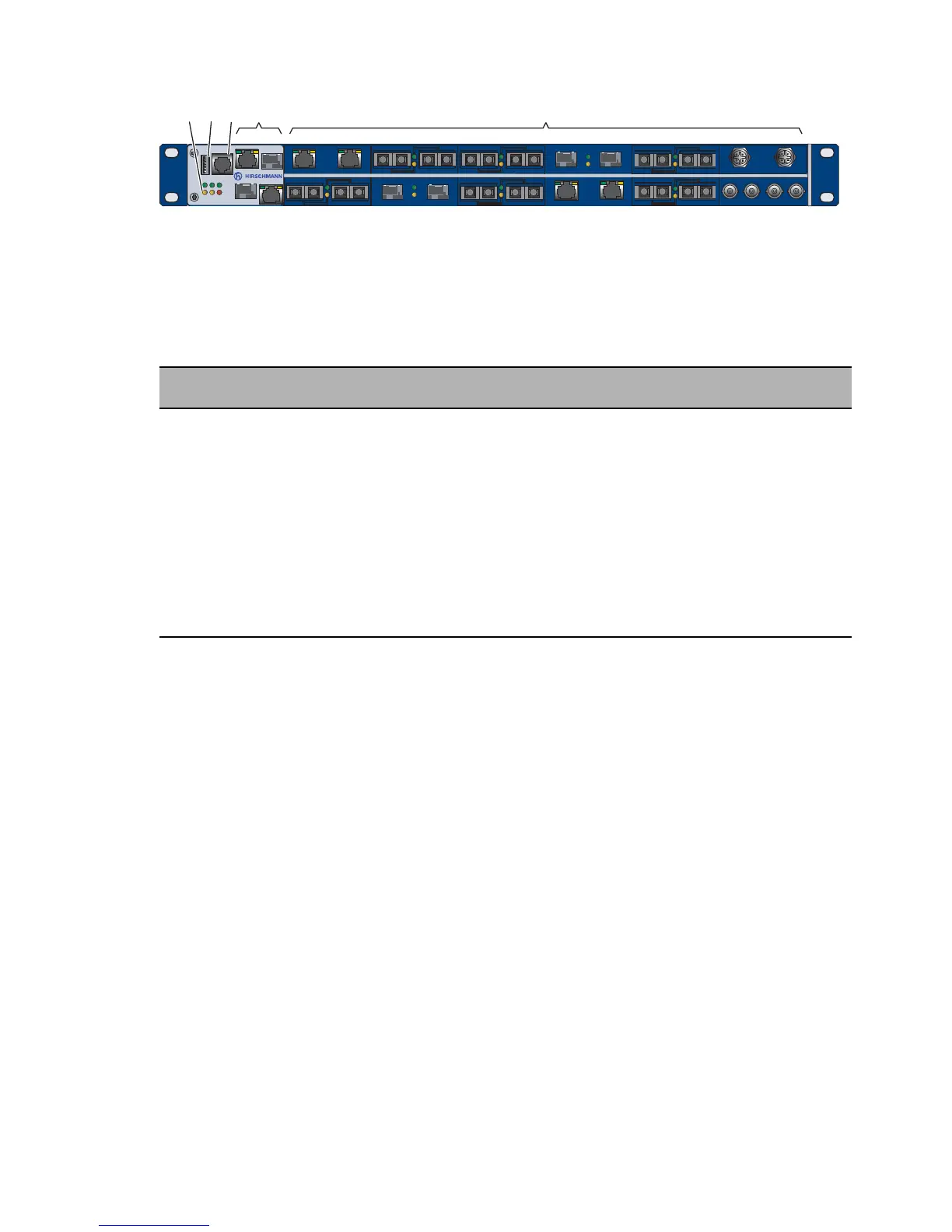

1.3.1 Front view of the MACH 1000 with 2 Gigabit ports
Figure 1: 1 - LED display elements
2 - USB interface
3 - V.24 connection for external management
4 - See following table, column 1
5 - See following table, column 2
Gigabit Ethernet
GE ports 1 and 2 (combo ports)
Fast Ethernet
FE ports 1 to 24, free choice of connections
100/1000 Mbit/s
Fiber optic, SFP slots
Alternative connections:
10/100/1000 Mbit/s
Twisted pair, RJ45 connections
99:
TT:
MM:
JJ:
NN:
VV:
UU:
LL:
GG:
ZZ:
RR:
FF:
Module position empty
2 * twisted pair TX, RJ45, 10/100 Mbit/s
2 * Multimode FX DSC 100 Mbit/s
2 * Multimode FX MTRJ 100 Mbit/s
2 * Multimode FX ST 100 Mbit/s
2 * Singlemode FX DSC 100 Mbit/s
2 * Singlemode FX ST 100 Mbit/s
2 * Singlemode Long Haul FX DSC 100 Mbit/s
2 * Singlemode Long Haul FX DSC 200 km 100 Mbit/s
2 * SFP slot 100 Mbit/s
2 * twisted pair TX, M12, 10/100 Mbit/s
2 * Multimode FL ST 10 Mbit/s
