24
Installation MACH 1000
Release
04
12/2015

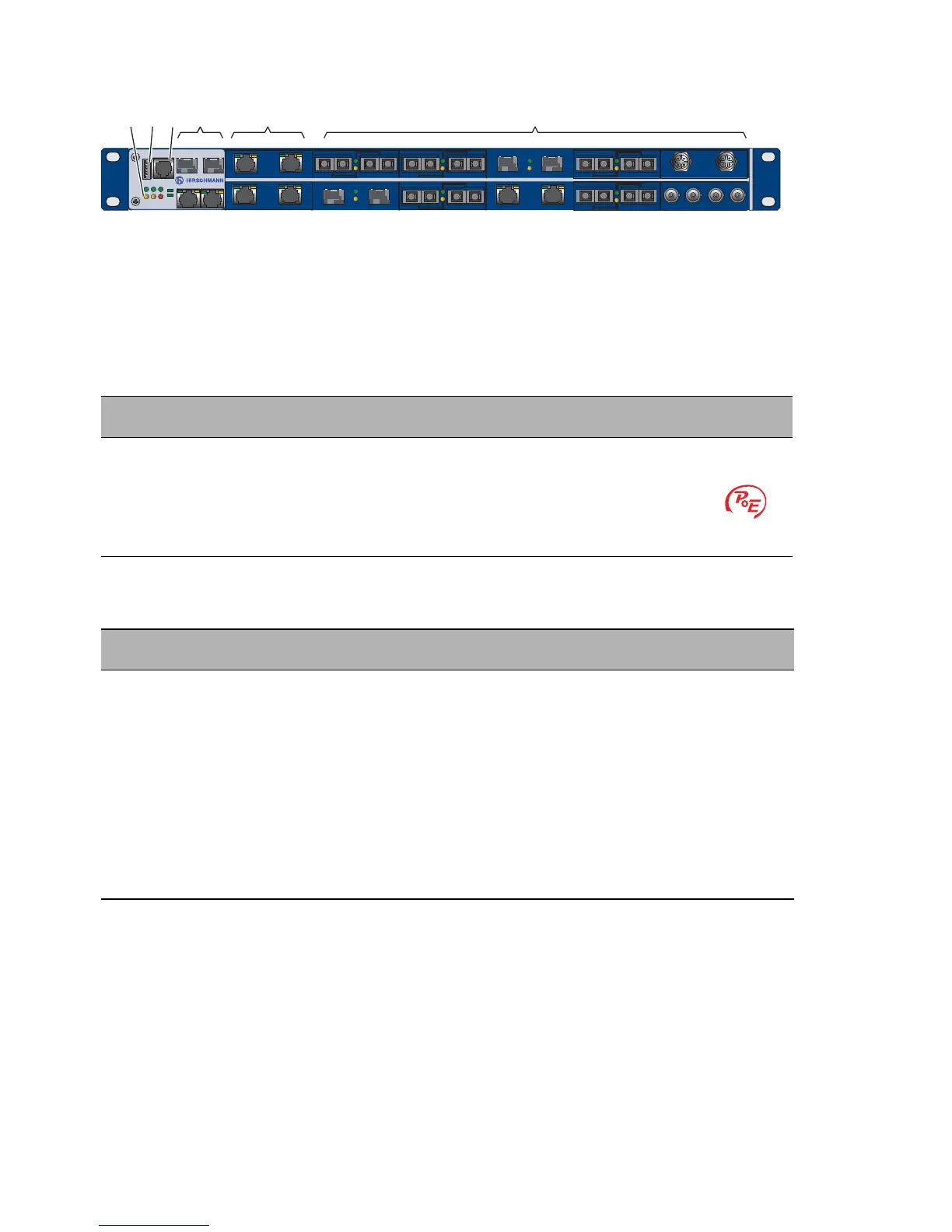

1.3.4 Front view of the MACH 1000 with PoE
Figure 4: 1 - LED display elements
2 - USB interface
3 - V.24 connection for external management
4 - See below table 2, column 1
5 - See below table 2, column 2
6 - See below table 3
Gigabit Ethernet
Up to 4 GE ports
Fast Ethernet
FE ports 1 to 4, Power over Ethernet
1000 Mbit/s
Fiber optic, SFP slots
And / or:
10/100/1000 Mbit/s
Twisted pair, RJ45 connections
TT:
RR:
2 * twisted pair TX, RJ45, 10/100 Mbit/s
2 * twisted pair TX, M12, 10/100 Mbit/s
Table 2: Gigabit Ethernet, Fast Ethernet FE ports 1 to 4
Fast Ethernet
FE ports 5 to 24, free choice of connections
99:
TT:
MM:
JJ:
NN:
VV:
UU:
LL:
GG:
ZZ:
RR:
FF:
Module position empty
2 * twisted pair TX, RJ45, 10/100 Mbit/s
2 * Multimode FX DSC 100 Mbit/s
2 * Multimode FX MTRJ 100 Mbit/s
2 * Multimode FX ST 100 Mbit/s
2 * Singlemode FX DSC 100 Mbit/s
2 * Singlemode FX ST 100 Mbit/s
2 * Singlemode Long Haul FX DSC 100 Mbit/s
2 * Singlemode Long Haul FX DSC 200 km 100 Mbit/s
2 * SFP slot 100 Mbit/s
2 * twisted pair TX, M12, 10/100 Mbit/s
2 * Multimode FL ST 10 Mbit/s
Table 3: Fast Ethernet, FE ports 5 to 24
