Hirschmann MACH 1030 User Manual

54
Installation MACH 1000
Release 04 12/2015

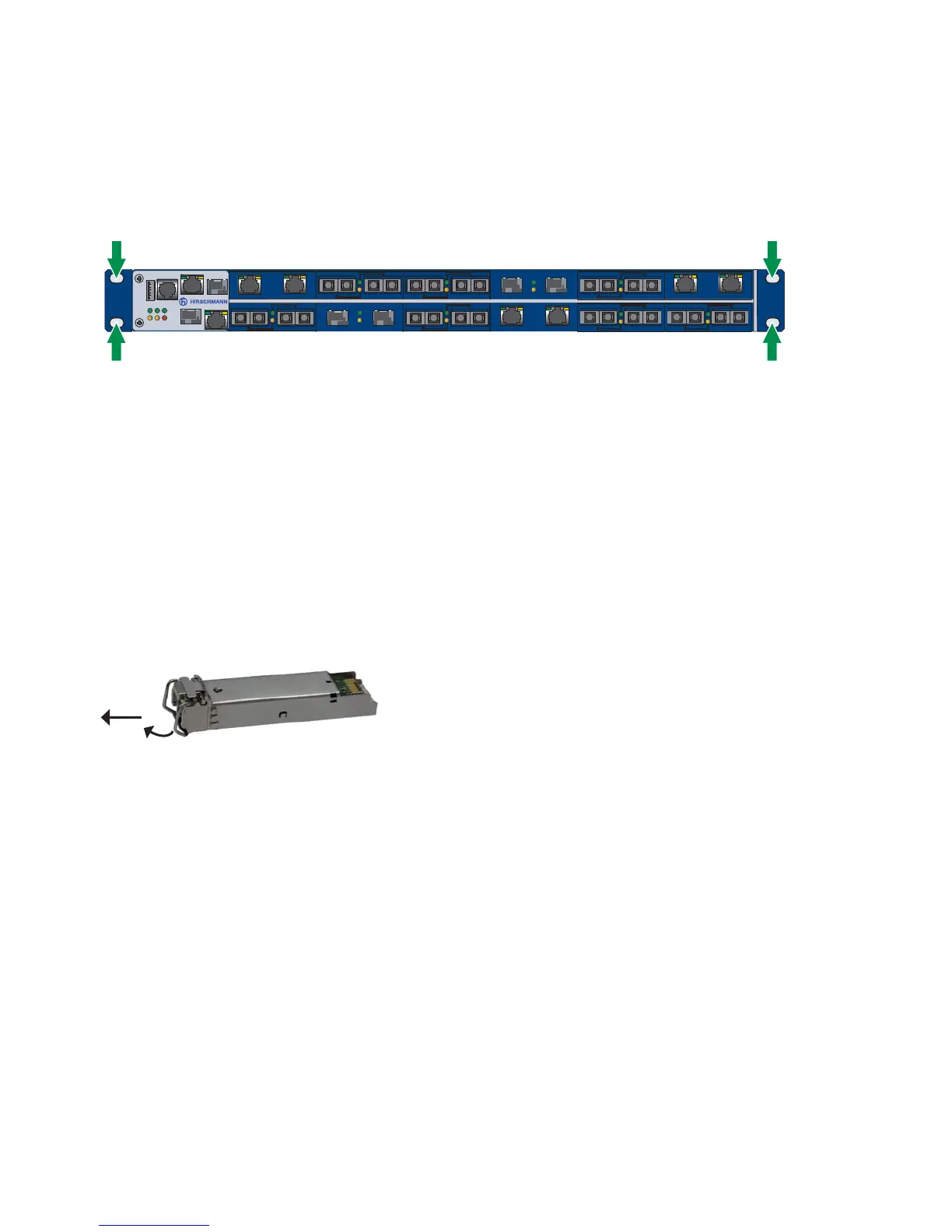

6 Disassembly
6.1 Removing the device
Proceed as follows:
 Disconnect the data cables.
 Disable the supply voltage.
 Disconnect the grounding.
 To detach the device from the switch cabinet or the wall, remove the
screws from the brackets on the device.
6.2 Removing an SFP transceiver (optional)
Proceed as follows:
 Pull the SFP transceiver out of the slot by means of the opened lock.
 Close the SFP transceiver with the protective cap.
USB
V.24
MACH 1000
P
StandByRM
FAULT
R1
R2
MACH 1000
1
2
