Hirschmann MACH 1030 User Manual

Installation MACH 1000
Release 04 12/2015
25
1.3.5 Views of the MACH 1000, ports in the back

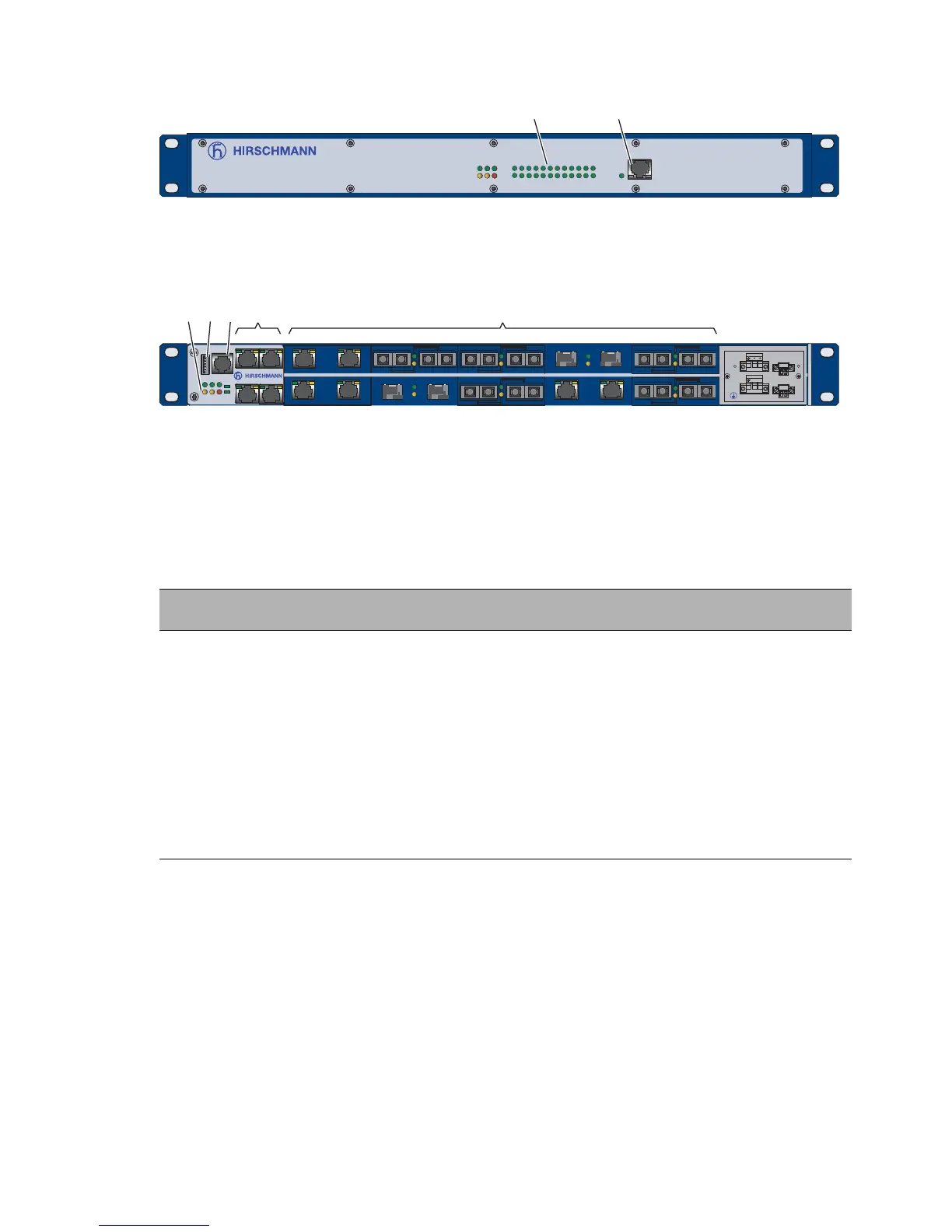

Figure 5: Front panel:
1 - LED display elements
2 - Diagnosis port
Figure 6: Rear panel:
1 - LED display elements
2 - USB interface
3 - V.24 connection for external management
4 - See following table, column 1
5 - See following table, column 2
Gigabit Ethernet
Up to 4 GE ports
Fast Ethernet
FE ports 1 to 20, free choice of connections
1000 Mbit/s
Fiber optic, SFP slots
And / or:
10/100/1000 Mbit/s
Twisted pair, RJ45 connections
99:
TT:
MM:
JJ:
NN:
VV:
UU:
LL:
GG:
ZZ:
RR:
FF:
Module position empty
2 * twisted pair TX, RJ45, 10/100 Mbit/s
2 * Multimode FX DSC 100 Mbit/s
2 * Multimode FX MTRJ 100 Mbit/s
2 * Multimode FX ST 100 Mbit/s
2 * Singlemode FX DSC 100 Mbit/s
2 * Singlemode FX ST 100 Mbit/s
2 * Singlemode Long Haul FX DSC 100 Mbit/s
2 * Singlemode Long Haul FX DSC 200 km 100 Mbit/s
2 * SFP slot 100 Mbit/s
2 * twisted pair TX, M12, 10/100 Mbit/s
2 * Multimode FL ST 10 Mbit/s
P
StandByRM
FAULT
R1
R2
ETHERNET Service Port
1
3
5
7
9
11
13
15
17
19
21
23
2
4
6
8
10
12
14
16
18
20
22
24
MACH 1000
12
USB
V.24
MACH 1000
2
1
P
StandByRM
FAULT
R1
R2
25
26
23
24
22
USB
V.24
P
StandByRM
FAULT
R1
R2
2
1
MACH 1000
21
12
453
-/N +/L
